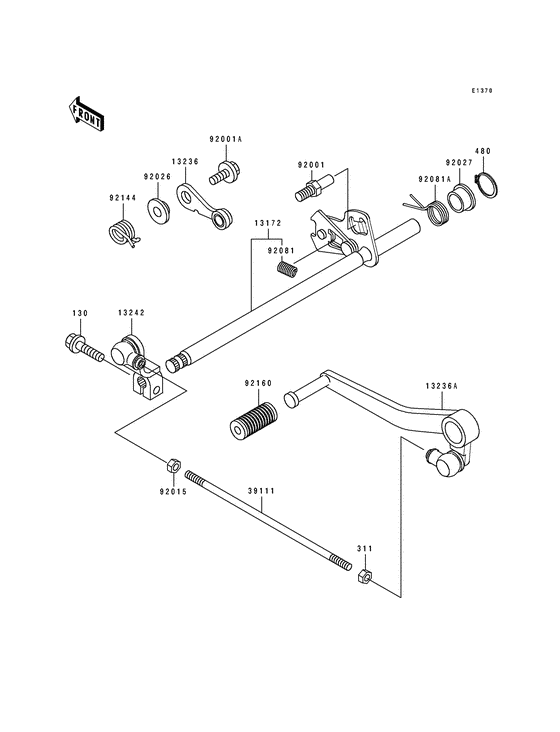

Gear change mechanism Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13172
|
13172
13172-1072
SHAFT-ASSY-CHANGE
|
13172-1072 |
— | ||
| replacement | |||||
|
13172
|
13172
13172-1092 SHAFT-ASSY-CHANGE |
13172-1092 |
from US $78.39 |
||
|
13236
|
13236
13236-1209 LEVER-COMP,NEUTRAL POLever-comp,neutral position; |
13236-1209 |
from US $14.41 |
||
|
13236A
|
13236A
13236-1211 LEVER-COMP,PEDALLever-comp,change pedal; |
13236-1211 |
from US $106.22 |
||
|
13242
|
13242
13242-1285
LEVER-ASSY-CHANGE,BOSS
Lever-assy-change,boss; |
13242-1285 |
— | ||
|
39111
|
39111
39111-1057 ROD-TIE |
39111-1057 |
US $9.29 |
||
| replacement | |||||
|
39111
|
39111
39111-1071 ROD-TIE |
39111-1071 |
from US $9.29 |
||
|
92001
|
92001
92001-1455 BOLT,EXCLUSIVE MASS PBolt,return spring; |
92001-1455 |
from US $2.85 |
||
|
92001A
|
92001A
92001-1516 BOLT,W/WASHER,6X12Bolt,w/washer,6x12; |
92001-1516 |
from US $3.01 |
||
|
92015
|
92015
92015-1178 NUT |
92015-1178 |
from US $3.37 |
||
|
92026
|
92026
92026-1217 SPACER |
92026-1217 |
from US $3.33 |
||
|
92027
|
92027
92027-1801 COLLAR,13X18X9Collar,l=10.6; |
92027-1801 |
from US $5.54 |
||
|
92081
|
92081
92081-1275 SPRING CHANGE LEVERSpring,change lever; |
92081-1275 |
from US $2.85 |
||
|
92081A
|
92081A
92081-1279 SPRING,CHANGE LEVER RSpring,change lever return; |
92081-1279 |
from US $4.12 |
||
|
92144
|
92144
92144-1478 SPRING,NEUTRAL POSITISpring,neutral position; |
92144-1478 |
from US $4.64 |
||
|
92160
|
92160
92160-1036
DAMPER,CHANGE PEDAL
Damper,change pedal; |
92160-1036 |
— | ||
| replacement | |||||
|
92160
|
92160
92161-2382 DAMPER,CHANGE PEDALDamper,change pedal; |
92161-2382 |
from US $2.88 |
||
|
130
|
130
130S0620 BOLT-FLANGED,6X20,BLCBolt-flanged,6x20,black; |
130S0620 |
from US $1.43 |
||
| replacement | |||||
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLCBolt-flanged,6x20,black; |
130CB0620 |
from US $1.11 |
||
|
311
|
311
311J0600 NUT-HEX,6MM |
311J0600 |
from US $0.95 |
||
| replacement | |||||
|
311
|
311
311BB0600 NUT-HEX,6MM |
311BB0600 |
from US $0.72 |
||
|
480
|
480
480J1300 CIRCLIP,13MMCirclip-type-c,13mm; |
480J1300 |
from US $1.11 |
||
