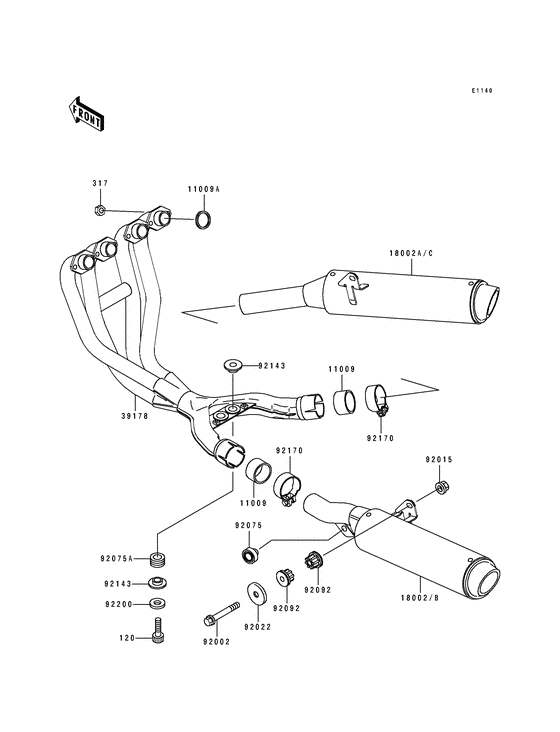

Muffler Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1680 GASKET,EXHAUST PIPE HGasket,exhaust pipe; |
11009-1680 |
US $21.04 |
||
| replacement | |||||
|
11009
|
11009
11060-1330 GASKET,EXHAUST PIPE HGasket,exhaust pipe; |
11060-1330 |
from US $24.09 |
||
|
11009A
|
11009A
11009-1856 GASKET,EXHAUST PIPE HOLDERGasket,exhaust pipe holder; |
11009-1856 |
from US $6.34 |
||
|
18002
|
18002
18002-1947 BODY-COMP-MUFFLER,LHBody-comp-muffler,lh; |
18002-1947 |
US $473.51 |
||
|
18002A
|
18002A
18002-1948 BODY-COMP-MUFFLER,RHBody-comp-muffler,rh; |
18002-1948 |
US $473.51 |
||
|
18002B
|
18002B
18002-1982
Body-comp-muffler,lh
Body-comp-muffler,lh; |
18002-1982 |
— | ||
| replacement | |||||
|
18002B
|
18002B
18090-1083
Body-comp-muffler,lh
Body-comp-muffler,lh; |
18090-1083 |
— | ||
|
18002C
|
18002C
18002-1983
Body-comp-muffler,rh
Body-comp-muffler,rh; |
18002-1983 |
— | ||
| replacement | |||||
|
18002C
|
18002C
18090-1084
Body-comp-muffler,rh
Body-comp-muffler,rh; |
18090-1084 |
— | ||
|
39178
|
39178
39178-1158 MANIFOLD-COMP-EXHAUST |
39178-1158 |
US $1,151.12 |
||
|
92002
|
92002
92002-1127 BOLT,10X55Bolt,10x55; |
92002-1127 |
from US $6.02 |
||
|
92015
|
92015
92015-1387 NUT,FLANGED,10MMNut,flanged,10mm; |
92015-1387 |
from US $2.69 |
||
|
92022
|
92022
92022-289 WASHER,PLAIN |
92022-289 |
from US $10.14 |
||
|
92075
|
92075
92075-015 DAMPER RUBB MAIN STAD |
92075-015 |
from US $3.17 |
||
|
92075A
|
92075A
92075-1621 DAMPER,MUFFLERDamper,muffler; |
92075-1621 |
from US $4.05 |
||
|
92092
|
92092
92092-1013 BUSHING-RUBBERBushing-rubber,muffler; |
92092-1013 |
from US $11.09 |
||
|
92143
|
92143
92143-1395 COLLAR |
92143-1395 |
from US $3.80 |
||
| replacement | |||||
|
92143
|
92143
92152-1272 COLLAR |
92152-1272 |
from US $3.96 |
||
|
92170
|
92170
92170-1154 CLAMP |
92170-1154 |
from US $19.64 |
||
|
92200
|
92200
92200-1042 WASHER,10.5X19X2.3Washer,10.5x19x2.3; |
92200-1042 |
from US $2.53 |
||
|
120
|
120
120P1035 BOLT-SOCKET,10X35Bolt-socket,10x35; |
120P1035 |
US $3.82 |
||
|
317
|
317
317J0800 NUT-HEX-SMALL,8MM,BLANut-hex-small,8mm,black; |
317J0800 |
from US $1.58 |
||
| replacement | |||||
|
317
|
317
317BB0800 NUT-HEX-SMALL,8MM,BLANut-hex-small,8mm,black; |
317BB0800 |
from US $0.94 |
||
