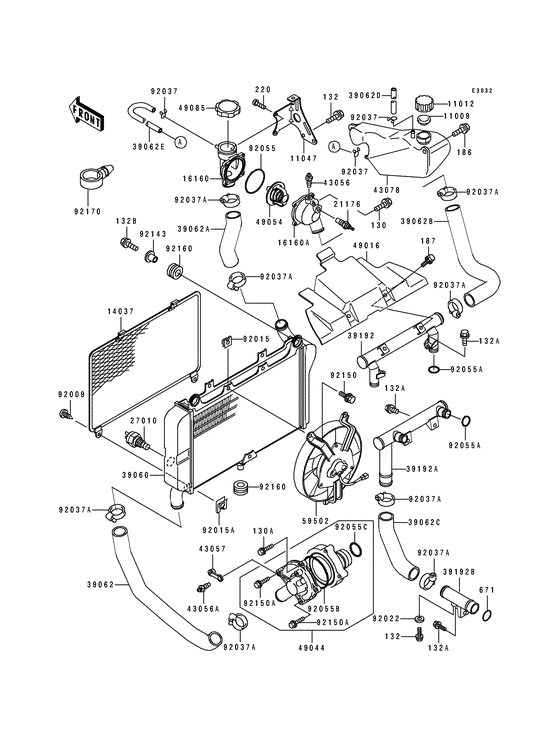

Radiator Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1145 GASKET,RESERVE TANKGasket,reservoir tank cap; |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANK |
11012-1084 |
from US $2.14 |
||
|
11047
|
11047
11046-1944 BRACKET,THERMO BODYBracket,thermo body; |
11046-1944 |
from US $8.57 |
||
|
14037
|
14037
14037-1129 SCREEN |
14037-1129 |
from US $67.36 |
||
|
16160
|
16160
16160-1116
CAP-ASSY
Body,thermostat,upp; |
16160-1116 |
— | ||
| replacement | |||||
|
16160
|
16160
14075-1068 CAP-ASSYBody,thermostat,upp; |
14075-1068 |
from US $125.22 |
||
|
16160A
|
16160A
16160-1117 BODY,THERMOSTAT,LWRBody,thermostat,lwr; |
16160-1117 |
from US $55.65 |
||
|
21176
|
21176
21176-1054 SENSOR,WATERSensor,water; |
21176-1054 |
from US $65.01 |
||
|
27010
|
27010
27010-1202 SWITCH,FANSwitch,fan; |
27010-1202 |
from US $70.46 |
||
|
39060
|
39060
39060-1095 Radiator |
39060-1095 |
from US $833.92 |
||
|
39062
|
39062
39062-1394 HOSE-COOLING,RADIATORHose-cooling,radiator-pump; |
39062-1394 |
US $56.40 |
||
|
39062A
|
39062A
39062-1395 HOSE-COOLING,RADIATORHose-cooling,radiator-cap; |
39062-1395 |
US $23.94 |
||
|
39062B
|
39062B
39062-1396 HOSE-COOLING,THERMO-HHose-cooling,thermo-head; |
39062-1396 |
US $45.93 |
||
|
39062C
|
39062C
39062-1397 HOSE-COOLING,PUMP-CYLHose-cooling,pump-cylinder; |
39062-1397 |
US $36.05 |
||
| replacement | |||||
|
39062C
|
39062C
39062-1546 HOSE-COOLING,PUMP-CYLHose-cooling,pump-cylinder; |
39062-1546 |
from US $30.07 |
||
|
39062D
|
39062D
39062-1418 HOSE-COOLING,5.5X10.5Hose-cooling,5.5x10.5x350; |
39062-1418 |
US $29.25 |
||
| replacement | |||||
|
39062D
|
39062D
39062-0080 HOSE-COOLING,5.5X10.5Hose-cooling,5.5x10.5x350; |
39062-0080 |
from US $25.50 |
||
|
39062E
|
39062E
39062-1422 HOSE-COOLING,CAP-RESEHose-cooling,cap-reservoir; |
39062-1422 |
US $12.49 |
||
| replacement | |||||
|
39062E
|
39062E
39062-1429 HOSE-COOLING,CAP-RESEHose-cooling,cap-reservoir; |
39062-1429 |
from US $12.49 |
||
|
39192
|
39192
39192-1032 PIPE-WATER |
39192-1032 |
US $113.51 |
||
| replacement | |||||
|
39192
|
39192
39192-1039 PIPE-WATER |
39192-1039 |
US $95.89 |
||
|
39192A
|
39192A
39192-1033 PIPE-WATER |
39192-1033 |
from US $111.30 |
||
|
39192B
|
39192B
39192-1034 PIPE-WATER |
39192-1034 |
from US $41.44 |
||
|
43056
|
43056
43056-003
BLEEDER SET
|
43056-003 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $21.90 |
||
|
43056A
|
43056A
43056-1051 BREATHER-BRAKE |
43056-1051 |
from US $12.04 |
||
|
43057
|
43057
43057-1001 CAP-BREATHER |
43057-1001 |
from US $3.48 |
||
|
43078
|
43078
43078-1109 RESERVOIR |
43078-1109 |
from US $51.39 |
||
|
49016
|
49016
49016-1154 COVER-SEAL |
49016-1154 |
from US $25.83 |
||
|
49044
|
49044
49044-1067 PUMP-WATER |
49044-1067 |
US $300.83 |
||
| replacement | |||||
|
49044
|
49044
49044-1087 WATER PUMP |
49044-1087 |
from US $264.53 |
||
|
49054
|
49054
49054-1051
THERMOSTAT
|
49054-1051 |
— | ||
| replacement | |||||
|
49054
|
49054
49054-0003 THERMOSTAT |
49054-0003 |
from US $45.63 |
||
|
49085
|
49085
49085-1054
CAP-ASSY-PRESSURE
|
49085-1054 |
— | ||
| replacement | |||||
|
49085
|
49085
49085-1067 PRESSURE CAP-ASSY |
49085-1067 |
from US $47.30 |
||
|
59502
|
59502
59502-1089 FAN-ASSY |
59502-1089 |
US $525.17 |
||
| replacement | |||||
|
59502
|
59502
59502-1094 FAN-ASSY |
59502-1094 |
from US $708.58 |
||
|
92009
|
92009
92009-1261 SCREW,TAPPING,6X12Screw,tapping,6mm; |
92009-1261 |
from US $3.17 |
||
| replacement | |||||
|
92009
|
92009
92172-0003 SCREW,TAPPING,6X12Screw,tapping,6mm; |
92172-0003 |
from US $1.27 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $4.25 |
||
|
92015A
|
92015A
92015-1758 NUTNut,6mm; |
92015-1758 |
from US $4.28 |
||
|
92022
|
92022
92022-304 WASHER,PLAINWasher,6.2x11x1; |
92022-304 |
from US $2.53 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERClamp,tube; |
92037-147 |
from US $4.95 |
||
|
92037A
|
92037A
92037-1985
Clamp,cooling hose
Clamp,cooling hose; |
92037-1985 |
— | ||
| replacement | |||||
|
92037A
|
92037A
92171-0179 CLAMPClamp,cooling hose; |
92171-0179 |
from US $6.49 |
||
|
92055
|
92055
92055-112 O-RING,53.5MMRing-o,53.5x2.6; |
92055-112 |
from US $4.80 |
||
|
92055A
|
92055A
92055-1282 RING-O,16MM |
92055-1282 |
from US $4.09 |
||
|
92055B
|
92055B
92055-1423 RING-O,WATER PUMP INSRing-o,water pump inside; |
92055-1423 |
from US $9.35 |
||
|
92055C
|
92055C
92055-1424 RING-O,33.2X2.4Ring-o,33.2x2.4; |
92055-1424 |
from US $3.48 |
||
|
92143
|
92143
92143-1411 COLLAR |
92143-1411 |
from US $7.92 |
||
| replacement | |||||
|
92143
|
92143
92143-1450 COLLAR |
92143-1450 |
from US $6.65 |
||
|
92150
|
92150
92150-1186 BOLT,6X12Bolt,6x12; |
92150-1186 |
from US $2.85 |
||
|
92150A
|
92150A
92150-1379 BOLTBolt,6x22; |
92150-1379 |
from US $3.38 |
||
|
92160
|
92160
92160-1007 DAMPER |
92160-1007 |
from US $4.09 |
||
|
92170
|
92170
92170-1067 CLAMP,HOSEClamp,hose; |
92170-1067 |
from US $5.07 |
||
|
130
|
130
130G0612
BOLT-FLANGED,6X12
Bolt-flanged,6x12; |
130G0612 |
— | ||
| replacement | |||||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12Bolt-flanged,6x12; |
130BA0612 |
from US $0.79 |
||
|
130A
|
130A
130G0640
BOLT-FLANGED,6X40
Bolt-flanged,6x40; |
130G0640 |
— | ||
| replacement | |||||
|
130A
|
130A
130BA0640 BOLT-FLANGED,6X40Bolt-flanged,6x40; |
130BA0640 |
from US $0.79 |
||
|
132
|
132
132J0610
BOLT-FLANGED-SMALL,6X
Bolt-flanged-small,6x10; |
132J0610 |
— | ||
| replacement | |||||
|
132
|
132
132BB0610 BOLT-FLANGED-SMALL,6XBolt-flanged-small,6x10; |
132BB0610 |
from US $1.11 |
||
|
132A
|
132A
132J0612
BOLT-FLANGED-SMALL,6X
|
132J0612 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
132B
|
132B
132J0830 BOLT-FLANGED-SMALL |
132J0830 |
from US $1.74 |
||
| replacement | |||||
|
132B
|
132B
132BB0830 BOLT-FLANGED-SMALL |
132BB0830 |
from US $1.27 |
||
|
186
|
186
186H0614 BOLT-UPSET-WP |
186H0614 |
from US $1.74 |
||
|
187
|
187
187G0612 BOLT-UPSET-WSP |
187G0612 |
from US $1.43 |
||
|
220
|
220
220D0514 SCREW-PAN-CROS |
220D0514 |
from US $0.79 |
||
| replacement | |||||
|
220
|
220
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
671
|
671
671B2525 O-RING,25MMO ring,25mm; |
671B2525 |
from US $3.73 |
||
