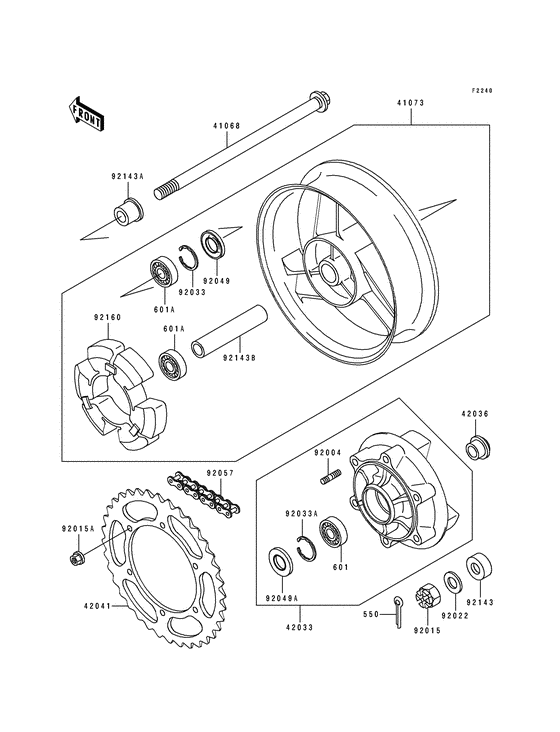

Rear hub Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41068
|
41068
41068-1314 AXLE,RRAxle,rr; |
41068-1314 |
from US $135.68 |
||
|
41073
|
41073
41073-1468-GE Wheel-assy,rr,g.grayWheel-assy,rr,g.gray; |
41073-1468-GE |
US $931.54 |
||
| replacement | |||||
|
41073
|
41073
41073-1535-GE WHEEL-ASSY,RR,G.GRAYWheel-assy,rr,g.gray; |
41073-1535-GE |
US $1,078.34 |
||
|
42033
|
42033
42033-1142-GD COUPLING-ASSY,RR HUB,Coupling-assy,rr hub,g.gray; |
42033-1142-GD |
US $193.07 |
||
| replacement | |||||
|
42033
|
42033
42033-1211-GD COUPLING-ASSY,RR HUB,Coupling-assy,rr hub,g.gray; |
42033-1211-GD |
from US $190.21 |
||
|
42036
|
42036
42036-1233 SLEEVE,RR AXLE,L=22Sleeve,rr axle,l=22; |
42036-1233 |
from US $16.79 |
||
|
42041
|
42041
42041-1361 SPROCKET-HUBSprocket-hub,45t; |
42041-1361 |
US $81.47 |
||
|
92004
|
92004
92004-1151 STUD,10X19Stud,10x19.5; |
92004-1151 |
US $7.60 |
||
| replacement | |||||
|
92004
|
92004
92004-0028 STUD,10X19Stud,10x19.5; |
92004-0028 |
from US $4.75 |
||
|
92015
|
92015
42045014 NUTNut,castle,16mm; |
42045014 |
US $8.41 |
||
| replacement | |||||
|
92015
|
92015
92015-1947 NUTNut,castle,16mm; |
92015-1947 |
from US $6.34 |
||
|
92015A
|
92015A
92015-1720 NUT,10MMNut,10mm; |
92015-1720 |
US $3.49 |
||
| replacement | |||||
|
92015A
|
92015A
92210-1258 NUT,10MMNut,10mm; |
92210-1258 |
from US $3.48 |
||
|
92022
|
92022
42046009 WASHER SLEEVEWasher,17.3x32x3.2; |
42046009 |
from US $5.54 |
||
|
92033
|
92033
92033-1042 CIRCLIP,47M/MRing-snap,47mm; |
92033-1042 |
from US $3.48 |
||
|
92033A
|
92033A
92033-1043 RING,SNAP,52 M/MRing-snap,52mm; |
92033-1043 |
from US $5.54 |
||
|
92049
|
92049
92049-1056 OIL SEAL,AG1556EOSeal-oil,bjn28475; |
92049-1056 |
from US $8.24 |
||
|
92049A
|
92049A
92052-006 SEAL-OILSeal-oil,twc35527; |
92052-006 |
US $14.41 |
||
| replacement | |||||
|
92049A
|
92049A
92049-1287 SEAL-OILSeal-oil,twc35527; |
92049-1287 |
from US $8.24 |
||
|
92057
|
92057
92057-1221 DR CHAIN,EK50MV 110LChain,drive,ek50mv-ox110l; |
92057-1221 |
from US $252.65 |
||
|
92143
|
92143
92143-1209 COLLAR,RR AXLE,L=14.5Collar,rr axle,l=14.5; |
92143-1209 |
from US $15.30 |
||
|
92143A
|
92143A
92143-1210
COLLAR,RR AXLE,L=26
Collar,rr axle,l=26; |
92143-1210 |
— | ||
|
92143B
|
92143B
92143-1393 COLLAR,RR HUB,L=125Collar,rr hub,l=125; |
92143-1393 |
US $14.73 |
||
|
92160
|
92160
92160-1229 Damper,shock,rr hubDamper,shock,rr hub; |
92160-1229 |
US $70.40 |
||
| replacement | |||||
|
92160
|
92160
92160-5001 DAMPER,SHOCK,RR HUBDamper,shock,rr hub; |
92160-5001 |
from US $74.88 |
||
|
550
|
550
550D4035 PIN-COTTER,4.0X35Pin-cotter,4.0x35; |
550D4035 |
US $1.27 |
||
| replacement | |||||
|
550
|
550
550AA4035 PIN-COTTER,4.0X35Pin-cotter,4.0x35; |
550AA4035 |
from US $0.91 |
||
|
601
|
601
601B6205G BEARING BALL #6205Bearing-ball,#6205g; |
601B6205G |
from US $12.36 |
||
| replacement | |||||
|
601
|
601
601B6205 BEARING BALL #6205Bearing-ball,#6205g; |
601B6205 |
from US $13.81 |
||
|
601A
|
601A
601B6303ZZ BRG,BALL,#6303ZZC3Bearing-ball,#6303zzc3; |
601B6303ZZ |
from US $29.92 |
||
