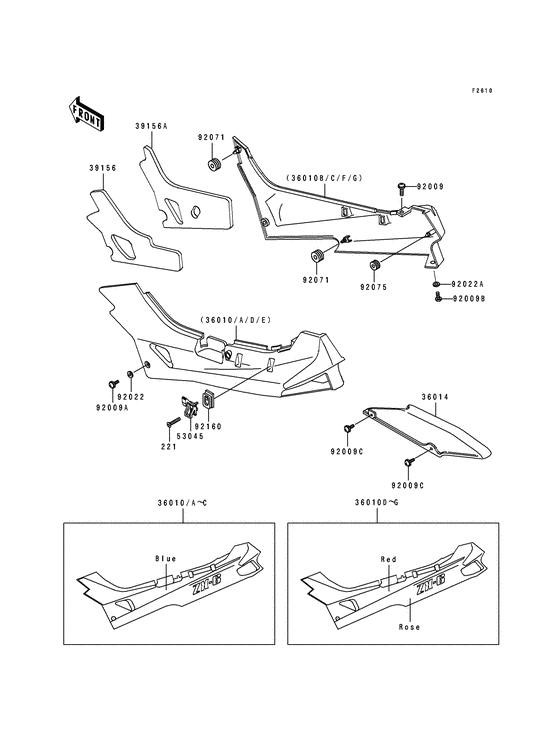

Side cover/chain case Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1990
- Model code
- ZX600-D1
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36010
|
36010
36010-5368-GX
Cover-side
Cover-side,lh,blue/blue; |
36010-5368-GX |
— | ||
|
36010A
|
36010A
36010-5368-HK COVER-SIDE.LH.BLUE/BLCover-side,lh,blue/blue; |
36010-5368-HK |
US $237.71 |
||
|
36010B
|
36010B
36010-5369-GX
Cover-side
Cover-side,rh,blue/blue; |
36010-5369-GX |
— | ||
|
36010C
|
36010C
36010-5369-HK COVER-SIDE.RH.BLUE/BLCover-side,rh,blue/blue; |
36010-5369-HK |
US $237.71 |
||
|
36010D
|
36010D
36010-5370-HF
Cover-side
Cover-side,lh,red/rose opera; |
36010-5370-HF |
— | ||
|
36010E
|
36010E
36010-5370-HP COVER-SIDE LHRED/ROSECover-side,lh,red/rose opera; |
36010-5370-HP |
US $237.71 |
||
|
36010F
|
36010F
36010-5371-HF
Cover-side
Cover-side,rh,red/rose opera; |
36010-5371-HF |
— | ||
|
36010G
|
36010G
36010-5371-HP COVER-SIDE RHRED/ROSECover-side,rh,red/rose opera; |
36010-5371-HP |
US $237.71 |
||
|
36014
|
36014
36014-1164 CASE-CHAIN |
36014-1164 |
from US $79.89 |
||
|
39156
|
39156
39156-1202 PAD,SIDE COVER,LHPad,side cover,lh; |
39156-1202 |
from US $30.13 |
||
|
39156A
|
39156A
39156-1203 PAD,SIDE COVER,RHPad,side cover,rh; |
39156-1203 |
from US $30.13 |
||
|
53045
|
53045
53045-1053 HOOK-ASSY,TOOL BOXHook-assy,tool box; |
53045-1053 |
from US $29.47 |
||
|
92009
|
92009
92009-1181
SCREW,6X18
Screw,6x18,black; |
92009-1181 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0002 SCREW,6X18Screw,6x18,black; |
92172-0002 |
from US $1.27 |
||
|
92009A
|
92009A
92009-1288
SCREW
Screw,6x14; |
92009-1288 |
— | ||
| replacements | |||||
|
92009A
|
92009A
92009-1662 SCREWScrew,6x14; |
92009-1662 |
from US $2.53 |
||
|
92009A
|
92009A
92172-0004 SCREW,6X14Screw,6x14; |
92172-0004 |
from US $1.27 |
||
|
92009B
|
92009B
92009-1301 SCREWScrew,5x16,black; |
92009-1301 |
US $3.92 |
||
| replacement | |||||
|
92009B
|
92009B
92009-1654 SCREWScrew,5x16,black; |
92009-1654 |
from US $2.53 |
||
|
92009C
|
92009C
92009-1402
SCREW, 6X10
Screw,6x10; |
92009-1402 |
— | ||
| replacement | |||||
|
92009C
|
92009C
92172-0005 SCREW, 6X10Screw,6x10; |
92172-0005 |
US $2.99 |
||
|
92022
|
92022
92022-1143 WASHER,PLAIN,6.5X16X1Washer,6.5x16x1; |
92022-1143 |
from US $2.53 |
||
|
92022A
|
92022A
92022-1521 WASHER,NYLON,5.3X11.5Washer,nylon,5.3x11.5x1.5; |
92022-1521 |
from US $2.53 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92075
|
92075
92075-1629 DAMPER |
92075-1629 |
from US $3.90 |
||
|
92160
|
92160
92160-1042 DAMPER,ROPE HOOKDamper,rope hook; |
92160-1042 |
from US $3.96 |
||
|
221
|
221
221E0625 SCREW-CSK-CROS |
221E0625 |
from US $0.95 |
||
