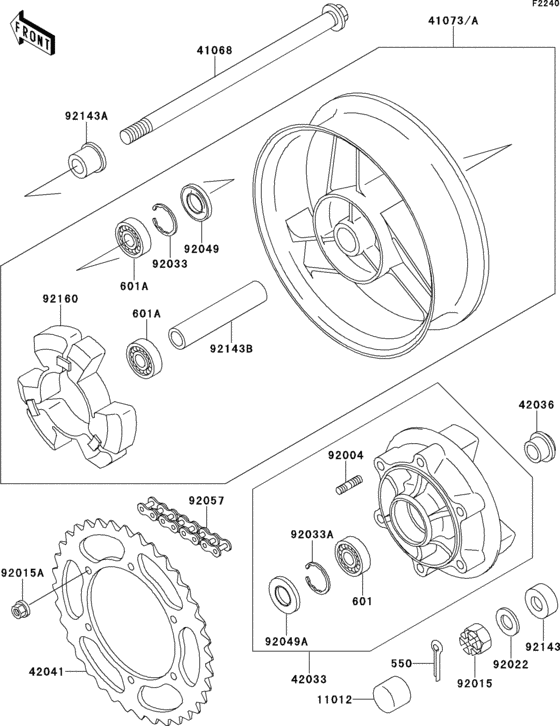

Rear hub Diagram Kawasaki ZX600 ZZ-R600
- Year
- 1992
- Model code
- ZX600-D3
- Sales region
- Sweden
- Engine Capacity
- 600
- Frame
- ZX600D 602501 - 999999
- Model
- ZZ-R600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550AA4035 PIN-COTTER,4.0X35 |
550AA4035 |
from US $0.91 |
||
|
601
|
601
601B6205 BEARING BALL #6205 |
601B6205 |
from US $13.81 |
||
|
601A
|
601A
601B6303ZZ BRG,BALL,#6303ZZC3 |
601B6303ZZ |
from US $29.92 |
||
|
41068
|
41068
41068-1314 AXLE,RR |
41068-1314 |
from US $135.68 |
||
|
41073
|
41073
41073-1535-GE WHEEL-ASSY,RR,G.GRAY |
41073-1535-GE |
US $1,078.34 |
||
|
41073A
|
41073A
41073-1484-X4
Wheel-assy,rr,f.red
|
41073-1484-X4 |
— | ||
|
42033
|
42033
42033-1211-GD COUPLING-ASSY,RR HUB, |
42033-1211-GD |
from US $190.21 |
||
|
42036
|
42036
42036-1233 SLEEVE,RR AXLE,L=22 |
42036-1233 |
from US $16.79 |
||
|
42041
|
42041
42041-1361 SPROCKET-HUB |
42041-1361 |
US $81.47 |
||
|
92004
|
92004
92004-0028 STUD,10X19 |
92004-0028 |
from US $4.75 |
||
|
92015
|
92015
92015-1947 NUT |
92015-1947 |
from US $6.34 |
||
|
92015A
|
92015A
92210-1258 NUT,10MM |
92210-1258 |
from US $3.48 |
||
|
92022
|
92022
42046009 WASHER SLEEVE |
42046009 |
from US $5.54 |
||
|
92033
|
92033
92033-1042 CIRCLIP,47M/M |
92033-1042 |
from US $3.48 |
||
|
92033A
|
92033A
92033-1043 RING,SNAP,52 M/M |
92033-1043 |
from US $5.54 |
||
|
92049
|
92049
92049-1056 OIL SEAL,AG1556EO |
92049-1056 |
from US $8.24 |
||
|
92049A
|
92049A
92049-1287 SEAL-OIL |
92049-1287 |
from US $8.24 |
||
|
92057
|
92057
92057-1221 DR CHAIN,EK50MV 110L |
92057-1221 |
from US $252.65 |
||
|
92143
|
92143
92143-1209 COLLAR,RR AXLE,L=14.5 |
92143-1209 |
from US $15.30 |
||
|
92143A
|
92143A
92143-1210
COLLAR,RR AXLE,L=26
|
92143-1210 |
— | ||
|
92143B
|
92143B
92143-1393 COLLAR,RR HUB,L=125 |
92143-1393 |
US $14.73 |
||
|
92160
|
92160
92160-5001 DAMPER,SHOCK,RR HUB |
92160-5001 |
from US $74.88 |
