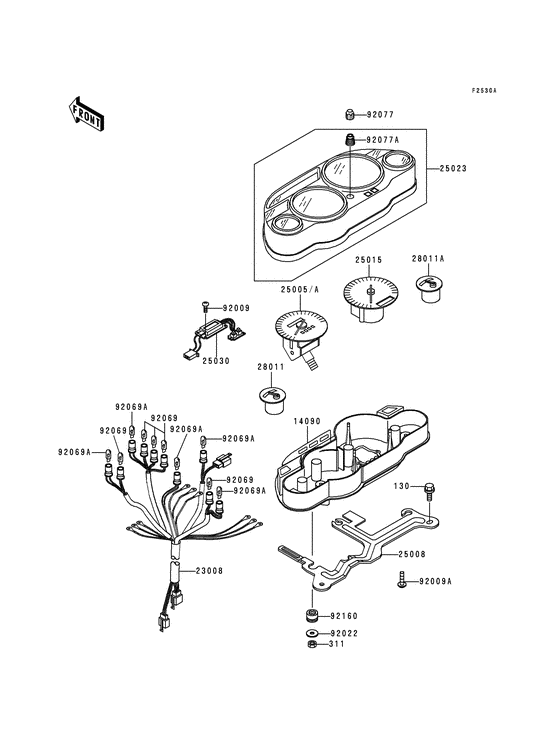

Meter (S; zx600-e5/e6) Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 1993
- Model code
- ZX600-D4
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14,black; |
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14,black; |
130BB0614 |
from US $1.11 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
Nut-hex,6mm; |
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MMNut-hex,6mm; |
311AA0600 |
from US $0.63 |
||
|
14090
|
14090
14090-1554 COVER,METER HOUSINGCover,meter housing; |
14090-1554 |
from US $103.46 |
||
|
23008
|
23008
23008-1543 SOCKET-ASSY,METERSocket-assy,meter; |
23008-1543 |
from US $130.30 |
||
|
25005
|
25005
25005-1612
Speedometer,kph
Speedometer,kph; |
25005-1612 |
— | ||
| replacement | |||||
|
25005
|
25005
25005-1714 Speedometer,kphSpeedometer,kph; |
25005-1714 |
US $322.86 |
||
|
25005A
|
25005A
25005-1613 SPEEDOMETER, MPHSpeedometer,mph; |
25005-1613 |
US $369.99 |
||
| replacement | |||||
|
25005A
|
25005A
25005-1728 SPEEDOMETER, MPHSpeedometer,mph; |
25005-1728 |
from US $322.86 |
||
|
25008
|
25008
25008-1195 BRACKET-METER |
25008-1195 |
from US $63.73 |
||
|
25015
|
25015
25015-1342 TACHOMETER,X1000R/MINTachometer,x1000r/min; |
25015-1342 |
from US $391.07 |
||
|
25023
|
25023
25023-1219 Cover-meter case,uppCover-meter case,upp; |
25023-1219 |
from US $138.84 |
||
|
25030
|
25030
25030-1003 CLOCK,DEGITALClock,digital; |
25030-1003 |
from US $405.11 |
||
|
28011
|
28011
28011-1131 METER,FUELMeter,fuel; |
28011-1131 |
from US $118.78 |
||
|
28011A
|
28011A
28011-1132 METER,TEMPMeter,temp; |
28011-1132 |
from US $105.98 |
||
|
92009
|
92009
92009-1255 SCREW,TAPPING,3X12Screw,tapping,3x12; |
92009-1255 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1503 SCREW,TAPPING,4X14Screw,tapping,4x14; |
92009-1503 |
from US $2.53 |
||
|
92022
|
92022
92022-1369 WASHER,6.2X18X1.2Washer,6.2x18x1.2; |
92022-1369 |
from US $2.69 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4WBulb,12v 3.4w; |
92069-1007 |
from US $3.33 |
||
|
92069A
|
92069A
92069-1059 BULB,12V 1.7WBulb,12v 1.7w; |
92069-1059 |
from US $3.33 |
||
|
92077
|
92077
92077-1094 KNOB,TRIP RESET KNOBKnob,trip reset; |
92077-1094 |
from US $6.65 |
||
|
92077A
|
92077A
92077-1112 KNOB,TRIP RESETKnob,trip reset; |
92077-1112 |
US $5.86 |
||
|
92160
|
92160
92160-1436 DAMPER |
92160-1436 |
from US $6.18 |
||
