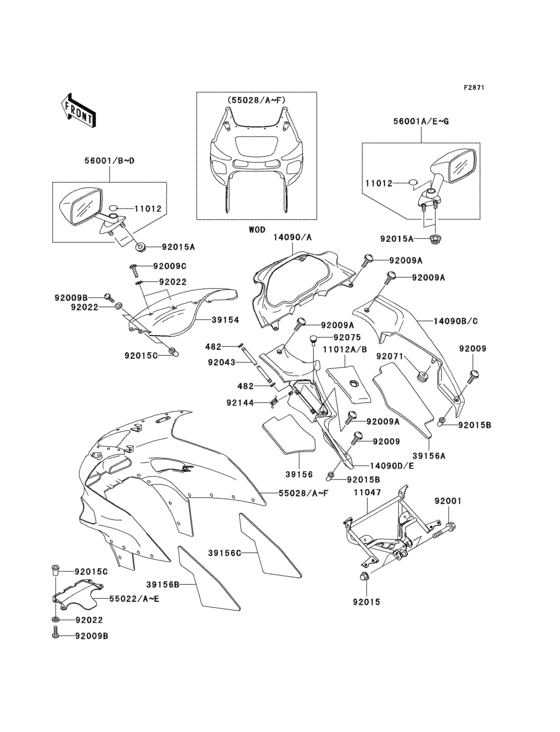

Cowling(1/2) Diagram Kawasaki ZX600 Ninja ZX-6
- Year
- 2005
- Colour
- Galaxy Silver Type 2 (474)
- Model code
- ZX600-E13
- Sales region
- Canada
- Engine Capacity
- 600
- Model
- Ninja ZX-6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
482
|
482
482L3000 CIRCLIP-TYPE-E,3MM |
482L3000 |
from US $0.99 |
||
| replacement | |||||
|
482
|
482
482EA3000 CIRCLIP-TYPE-E,3MM |
482EA3000 |
from US $1.09 |
||
|
11012
|
11012
11012-1751-6Z CAP,MIRROR,BLACK |
11012-1751-6Z |
from US $3.80 |
||
|
11012A
|
11012A
11012-1862-C4 Cap,inner cowl cov,lh |
11012-1862-C4 |
US $31.72 |
||
|
11047
|
11047
11047-1935 BRACKET,UPP COWLING |
11047-1935 |
from US $210.54 |
||
|
14090
|
14090
14090-1289-C4 Cover,inner cowl,cnt, |
14090-1289-C4 |
US $63.43 |
||
|
14090B
|
14090B
14090-1291-C4 Cover,inner cowl,rh,g |
14090-1291-C4 |
from US $63.36 |
||
|
14090D
|
14090D
14090-1358-C4 Cover,inner cowl,lh,g |
14090-1358-C4 |
US $149.60 |
||
|
39154
|
39154
39154-1121 WINDSHIELD |
39154-1121 |
US $318.89 |
||
|
39156
|
39156
39156-1663 PAD,INNER COWLING,LH |
39156-1663 |
from US $8.32 |
||
|
39156A
|
39156A
39156-1664 PAD,INNER COWLING,RH |
39156-1664 |
from US $12.36 |
||
|
39156B
|
39156B
39156-1665 PAD,UPP COWLING,LH |
39156-1665 |
from US $10.33 |
||
|
39156C
|
39156C
39156-1666 PAD,UPP COWLING,RH |
39156-1666 |
from US $10.33 |
||
|
55022E
|
55022E
55022-1084-474 Cover-head lamp,g.silver |
55022-1084-474 |
US $50.27 |
||
|
55028F
|
55028F
55028-1369-474 Cowling,upp,g.silver |
55028-1369-474 |
US $874.10 |
||
|
56001
|
56001
56001-0003 MIRROR-ASSY,LH |
56001-0003 |
from US $139.13 |
||
|
56001A
|
56001A
56001-0004 MIRROR-ASSY,RH |
56001-0004 |
from US $139.13 |
||
|
92001
|
92001
92001-1613 BOLT,FLANGED,8X45 |
92001-1613 |
from US $3.48 |
||
|
92009
|
92009
92009-1256 SCREW,6X22,BLACK |
92009-1256 |
from US $1.74 |
||
|
92009A
|
92009A
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92009B
|
92009B
92009-1654 SCREW |
92009-1654 |
from US $2.53 |
||
|
92009C
|
92009C
92009-1656 SCREW |
92009-1656 |
from US $2.53 |
||
|
92015
|
92015
92015-1174 NUT,CAP,8MM,BLACK |
92015-1174 |
from US $3.01 |
||
|
92015A
|
92015A
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92015B
|
92015B
92015-1700 NUT |
92015-1700 |
from US $6.57 |
||
|
92015C
|
92015C
92015-1757 NUT,5MM |
92015-1757 |
from US $4.25 |
||
|
92022
|
92022
92022-1521 WASHER,NYLON,5.3X11.5 |
92022-1521 |
from US $2.53 |
||
|
92043
|
92043
92043-1477 PIN,4X124.7 |
92043-1477 |
from US $7.92 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92075
|
92075
92075-1808 DAMPER |
92075-1808 |
from US $1.87 |
||
|
92144
|
92144
92144-1697 SPRING |
92144-1697 |
from US $6.18 |
||
