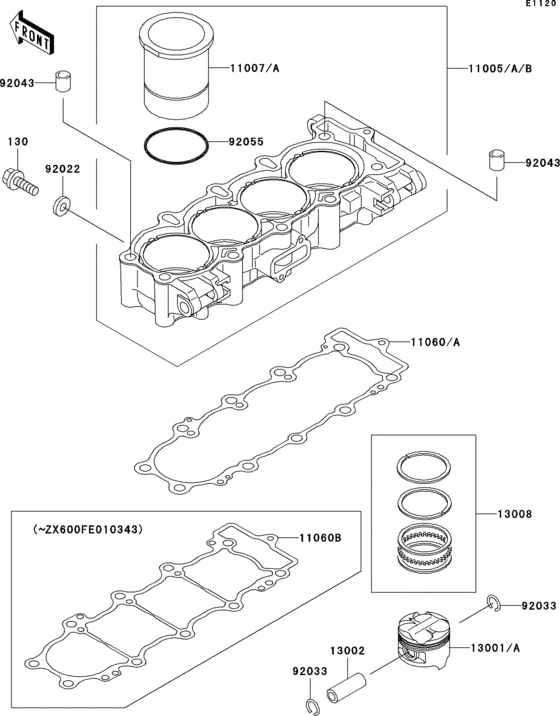

Cylinder/piston(s) Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 1996
- Model code
- ZX600-F2
- Sales region
- Canada
- Engine Capacity
- 600
- Frame
- JKAZX4F1 TA017001 - TA030000
- Model
- Ninja ZX-6R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
11005A
|
11005A
11005-1798 CYLINDER-ENGINE |
11005-1798 |
US $1,200.42 |
||
|
11007A
|
11007A
11007-1142
LINER-CYLINDER
|
11007-1142 |
— | ||
|
11060
|
11060
11060-1844 GASKET,CYLINDER BASE |
11060-1844 |
from US $33.74 |
||
|
13001A
|
13001A
13001-1546
PISTON-ENGINE
|
13001-1546 |
— | ||
|
13002
|
13002
13002-1115 PIN-PISTON |
13002-1115 |
from US $22.41 |
||
|
13008
|
13008
13008-1161 RING-SET-PISTON,STD |
13008-1161 |
from US $64.65 |
||
|
92022
|
92022
92022-304 WASHER,PLAIN |
92022-304 |
from US $2.53 |
||
|
92033
|
92033
92033-1161 RING-SNAP,PISTON PIN |
92033-1161 |
from US $2.53 |
||
|
92043
|
92043
92043-4009 PIN,10.1X12X14 |
92043-4009 |
from US $3.64 |
||
|
92055
|
92055
92055-1534 RING-O,72X2.0 |
92055-1534 |
US $2.93 |
