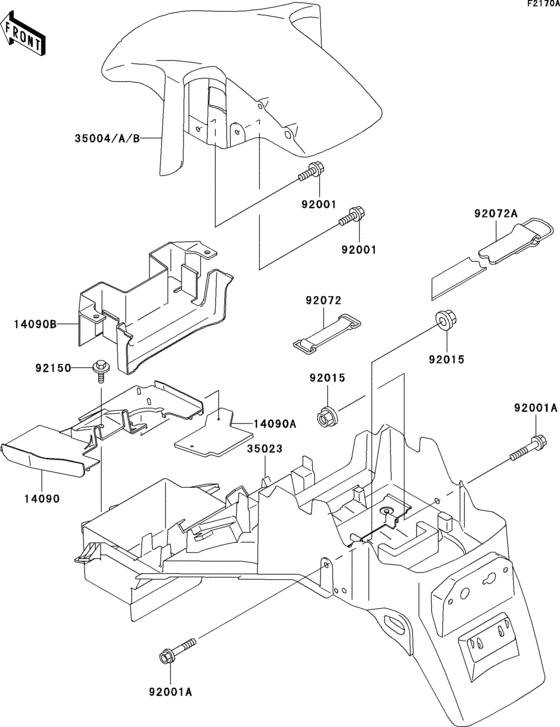

Fenders(zx600-f2/f3) Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 1996
- Model code
- ZX600-F2
- Sales region
- Canada
- Engine Capacity
- 600
- Frame
- JKAZX4F1 TA017001 - TA030000
- Model
- Ninja ZX-6R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14090
|
14090
14090-1706
COVER,RR FENDER,FR
|
14090-1706 |
— | ||
|
14090A
|
14090A
14090-1707 COVER,RR FENDER,FR CO |
14090-1707 |
US $6.21 |
||
|
14090B
|
14090B
14090-1708
COVER,STORAGE
|
14090-1708 |
— | ||
|
35004B
|
35004B
35004-1327-7F
FENDER-FRONT,L.GREEN
|
35004-1327-7F |
— | ||
|
35023
|
35023
35023-1436 FENDER-REAR |
35023-1436 |
US $144.88 |
||
|
92001
|
92001
92001-1763 BOLT,W/SP,6X16 |
92001-1763 |
from US $3.01 |
||
|
92001A
|
92001A
92001-1899 BOLT,6X38 |
92001-1899 |
from US $3.01 |
||
|
92015
|
92015
92015-1321 NUT |
92015-1321 |
from US $7.76 |
||
|
92072
|
92072
92072-071 BAND,BATTERY |
92072-071 |
from US $6.34 |
||
|
92072A
|
92072A
92072-1331 BAND |
92072-1331 |
from US $16 |
||
|
92150
|
92150
92150-1909 BOLT,6X16 |
92150-1909 |
from US $3.17 |
||
| replacement | |||||
|
92150
|
92150
92153-0684 BOLT,6X16 |
92153-0684 |
from US $3.20 |
||
