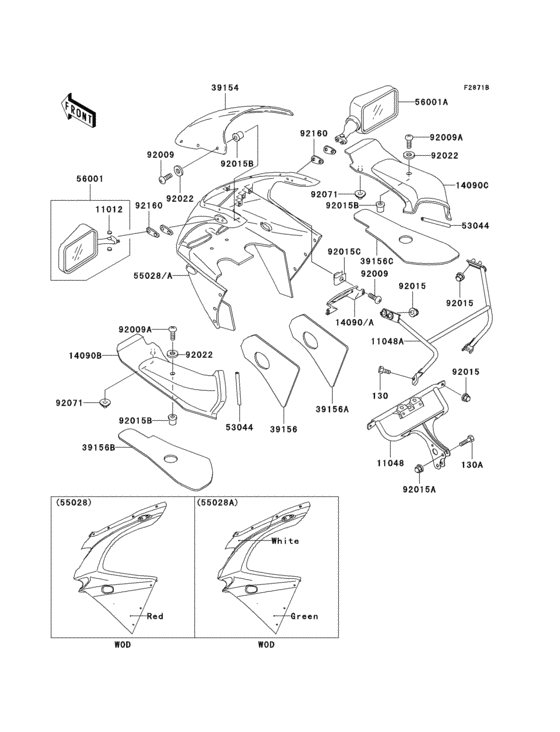

Cowling(zx600-f3) Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 1997
- Colour
- Candy Persimmon Red (A5)
- Model code
- ZX600-F3
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Model
- Ninja ZX-6R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
|
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
130A
|
130A
130J0830
BOLT-FLANGE,8X30
|
130J0830 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0830 BOLT-FLANGE,8X30 |
130BB0830 |
from US $1.13 |
||
|
11012
|
11012
11012-1818 CAP,MIRROR |
11012-1818 |
from US $2.85 |
||
|
11048
|
11048
11048-1866
BRACKET,UPP COWLING
|
11048-1866 |
— | ||
|
11048A
|
11048A
11048-1867
BRACKET,MIRROR
|
11048-1867 |
— | ||
|
14090
|
14090
14090-1404-A5 COVER,POSITION LAMP,C |
14090-1404-A5 |
US $50.26 |
||
|
14090B
|
14090B
14090-1542 COVER,AIR DUCT,LH |
14090-1542 |
US $47.81 |
||
|
14090C
|
14090C
14090-1543 COVER,AIR DUCT,RH |
14090-1543 |
US $44.26 |
||
|
39154
|
39154
39154-5007
WINDSHIELD
|
39154-5007 |
— | ||
|
39156
|
39156
39156-1435
PAD,UPP COWLING,LH
|
39156-1435 |
— | ||
|
39156A
|
39156A
39156-1436
PAD,UPP COWLING,RH
|
39156-1436 |
— | ||
|
39156B
|
39156B
39156-1449 PAD,AIR DUCT COVER,LH |
39156-1449 |
US $19.55 |
||
|
39156C
|
39156C
39156-1450 PAD,AIR DUCT COVER,RH |
39156-1450 |
US $19.55 |
||
|
53044
|
53044
53044-1265 TRIM,AIR DUCT COVER |
53044-1265 |
from US $8.71 |
||
|
55028
|
55028
55028-1330-A5 COWLING,UPP,C.P.RED |
55028-1330-A5 |
US $690.48 |
||
|
56001
|
56001
56001-1376-6C MIRROR-ASSY,LH,EBONY |
56001-1376-6C |
from US $59.69 |
||
|
56001A
|
56001A
56001-1377-6C MIRROR-ASSY,RH,EBONY |
56001-1377-6C |
from US $59.69 |
||
|
92009
|
92009
92009-1654 SCREW |
92009-1654 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1657 SCREW |
92009-1657 |
from US $3.17 |
||
|
92015
|
92015
92015-1170 NUT |
92015-1170 |
from US $0.38 |
||
| replacement | |||||
|
92015
|
92015
92210-0003 NUT |
92210-0003 |
from US $1 |
||
|
92015A
|
92015A
92015-1174 NUT,CAP,8MM,BLACK |
92015-1174 |
from US $3.01 |
||
|
92015B
|
92015B
92015-1757 NUT,5MM |
92015-1757 |
from US $4.25 |
||
|
92015C
|
92015C
92015-1798 NUT |
92015-1798 |
from US $3.80 |
||
|
92022
|
92022
92022-1521 WASHER,NYLON,5.3X11.5 |
92022-1521 |
from US $2.53 |
||
|
92071
|
92071
92071-1222 GROMMET |
92071-1222 |
from US $4.12 |
||
|
92160
|
92160
92160-1089 DAMPER,MIRROR |
92160-1089 |
from US $4.59 |
||
