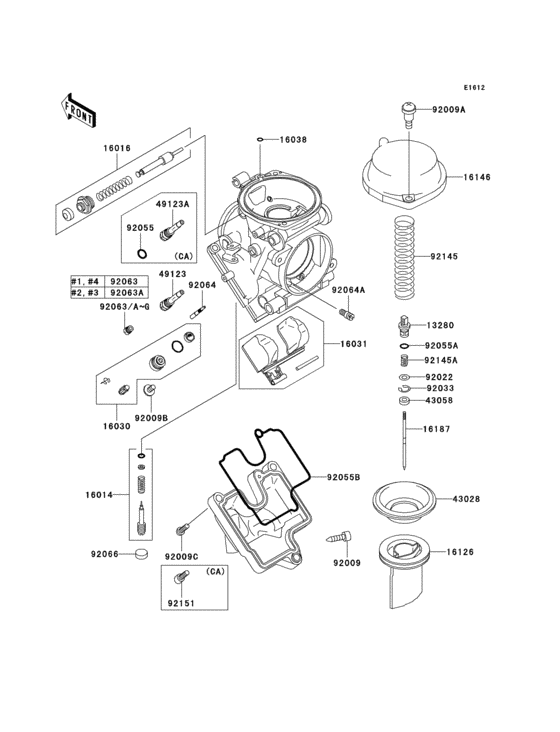

Carburetor parts(1/2) Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 1999
- Colour
- Lime Green (7F)
- Model code
- ZX600-G2
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Model
- Ninja ZX-6R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13280
|
13280
13280-1095 HOLDER |
13280-1095 |
from US $25.30 |
||
|
16014
|
16014
16014-1100 SCREW-PILOT AIR |
16014-1100 |
from US $21.99 |
||
|
16016
|
16016
16016-1107 PLUNGER,STARTER |
16016-1107 |
from US $38.96 |
||
|
16030
|
16030
16030-1088 VALVE-FLOAT |
16030-1088 |
from US $48.77 |
||
|
16031
|
16031
16031-1096 FLOAT |
16031-1096 |
from US $51.82 |
||
|
16038
|
16038
16038-022 O RING |
16038-022 |
from US $5.39 |
||
|
16126
|
16126
16126-1363 VALVE,VACUUM |
16126-1363 |
US $75.01 |
||
|
16146
|
16146
16146-1197 COVER-ASSY,MIXING |
16146-1197 |
from US $60.32 |
||
|
16187
|
16187
16187-1055
NEEDLE-JET,HQ
|
16187-1055 |
— | ||
|
43028
|
43028
43028-1086 DIAPHRAGM,VACUUM VALVЕ |
43028-1086 |
from US $51.16 |
||
|
43058
|
43058
43058-1094 RING |
43058-1094 |
from US $2.62 |
||
|
49123A
|
49123A
49123-1052 HOLDER-MAIN JET |
49123-1052 |
from US $22.77 |
||
|
92009
|
92009
92009-1826 SCREW,DRAIN |
92009-1826 |
from US $3.33 |
||
|
92009A
|
92009A
92009-1850 SCREW,MIXING COVER |
92009-1850 |
from US $1.43 |
||
|
92009B
|
92009B
92009-1853 SCREW,FLOAT VALVE |
92009-1853 |
from US $2.85 |
||
|
92022
|
92022
92022-1123 WASHER,JET NEEDLE |
92022-1123 |
from US $5.86 |
||
|
92033
|
92033
92033-1299 RING-SNAP |
92033-1299 |
from US $1.43 |
||
|
92055
|
92055
92055-1084 0 RING |
92055-1084 |
from US $1.40 |
||
|
92055A
|
92055A
92055-1093 0 RING,DRAIN PLUG |
92055-1093 |
from US $4.28 |
||
|
92055B
|
92055B
92055-1588 RING-O,FLOAT CHAMBER |
92055-1588 |
from US $6.65 |
||
|
92063
|
92063
92063-1431 JET-MAIN,#A137.5 |
92063-1431 |
from US $8.71 |
||
|
92063A
|
92063A
92063-1432 JET-MAIN,#A140 |
92063-1432 |
US $10.46 |
||
|
92063B
|
92063B
92063-1433 JET-MAIN,#A130 |
92063-1433 |
US $10.46 |
||
|
92063C
|
92063C
92063-1434 JET-MAIN,#A132.5 |
92063-1434 |
US $11.18 |
||
|
92063D
|
92063D
92063-1435 JET-MAIN,#A135 |
92063-1435 |
US $10.46 |
||
|
92063E
|
92063E
92063-1436 JET-MAIN,#A142.5 |
92063-1436 |
US $11.18 |
||
|
92063F
|
92063F
92063-1437 JET-MAIN,#A145 |
92063-1437 |
US $10.46 |
||
|
92063G
|
92063G
92063-1438 JET-MAIN,#A147.5 |
92063-1438 |
from US $10.30 |
||
|
92064
|
92064
92064-1195 JET-PILOT,#12.5 |
92064-1195 |
from US $11.88 |
||
|
92064A
|
92064A
92064-1196 JET-PILOT,#A120 |
92064-1196 |
US $11.84 |
||
|
92066
|
92066
92066-1501 PLUG,PILOT AIR SCREW |
92066-1501 |
from US $1.90 |
||
|
92145
|
92145
92145-1182 SPRING,VACUUM VALVE |
92145-1182 |
from US $6.97 |
||
|
92145A
|
92145A
92145-1183 SPRING |
92145-1183 |
from US $1.85 |
||
|
92151
|
92151
92151-1406 BOLT,FLOAT CHAMBER |
92151-1406 |
from US $1.56 |
