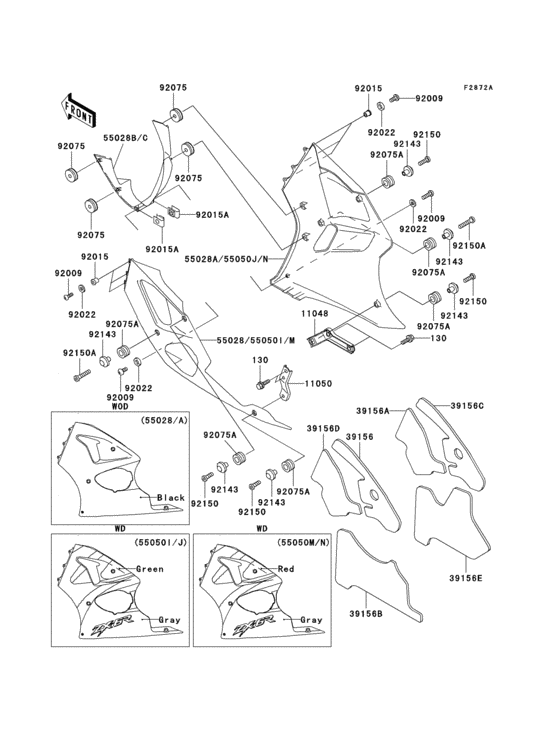

Cowling lowers(zx600-g2) Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 1999
- Colour
- Lime Green (7F)
- Model code
- ZX600-G2
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Model
- Ninja ZX-6R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130V0616
BOLT-FLANGED,6X16
|
130V0616 |
— | ||
| replacement | |||||
|
130
|
130
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
11048
|
11048
11048-1870 BRACKET,LWR COWLING,R |
11048-1870 |
from US $10.49 |
||
|
11050
|
11050
11050-1867 BRACKET,SIDE COWLING, |
11050-1867 |
from US $10.37 |
||
|
39156
|
39156
39156-1616 PAD,SIDE COWLING,LH,U |
39156-1616 |
from US $18.43 |
||
|
39156A
|
39156A
39156-1617 PAD,SIDE COWLING,RH |
39156-1617 |
from US $18.43 |
||
|
39156B
|
39156B
39156-1618 PAD,SIDE COWLING,LH,L |
39156-1618 |
from US $38.09 |
||
|
39156C
|
39156C
39156-1619 PAD,SIDE COWLING,RH,U |
39156-1619 |
from US $18.43 |
||
|
39156D
|
39156D
39156-1620 PAD,SIDE COWLING,LH,C |
39156-1620 |
from US $18.43 |
||
|
39156E
|
39156E
39156-1621 PAD,SIDE COWLING,RH,L |
39156-1621 |
from US $42.45 |
||
|
55028B
|
55028B
55028-1368-T2 COWLING,FR,P.C.GRAY |
55028-1368-T2 |
US $142.60 |
||
|
55050I
|
55050I
55050-5254-4H
COWLING-ASSY.,SIDE,LH
|
55050-5254-4H |
— | ||
|
55050J
|
55050J
55050-5255-4H COWLING,SIDE,RH,GREEN |
55050-5255-4H |
US $754.54 |
||
| replacement | |||||
|
55050J
|
55050J
55050-5429-4H COWLING,SIDE,RH,GREEN |
55050-5429-4H |
from US $754.54 |
||
|
92009
|
92009
92009-1654 SCREW |
92009-1654 |
from US $2.53 |
||
|
92015
|
92015
92015-1757 NUT,5MM |
92015-1757 |
from US $4.25 |
||
|
92015A
|
92015A
92015-1798 NUT |
92015-1798 |
from US $3.80 |
||
|
92022
|
92022
92022-1521 WASHER,NYLON,5.3X11.5 |
92022-1521 |
from US $2.53 |
||
|
92075
|
92075
92075-1067 DAMPER,SIDE COVER |
92075-1067 |
from US $3.73 |
||
|
92075A
|
92075A
92075-1634 DAMPER |
92075-1634 |
from US $3.73 |
||
|
92143
|
92143
92143-1226 COLLAR |
92143-1226 |
from US $9.75 |
||
|
92150
|
92150
92150-1553 BOLT,SOCKET,6X18 |
92150-1553 |
from US $3.48 |
||
|
92150A
|
92150A
92150-1554 BOLT,SOCKET,6X30,BLAC |
92150-1554 |
from US $3.17 |
||
