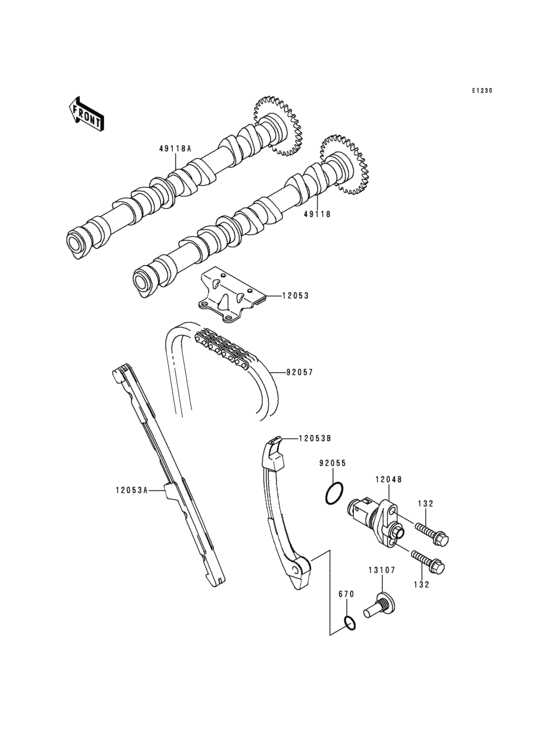

Camshaft(s)/tensioner Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 1998
- Colour
- Ebony / Firecracker Red (J3)
- Model code
- ZX600-H1
- Sales region
- Switzerland
- Engine Capacity
- 600
- Model
- Ninja ZX-6R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0625
BOLT-FLANGED-SMALL,6X
|
132J0625 |
— | ||
| replacement | |||||
|
132
|
132
132BB0625 BOLT-FLANGED-SMALL,6X |
132BB0625 |
from US $1.27 |
||
|
670
|
670
670D2014 0 RING,14MM |
670D2014 |
from US $3.90 |
||
|
12048
|
12048
12048-1143 TENSIONER-ASSY |
12048-1143 |
from US $139.66 |
||
|
12053
|
12053
12053-1352 GUIDE-CHAIN,UPP |
12053-1352 |
US $34.83 |
||
|
12053A
|
12053A
12053-1408 GUIDE-CHAIN,FR |
12053-1408 |
US $63.55 |
||
|
12053B
|
12053B
12053-1409 GUIDE-CHAIN,RR |
12053-1409 |
US $77.06 |
||
|
13107
|
13107
13107-1226 SHAFT |
13107-1226 |
from US $19.17 |
||
|
49118
|
49118
49118-1173 CAMSHAFT-COMP,INTAKE |
49118-1173 |
US $403.36 |
||
|
49118A
|
49118A
49118-1174 CAMSHAFT-COMP,EXHAUST |
49118-1174 |
US $403.36 |
||
|
92055
|
92055
92055-086 O-RING |
92055-086 |
from US $3.37 |
||
|
92057
|
92057
92057-1397 CHAIN,CAM,92RH2015 |
92057-1397 |
from US $91.70 |
||
