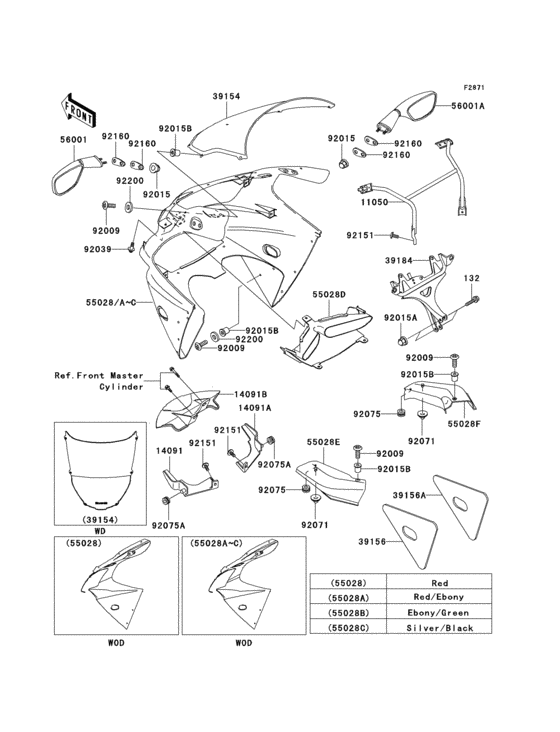

Cowling(zx600-j1) Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 2000
- Colour
- Ebony / Lime Green (FH)
- Model code
- ZX600-J1
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Model
- Ninja ZX-6R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0830 BOLT-FLANGED-SMALL |
132J0830 |
from US $1.74 |
||
| replacement | |||||
|
132
|
132
132BB0830 BOLT-FLANGED-SMALL |
132BB0830 |
from US $1.27 |
||
|
11050
|
11050
11050-1640 BRACKET,MIRROR |
11050-1640 |
from US $115.12 |
||
|
14091
|
14091
14091-1170 COVER,RADIATOR,LH |
14091-1170 |
from US $6.62 |
||
|
14091A
|
14091A
14091-1171 COVER,RADIATOR,RH |
14091-1171 |
from US $6.62 |
||
|
14091B
|
14091B
14091-1271 COVER,UNDER BRACKET |
14091-1271 |
from US $21.98 |
||
|
39154
|
39154
39154-5013 WINDSHIELD |
39154-5013 |
US $276.33 |
||
|
39156
|
39156
39156-1622 PAD,UPP COWLING,LH |
39156-1622 |
from US $12.21 |
||
|
39156A
|
39156A
39156-1623 PAD,UPP COWLING,RH |
39156-1623 |
from US $12.21 |
||
|
39184
|
39184
39184-1085 BRACKET-ASSY,MAIN |
39184-1085 |
from US $274.32 |
||
|
55028B
|
55028B
55028-1390-FH COWLING,UPP,EBONY/GRE |
55028-1390-FH |
from US $815.47 |
||
|
55028D
|
55028D
55028-1391-3L COWLING,DUCT,M.F.C.GR |
55028-1391-3L |
US $160.60 |
||
|
55028E
|
55028E
55028-1394 COWLING,INNER,LH |
55028-1394 |
from US $91.45 |
||
|
55028F
|
55028F
55028-1395 COWLING,INNER,RH |
55028-1395 |
from US $68.83 |
||
|
56001
|
56001
56001-1483 MIRROR-ASSY,LH |
56001-1483 |
from US $99 |
||
|
56001A
|
56001A
56001-1484 MIRROR-ASSY,RH |
56001-1484 |
US $128.22 |
||
|
92009
|
92009
92009-1909 SCREW,5X16 |
92009-1909 |
from US $1.11 |
||
|
92015
|
92015
92015-1170 NUT |
92015-1170 |
from US $0.38 |
||
| replacement | |||||
|
92015
|
92015
92210-0003 NUT |
92210-0003 |
from US $1 |
||
|
92015A
|
92015A
92015-1174 NUT,CAP,8MM,BLACK |
92015-1174 |
from US $3.01 |
||
|
92015B
|
92015B
92015-1757 NUT,5MM |
92015-1757 |
from US $4.25 |
||
|
92039
|
92039
92039-1227 RIVET |
92039-1227 |
from US $1.27 |
||
|
92071
|
92071
92071-1222 GROMMET |
92071-1222 |
from US $4.12 |
||
|
92075
|
92075
92075-1067 DAMPER,SIDE COVER |
92075-1067 |
from US $3.73 |
||
|
92075A
|
92075A
92075-1912 DAMPER |
92075-1912 |
from US $3.64 |
||
|
92151
|
92151
92151-1654 BOLT,SOCKET,6X14 |
92151-1654 |
from US $1.43 |
||
|
92160
|
92160
92160-1089 DAMPER,MIRROR |
92160-1089 |
from US $4.59 |
||
|
92200
|
92200
92200-1480 WASHER,NYLON,5.3X11.5 |
92200-1480 |
from US $1.25 |
||
