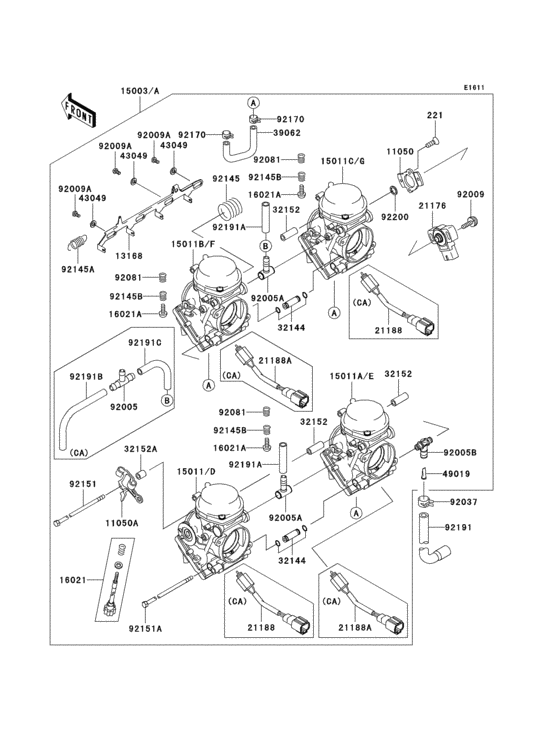

Carburetor(1/2) Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 2001
- Colour
- Candy Lightning Blue (E1)
- Model code
- ZX600-J2
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Model
- Ninja ZX-6R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
221
|
221
221B0408 SCREW-CSK-CROS |
221B0408 |
from US $0.61 |
||
| replacement | |||||
|
221
|
221
221AA0408 SCREW-CSK-CROS |
221AA0408 |
from US $0.61 |
||
|
11050
|
11050
11050-1919 BRACKET,SENSOR |
11050-1919 |
from US $12.69 |
||
|
11050A
|
11050A
11050-1920 BRACKET,THROTTLE CABL |
11050-1920 |
from US $37.06 |
||
|
13168
|
13168
13168-1653 LEVER,STARTER |
13168-1653 |
from US $100.38 |
||
|
15003A
|
15003A
15003-1551 CARBURETOR-ASSY |
15003-1551 |
from US $2,426.53 |
||
|
15011D
|
15011D
15011-1781 CARBURETOR,LH,OUTSIDE |
15011-1781 |
US $558.43 |
||
| replacement | |||||
|
15011D
|
15011D
15003-1551 CARBURETOR-ASSY |
15003-1551 |
from US $2,426.53 |
||
|
15011E
|
15011E
15011-1782 CARBURETOR,LH,INSIDE |
15011-1782 |
US $558.43 |
||
| replacement | |||||
|
15011E
|
15011E
15003-1551 CARBURETOR-ASSY |
15003-1551 |
from US $2,426.53 |
||
|
15011F
|
15011F
15011-1783 CARBURETOR,RH,INSIDE |
15011-1783 |
US $558.43 |
||
| replacement | |||||
|
15011F
|
15011F
15003-1551 CARBURETOR-ASSY |
15003-1551 |
from US $2,426.53 |
||
|
15011G
|
15011G
15011-1784 CARBURETOR,RH,OUTSIDE |
15011-1784 |
US $558.43 |
||
| replacement | |||||
|
15011G
|
15011G
15003-1551 CARBURETOR-ASSY |
15003-1551 |
from US $2,426.53 |
||
|
16021
|
16021
16021-1231 SCREW-THROTTLE STOP |
16021-1231 |
US $48.33 |
||
|
16021A
|
16021A
16021-2060 SCREW-THROTTLE STOP |
16021-2060 |
from US $4.81 |
||
|
21176
|
21176
21176-1083 SENSOR (TPS) |
21176-1083 |
from US $217.65 |
||
|
21188
|
21188
21188-1006 SOLENOID,#1 |
21188-1006 |
from US $157.68 |
||
|
21188A
|
21188A
21188-1007 SOLENOID,#2 |
21188-1007 |
from US $153.11 |
||
|
32144
|
32144
32144-1007 PIPE-ASSY |
32144-1007 |
from US $27.61 |
||
|
32152
|
32152
32152-1793 Pipe |
32152-1793 |
from US $27.61 |
||
|
32152A
|
32152A
32152-1794 Pipe |
32152-1794 |
from US $28.08 |
||
|
39062
|
39062
39062-1781 HOSE-COOLING |
39062-1781 |
from US $20.03 |
||
|
43049
|
43049
43049-1085
PACKING,STARTER LEVER
|
43049-1085 |
— | ||
|
49019
|
49019
49019-1085 FILTER-FUEL |
49019-1085 |
from US $6.44 |
||
|
92005
|
92005
92005-1304 FITTING |
92005-1304 |
from US $5.28 |
||
|
92005A
|
92005A
92005-1353 FITTING |
92005-1353 |
from US $17.27 |
||
|
92005B
|
92005B
92005-1354
FITTING
|
92005-1354 |
— | ||
|
92009
|
92009
92009-1855 SCREW,SENSOR |
92009-1855 |
from US $1.67 |
||
|
92009A
|
92009A
92009-1872
SCREW,STARTER LEVER
|
92009-1872 |
— | ||
|
92037
|
92037
92037-1181 CLAMP |
92037-1181 |
from US $3.01 |
||
|
92081
|
92081
92081-2008 SPRING |
92081-2008 |
from US $1.90 |
||
|
92145
|
92145
92145-1179 SPRING,THROTTLE ADJUS |
92145-1179 |
from US $5.07 |
||
|
92145A
|
92145A
92145-1180 SPRING,TENSION |
92145-1180 |
from US $11.88 |
||
|
92145B
|
92145B
92145-1184 SPRING,THROTTLE ADJUS |
92145-1184 |
from US $1.90 |
||
|
92151
|
92151
92151-1404 BOLT,CARBURETOR,UPP |
92151-1404 |
from US $2.43 |
||
|
92151A
|
92151A
92151-1405 BOLT,CARBURETOR,LWR |
92151-1405 |
from US $2.43 |
||
|
92170
|
92170
92170-1939 CLAMP |
92170-1939 |
from US $4.12 |
||
|
92191
|
92191
92191-1253 TUBE,FUEL |
92191-1253 |
from US $8.71 |
||
|
92191B
|
92191B
92191-1278 TUBE |
92191-1278 |
from US $8.12 |
||
|
92191C
|
92191C
92191-1279 TUBE |
92191-1279 |
from US $8.12 |
||
|
92200
|
92200
92200-1435 WASHER,SENSOR |
92200-1435 |
from US $3.17 |
||
