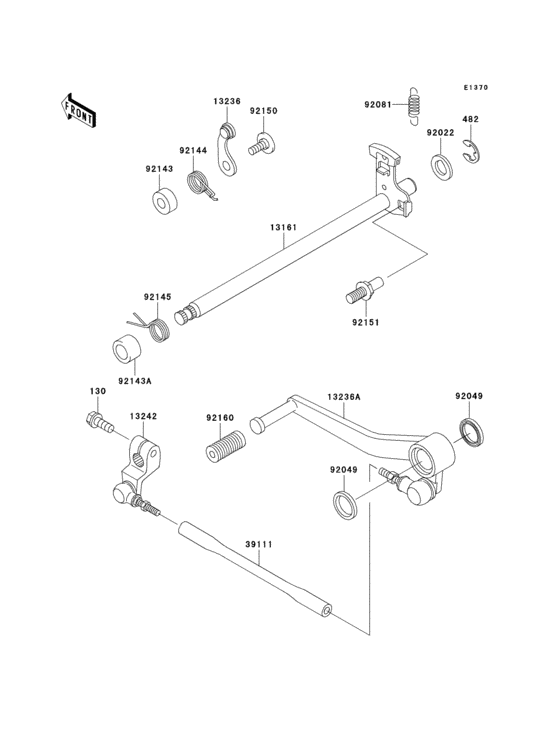

Gear change mechanism Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 2001
- Colour
- Candy Lightning Blue (E1)
- Model code
- ZX600-J2
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Model
- Ninja ZX-6R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130Z0620 BOLT-FLANGED |
130Z0620 |
from US $1.13 |
||
| replacement | |||||
|
130
|
130
130CD0620 BOLT-FLANGED |
130CD0620 |
from US $1.11 |
||
|
482
|
482
482J0200 CIRCLIP-TYPE-E,12MM |
482J0200 |
from US $1.11 |
||
|
13161
|
13161
13161-1270 LEVER-COMP-CHANGE SHA |
13161-1270 |
from US $83.20 |
||
|
13236
|
13236
13236-1243 LEVER-COMP |
13236-1243 |
from US $6.02 |
||
|
13236A
|
13236A
13236-1317 LEVER-COMP,CHANGE PED |
13236-1317 |
from US $106.22 |
||
|
13242
|
13242
13242-1348 LEVER-ASSY-CHANGE,BOS |
13242-1348 |
from US $56.11 |
||
|
39111
|
39111
39111-1165 ROD-TIE |
39111-1165 |
from US $80.55 |
||
|
92022
|
92022
92022-1628 WASHER,CHANGE SHAFT |
92022-1628 |
from US $3.80 |
||
|
92049
|
92049
92049-1492 SEAL-OIL |
92049-1492 |
from US $5.70 |
||
|
92081
|
92081
92081-1708 SPRING,PAWL RETURN |
92081-1708 |
from US $3.96 |
||
|
92143
|
92143
92143-1595 COLLAR |
92143-1595 |
from US $6.34 |
||
|
92143A
|
92143A
92143-1733 COLLAR,13.2X19.9X12 |
92143-1733 |
from US $3.80 |
||
|
92144
|
92144
92144-1856 SPRING |
92144-1856 |
from US $6.65 |
||
|
92145
|
92145
92145-1122 SPRING |
92145-1122 |
from US $6.34 |
||
|
92150
|
92150
92150-1737 BOLT |
92150-1737 |
from US $7.29 |
||
|
92151
|
92151
92151-1362 BOLT,RETURN SPRING |
92151-1362 |
from US $6.02 |
||
| replacement | |||||
|
92151
|
92151
92154-1076 BOLT,RETURN SPRING |
92154-1076 |
from US $4.98 |
||
|
92160
|
92160
92160-1036
DAMPER,CHANGE PEDAL
|
92160-1036 |
— | ||
| replacement | |||||
|
92160
|
92160
92161-2382 DAMPER,CHANGE PEDAL |
92161-2382 |
from US $2.88 |
||
