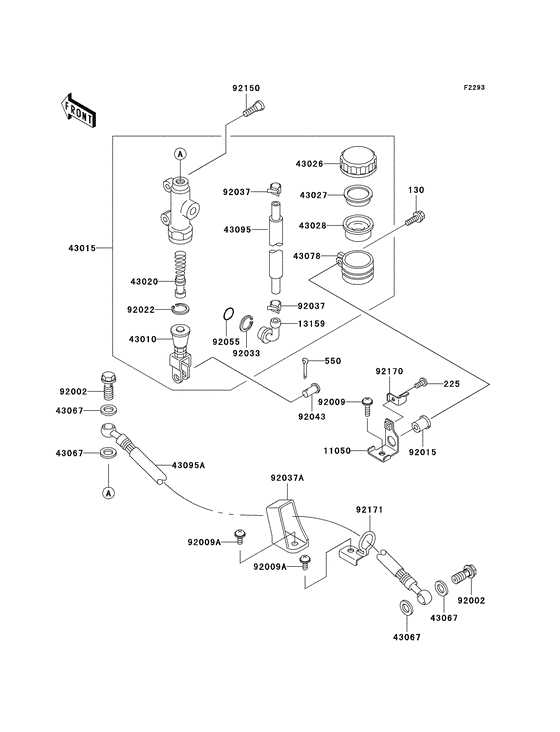

Rear master cylinder Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 2002
- Model code
- ZX600-J3
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0620
BOLT-FLANGED
|
130J0620 |
— | ||
| replacements | |||||
|
130
|
130
130BB0620 BOLT-FLANGED |
130BB0620 |
from US $0.78 |
||
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
225
|
225
225C0412 SCREW-PAN-WSP-CROS |
225C0412 |
from US $1.27 |
||
| replacement | |||||
|
225
|
225
225AB0412 SCREW-PAN-WSP-CROS |
225AB0412 |
from US $0.95 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin-cotter,2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin-cotter,2.0x15; |
550AA2015 |
from US $0.63 |
||
|
11050
|
11050
11050-1768 BRACKET,RESERVE TANKBracket,reserve tank; |
11050-1768 |
from US $8.46 |
||
|
13159
|
13159
13159-1052 CONNECTOR,RR MASTER CConnector,rr master cylinder; |
13159-1052 |
from US $9.98 |
||
|
43010
|
43010
43010-1081 ROD-ASSY-BRAKE |
43010-1081 |
from US $49.86 |
||
|
43015
|
43015
43015-1642 CYLINDER-ASSY-MASTER,Cylinder-assy-master,rr; |
43015-1642 |
from US $388.28 |
||
|
43020
|
43020
43020-1120 PISTON-COMP-BRAKE |
43020-1120 |
from US $59.87 |
||
|
43026
|
43026
43026-1051 CAP-BRAKE |
43026-1051 |
from US $23.19 |
||
|
43027
|
43027
43027-1051 PLATE-DIAPHRAGM |
43027-1051 |
from US $4.59 |
||
|
43028
|
43028
43028-1057 DIAPHRAGMDiaphragm,master cylinder; |
43028-1057 |
from US $13.94 |
||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5Washer,10.5x15x1.5; |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5Washer,10.5x15x1.5; |
49091-0001 |
from US $1.27 |
||
|
43078
|
43078
43078-1082 RESERVOIR,RR MASTER CReservoir,rr master cylinder; |
43078-1082 |
from US $19.01 |
||
|
43095
|
43095
43095-1121 HOSE-BRAKE,RR MASTERHose-brake,rr master cylinder; |
43095-1121 |
from US $30.55 |
||
|
43095A
|
43095A
43095-1166 HOSE-BRAKE,RRHose-brake,rr; |
43095-1166 |
from US $66.69 |
||
| replacement | |||||
|
43095A
|
43095A
43095-1377 HOSE-BRAKE,RRHose-brake,rr; |
43095-1377 |
from US $59.90 |
||
|
92002
|
92002
92002-1888
BOLT,OIL,L=23
Bolt,oil,l=23; |
92002-1888 |
— | ||
| replacement | |||||
|
92002
|
92002
92153-0627 BOLT,OIL,L=23Bolt,oil,l=23; |
92153-0627 |
from US $2.85 |
||
|
92009
|
92009
92009-1288
SCREW
Screw,6x14; |
92009-1288 |
— | ||
| replacements | |||||
|
92009
|
92009
92009-1662 SCREWScrew,6x14; |
92009-1662 |
from US $2.53 |
||
|
92009
|
92009
92172-0004 SCREW,6X14Screw,6x14; |
92172-0004 |
from US $1.27 |
||
|
92009A
|
92009A
92009-1661 SCREWScrew,6x10; |
92009-1661 |
from US $2.69 |
||
|
92015
|
92015
92015-1700 NUT |
92015-1700 |
from US $6.57 |
||
|
92022
|
92022
92022-1601 RING-SNAP,20.9X24.6X1Washer,circrip; |
92022-1601 |
from US $4.44 |
||
| replacement | |||||
|
92022
|
92022
92033-0079 RING-SNAP,20.9X24.6X1Washer,circrip; |
92033-0079 |
from US $3.80 |
||
|
92033
|
92033
92033-1186 RING-SNAP,20.5MMRing-snap,20.5mm; |
92033-1186 |
from US $3.01 |
||
|
92037
|
92037
92037-1547 CLAMPClamp,brake hose; |
92037-1547 |
from US $8.08 |
||
|
92037A
|
92037A
92037-1896 CLAMPClamp,hose; |
92037-1896 |
from US $15.68 |
||
|
92043
|
92043
92043-1303 PIN,8X14.5Pin,8mm; |
92043-1303 |
from US $3.64 |
||
| replacement | |||||
|
92043
|
92043
92043-0104 PIN,8X14.5Pin,8mm; |
92043-0104 |
from US $1.90 |
||
|
92055
|
92055
92055-1251 RING-O,14.8X2.4Ring-o,master cylinder; |
92055-1251 |
from US $3.96 |
||
| replacement | |||||
|
92055
|
92055
92055-0741 RING-O,14.8X2.4Ring-o,master cylinder; |
92055-0741 |
from US $1.90 |
||
|
92150
|
92150
92150-1843 BOLT,SOCKET,8X30Bolt,socket,8x30; |
92150-1843 |
from US $3.80 |
||
| replacement | |||||
|
92150
|
92150
92153-1624 BOLT,SOCKET,8X30Bolt,socket,8x30; |
92153-1624 |
from US $1.90 |
||
|
92170
|
92170
92170-1879 CLAMP,RESERVE TANK CAClamp,reserve tank cap; |
92170-1879 |
from US $3.48 |
||
|
92171
|
92171
92171-1244 CLAMP,BRAKE HOSEClamp,brake hose; |
92171-1244 |
from US $10.77 |
||
