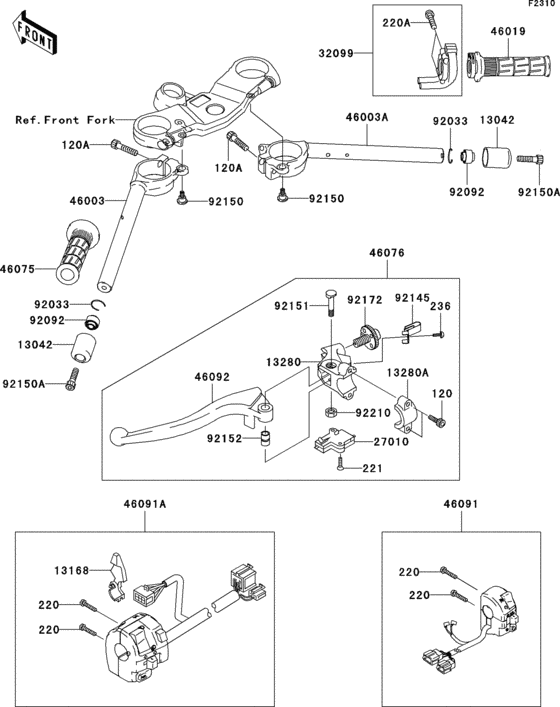

Handlebar Diagram Kawasaki ZX600 Ninja ZX-6RR
- Year
- 2004
- Model code
- ZX600-M1
- Sales region
- Canada
- Engine Capacity
- 600
- Frame
- JKAZX4M1 4A000001 - 999999
- Model
- Ninja ZX-6RR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0620 BOLT-SOCKET |
120CB0620 |
from US $1.11 |
||
|
120A
|
120A
120CB0835 BOLT-SOCKET,8X35,BLAC |
120CB0835 |
from US $1.27 |
||
|
220
|
220
220AB0525 SCREW-PAN-CROS |
220AB0525 |
from US $0.95 |
||
|
220A
|
220A
220AB0535 SCREW-PAN-CROSS,5X35 |
220AB0535 |
from US $0.95 |
||
|
221
|
221
221AB0316 SCREW-CSK-CROS |
221AB0316 |
from US $0.79 |
||
|
236
|
236
236C0410 SCREW-PAN-WSP-CROS,4X |
236C0410 |
from US $0.99 |
||
| replacement | |||||
|
236
|
236
236AB0410 SCREW-PAN-WSP-CROS,4X |
236AB0410 |
from US $0.95 |
||
|
13042
|
13042
13042-5001 WEIGHT,HANDLE |
13042-5001 |
from US $31.72 |
||
|
13168
|
13168
13168-1516 LEVER,CHOKE |
13168-1516 |
from US $6.81 |
||
|
13280
|
13280
13280-0034 HOLDER,CLUTCH LEVER |
13280-0034 |
from US $45.94 |
||
|
13280A
|
13280A
13280-0035 HOLDER,CLUTCH LEVER |
13280-0035 |
from US $34.38 |
||
|
27010
|
27010
27010-0717 Switch,clutch |
27010-0717 |
from US $24.70 |
||
| replacement | |||||
|
27010
|
27010
27010-0855 SWITCH,CLUTCH |
27010-0855 |
from US $21.07 |
||
|
32099
|
32099
32099-1193 CASE |
32099-1193 |
from US $26.63 |
||
|
46003
|
46003
46003-1590 HANDLE,LH |
46003-1590 |
from US $227.92 |
||
|
46003A
|
46003A
46003-1591 HANDLE,RH |
46003-1591 |
from US $249.92 |
||
|
46019
|
46019
46019-0001 GRIP-ASSY,THROTTLE |
46019-0001 |
from US $30.75 |
||
|
46075
|
46075
46075-1144 GRIP,LH |
46075-1144 |
from US $18.40 |
||
|
46076
|
46076
46076-1255
LEVER-ASSY-GRIP,CLUTC
|
46076-1255 |
— | ||
| replacement | |||||
|
46076
|
46076
46076-0105 LEVER-ASSY-GRIP,CLUTC |
46076-0105 |
from US $100.96 |
||
|
46091
|
46091
46091-1889 HOUSING-ASSY-CONTROL, |
46091-1889 |
US $157.27 |
||
|
46092
|
46092
46092-0006 LEVER-GRIP,CLUTCH |
46092-0006 |
from US $19.09 |
||
|
92033
|
92033
92033-1102 RING-SNAP,OD=22.2 |
92033-1102 |
US $2.53 |
||
| replacements | |||||
|
92033
|
92033
13042-5001 WEIGHT,HANDLE |
13042-5001 |
from US $31.72 |
||
|
92033
|
92033
13042-5002 WEIGHT,HANDLE |
13042-5002 |
from US $31.72 |
||
|
92033
|
92033
13042-5003 WEIGHT,HANDLE |
13042-5003 |
from US $32.34 |
||
|
92092
|
92092
92092-1075 BUSHING-RUBBER,HANDLE |
92092-1075 |
US $6.97 |
||
| replacement | |||||
|
92092
|
92092
13042-5001 WEIGHT,HANDLE |
13042-5001 |
from US $31.72 |
||
|
92145
|
92145
92145-1286 SPRING |
92145-1286 |
from US $3.48 |
||
|
92150
|
92150
92150-1090 BOLT,6MM |
92150-1090 |
from US $5.67 |
||
|
92150A
|
92150A
92150-1604 BOLT,SOCKET,8X30 |
92150-1604 |
from US $3.48 |
||
|
92151
|
92151
92151-1523 BOLT |
92151-1523 |
from US $4.75 |
||
|
92152
|
92152
92152-0103 COLLAR |
92152-0103 |
from US $11.56 |
||
|
92172
|
92172
92172-1060 SCREW,ADJUST NUT |
92172-1060 |
from US $21.54 |
||
|
92210
|
92210
92210-0006 NUT,LOCK,6MM |
92210-0006 |
from US $1.27 |
||
