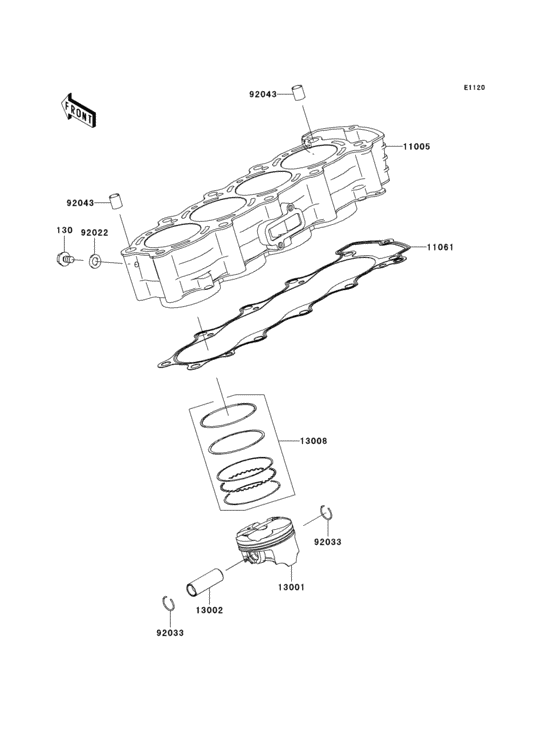

Cylinder/piston(s) Diagram Kawasaki ZX600 Ninja ZX-6RR
- Year
- 2005
- Colour
- Lime Green (777)
- Model code
- ZX600-N1H
- Sales region
- France
- Engine Capacity
- 600
- Model
- Ninja ZX-6RR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130Y0610
BOLT-FLANGED
|
130Y0610 |
— | ||
| replacement | |||||
|
130
|
130
130BD0610 BOLT-FLANGED |
130BD0610 |
from US $1.11 |
||
|
11005
|
11005
11005-0038 CYLINDER-ENGINE |
11005-0038 |
from US $1,372.07 |
||
|
11061
|
11061
11061-0041 GASKET,CYLINDER BASE |
11061-0041 |
from US $33.74 |
||
|
13001
|
13001
13001-0048 PISTON-ENGINE |
13001-0048 |
from US $153.97 |
||
|
13002
|
13002
13002-0005 PIN-PISTON |
13002-0005 |
from US $22.41 |
||
|
13008
|
13008
13008-0016 RING-SET-PISTON |
13008-0016 |
from US $64.65 |
||
|
92022
|
92022
92022-304 WASHER,PLAIN |
92022-304 |
from US $2.53 |
||
|
92033
|
92033
92033-1161 RING-SNAP,PISTON PIN |
92033-1161 |
from US $2.53 |
||
|
92043
|
92043
92043-4009 PIN,10.1X12X14 |
92043-4009 |
from US $3.64 |
||
