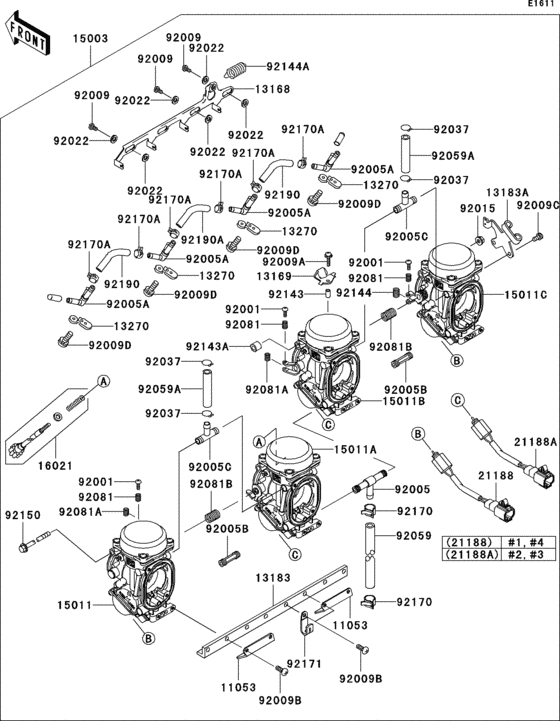

Carburetor(1/2) Diagram Kawasaki ZX600 ZZ-R600
- Year
- 2006
- Model code
- ZX600E6F
- Sales region
- Europe (General)
- Engine Capacity
- 600
- Model
- ZZ-R600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11053
|
11053
11053-1260 Bracket |
11053-1260 |
US $19.97 |
||
|
13168
|
13168
13168-1462 LEVER,STARTER |
13168-1462 |
from US $83.78 |
||
|
13169
|
13169
13169-1965 PLATE,STARTER CABLE |
13169-1965 |
from US $26.78 |
||
|
13183
|
13183
13183-1608 PLATE,CARBURETOR |
13183-1608 |
from US $63.73 |
||
|
13183A
|
13183A
13183-1610 PLATE,THROTTLE CABLE |
13183-1610 |
from US $61.19 |
||
|
13270
|
13270
13270-1118 Plate |
13270-1118 |
US $6.18 |
||
|
15003
|
15003
15003-0031
Carburetor-assy
|
15003-0031 |
— | ||
|
15011
|
15011
15011-0051
Carburetor,lh,outside
|
15011-0051 |
— | ||
|
15011A
|
15011A
15011-0052
Carburetor,lh,inside
|
15011-0052 |
— | ||
|
15011B
|
15011B
15011-0053
Carburetor,rh,inside
|
15011-0053 |
— | ||
|
15011C
|
15011C
15011-0054
Carburetor,rh,outside
|
15011-0054 |
— | ||
|
16021
|
16021
16021-1160
SCREW-THROTTLE STOP
|
16021-1160 |
— | ||
|
21188
|
21188
21188-1006 SOLENOID,#1 |
21188-1006 |
from US $157.68 |
||
|
21188A
|
21188A
21188-1007 SOLENOID,#2 |
21188-1007 |
from US $153.11 |
||
|
92001
|
92001
92001-1998 BOLT,THROTTLE ADJUST |
92001-1998 |
from US $10.30 |
||
|
92005
|
92005
92005-1287 Fitting |
92005-1287 |
US $26.48 |
||
|
92005A
|
92005A
92005-1291 FITTING |
92005-1291 |
from US $20.50 |
||
|
92005B
|
92005B
92005-1310 FITTING |
92005-1310 |
from US $21.99 |
||
|
92005C
|
92005C
92005-1385 FITTING |
92005-1385 |
from US $22.71 |
||
|
92009
|
92009
92009-1262 SCREW |
92009-1262 |
from US $3.96 |
||
|
92009A
|
92009A
92009-1632 SCREW |
92009-1632 |
from US $3.80 |
||
|
92009B
|
92009B
92009-1591 SCREW,5X14 |
92009-1591 |
from US $3.17 |
||
|
92009C
|
92009C
92009-1597 SCREW |
92009-1597 |
from US $4.44 |
||
|
92009D
|
92009D
92009-1713 SCREW |
92009-1713 |
from US $2.53 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92022
|
92022
92022-1199 WASHER,6.1X11X0.8,POL |
92022-1199 |
from US $3.90 |
||
|
92037
|
92037
92037-1531 CLAMP,TUBE |
92037-1531 |
from US $3.33 |
||
|
92059
|
92059
92190-1063 TUBE,7.3X12.5X400 |
92190-1063 |
from US $22.74 |
||
|
92059A
|
92059A
92059-1493 TUBE,7X11X300 |
92059-1493 |
from US $16.32 |
||
|
92081
|
92081
92081-1620 SPRING,THROTTLE ADJUS |
92081-1620 |
from US $3.17 |
||
|
92081A
|
92081A
92081-1621 SPRING,THROTTLE ADJUS |
92081-1621 |
from US $3.64 |
||
|
92081B
|
92081B
92081-1622 SPRING,THROTTLE ADJUS |
92081-1622 |
from US $7.60 |
||
|
92143
|
92143
92143-1265 COLLAR,4X5.2X9.6 |
92143-1265 |
from US $5.70 |
||
|
92143A
|
92143A
92143-1438 COLLAR |
92143-1438 |
from US $6.06 |
||
|
92144
|
92144
92144-1451 SPRING |
92144-1451 |
from US $6.81 |
||
|
92144A
|
92144A
92144-1540 SPRING,STATER LEVER |
92144-1540 |
from US $13.38 |
||
|
92150
|
92150
92150-1416 BOLT |
92150-1416 |
from US $20.43 |
||
|
92170
|
92170
92170-1051 CLAMP,TUBE |
92170-1051 |
from US $6.18 |
||
|
92170A
|
92170A
92170-1504 CLAMP |
92170-1504 |
from US $3.20 |
||
|
92171
|
92171
92171-1533 CLAMP,THROTTLE SENSOR |
92171-1533 |
from US $4.12 |
||
|
92190
|
92190
92190-1536 TUBE,WATER |
92190-1536 |
from US $7.04 |
||
|
92190A
|
92190A
92190-1536 TUBE,WATER |
92190-1536 |
from US $7.04 |
