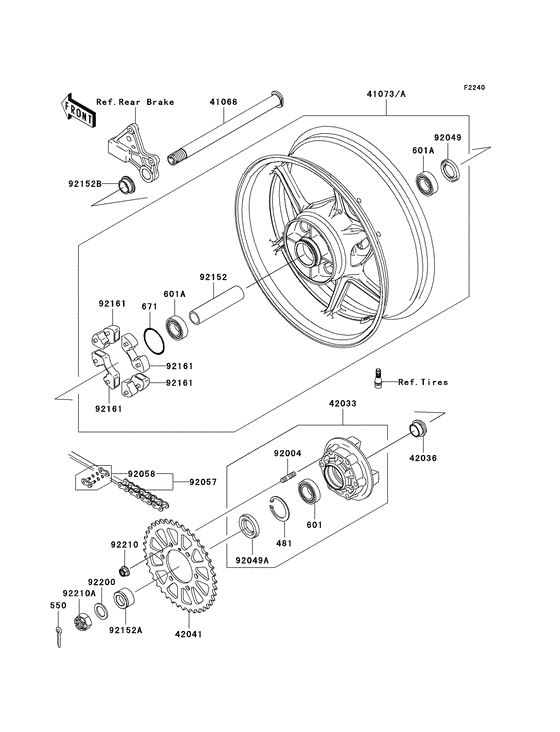

Rear wheel/chain Diagram Kawasaki ZX600 Ninja ZX-6R
- Year
- 2009
- Model code
- ZX600R9FA
- Sales region
- USA
- Engine Capacity
- 600
- Model
- Ninja ZX-6R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
481
|
481
481J5500 RING-SNAP |
481J5500 |
US $6.34 |
||
| replacement | |||||
|
481
|
481
92033-1274 RING-SNAP |
92033-1274 |
from US $5.60 |
||
|
550
|
550
550AA4040 PIN-COTTER,4.0X40Pin-cotter,4.0x40; |
550AA4040 |
from US $0.63 |
||
|
601
|
601
601B6006G BEARING-BALL,#6006GBearing-ball,#6006g; |
601B6006G |
from US $22.59 |
||
|
601A
|
601A
601B6205UU BEARING-BALL |
601B6205UU |
from US $24.24 |
||
|
671
|
671
671B2560 0 RING,60MMO ring,60mm; |
671B2560 |
from US $5.39 |
||
|
41068
|
41068
41068-0035 AXLE,RR,24X326Axle,rr; |
41068-0035 |
from US $81.06 |
||
| replacement | |||||
|
41068
|
41068
41068-0613 AXLE,RR,24X326Axle,rr; |
41068-0613 |
from US $59.54 |
||
|
41073A
|
41073A
41073-0106-19K WHEEL-ASSY,RR,BLACK/GWheel-assy,rr,black/green; |
41073-0106-19K |
from US $1,175.85 |
||
| replacement | |||||
|
41073A
|
41073A
41073-0614-19K WHEEL-ASSY,RR,BLACK/GWheel-assy,rr,black/green; |
41073-0614-19K |
from US $1,267.17 |
||
|
42033
|
42033
42033-0026 COUPLING-ASSY,RR HUBCoupling-assy,rr hub; |
42033-0026 |
from US $165.53 |
||
|
42036
|
42036
42036-1279 SLEEVE,RR HUB,L=22Sleeve,rr hub,l=22; |
42036-1279 |
from US $21.23 |
||
|
42041
|
42041
42041-0070 SPROCKET-HUB,43TSprocket-hub,43t; |
42041-0070 |
from US $93.11 |
||
|
92004
|
92004
92004-0028 STUD,10X19Stud,10x19; |
92004-0028 |
from US $4.75 |
||
|
92049
|
92049
92049-1375 SEAL-OIL,BJN 32 52 5Seal-oil,rr hub; |
92049-1375 |
from US $13.62 |
||
|
92049A
|
92049A
92049-1376 SEAL-OIL,PJN 40 55 8Seal-oil,pjn 40 55 8; |
92049-1376 |
from US $11.88 |
||
|
92057
|
92057
92057-0174 CHAIN,DRIVE,EK520MVXLChain,drive,ek520mvxl2x112l; |
92057-0174 |
from US $174.24 |
||
|
92058
|
92058
92058-0021 JOINT-CHAIN,DRIVEJoint-chain,drive; |
92058-0021 |
from US $8.08 |
||
|
92152
|
92152
92152-0214 COLLAR,RR HUB,L=137Collar,rr hub,l=137; |
92152-0214 |
US $40.07 |
||
|
92152A
|
92152A
92152-0543 COLLAR,RR HUB,LH,L=23Collar,rr hub,lh,l=23.5; |
92152-0543 |
from US $25.58 |
||
| replacement | |||||
|
92152A
|
92152A
92152-2771 Collar,Rr Hub,Lh,L=23Collar,rr hub,lh,l=23.5; |
92152-2771 |
from US $62.53 |
||
|
92152B
|
92152B
92152-0544 COLLAR,RR HUB,RH,L=16Collar,rr hub,rh,l=16; |
92152-0544 |
from US $22.44 |
||
| replacement | |||||
|
92152B
|
92152B
92152-2772 Collar,Rr Hub,Rh,L=16Collar,rr hub,rh,l=16; |
92152-2772 |
from US $58.79 |
||
|
92161
|
92161
92161-0342 DAMPER,SHOCK,RR HUBDamper,shock,rr hub; |
92161-0342 |
from US $17.34 |
||
|
92200
|
92200
92200-0278 WASHER,25.5X38X3.2Washer,25.5x38x3.2; |
92200-0278 |
from US $1.11 |
||
|
92210
|
92210
92210-0276 NUT,LOCK,FLANGED,10MMNut,lock,flanged,10mm; |
92210-0276 |
from US $1.43 |
||
|
92210A
|
92210A
92210-0280 NUT,CASTLE,24MMNut,castle,24mm; |
92210-0280 |
from US $7.13 |
||
