	Description	OEM Part #	Price
130	130 130BA0610 BOLT-FLANGED,6X10 BOLT-FLANGED，6X10	130BA0610	from US $0.79
11056	11056 11056-2054 BRACKET,FUSE BOX,ABS ヒユーズボツクス，ABS BRACKET，FUSE BOX，ABS	11056-2054	from US $2.69
11065	11065 11065-0752 CAP,BOLT CAP，BOLT	11065-0752	from US $1.11
26006	26006 26006-0001 FUSE,MINI BLADE,15A,B FUSE，MINI BLADE，15A，BLUE	26006-0001	from US $3.48
26006A	26006A 26006-0020 FUSE,MINI BLADE,25A,N FUSE，MINI BLADE，25A，NATURAL	26006-0020	from US $3.33
26006B	26006B 26006-0055 FUSE,MINI BLADE,7.5A, FUSE，MINI BLADE，7.5A，BROWN	26006-0055	from US $3.33
26006C	26006C 26006-1080 FUSE,MINI BLADE,30A,G FUSE，MINI BLADE，30A，GREEN	26006-1080	from US $3.33
26011	26011 26011-0275 WIRE-LEAD WIRE-LEAD	26011-0275	from US $8.08
26011A	26011A 26011-0776 WIRE-LEAD,BATTERY(-) バツテリ(-); リ-ド WIRE-LEAD，BATTERY(-)	26011-0776	from US $23.75
26011B	26011B 26011-0824 WIRE-LEAD,BATTERY(+) バツテリ(+); リ-ド WIRE-LEAD，BATTERY(+)	26011-0824	from US $35.62
26012	26012 26012-0088 YTX9-BS,12V 8AH BATTERY，YTX9-BS，12V 8AH	26012-0088	from US $151.40
	replacements
26012	26012 XYYTX9BS Ytx9-bs BATTERY，YTX9-BS，12V 8AH	XYYTX9BS	—
26012	26012 26012-0838 BATTERY,YTX9-BS,12V 8 BATTERY，YTX9-BS，12V 8AH	26012-0838	from US $147.55
26012	26012 26012-1524 Battery,Ytx9-Bs,12V 8 BATTERY，YTX9-BS，12V 8AH	26012-1524	US $170.85
26031	26031 26031-1550 ハ-ネスメイン HARNESS，MAIN	26031-1550	US $841.39
27002	27002 27002-0007 RELAY-ASSY RELAY-ASSY	27002-0007	—
	replacements
27002	27002 27002-0025 RELAY-ASSY RELAY-ASSY	27002-0025	—
27002	27002 27002-0050 Relay-assy RELAY-ASSY	27002-0050	from US $139.69
27002A	27002A 27002-1097 RELAY-ASSY,SIGNAL LAM RELAY-ASSY，SIGNAL LAMP	27002-1097	from US $41.89
27003	27003 27003-0091 HORN HORN	27003-0091	from US $62
39156	39156 39156-0912 PAD,DIAG. CONNECTOR ダイアグコネクタ PAD，DIAG. CONNECTOR	39156-0912	from US $11.09
39156A	39156A 39156-0962 PAD,T15 T15 PAD，T15	39156-0962	from US $4.75
39156B	39156B 39156-0963 PAD,30X80X2 30X80X2 PAD，30X80X2	39156-0963	from US $1.53
	replacement
39156B	39156B 39156-1983 PAD,30X80X1.5 PAD，30X80X2	39156-1983	from US $1.24
39156C	39156C 39156-0994 PAD,ABS UNIT ABS ユニツト PAD，ABS UNIT	39156-0994	from US $5.23
39156D	39156D 39156-1726 PAD,10X50X15 10X50X15 PAD，10X50X15	39156-1726	from US $0.95
53044	53044 53044-0018 TRIM TRIM	53044-0018	from US $2.69
56030	56030 56030-0796 LABEL,FUSE BOX1 ヒユーズボツクス1 LABEL，FUSE BOX1	56030-0796	from US $2.72
56030A	56030A 56030-0797 LABEL,FUSE BOX2 ヒユーズボツクス2 LABEL，FUSE BOX2	56030-0797	from US $2.72
56030B	56030B 56030-0798 LABEL,FUSE BOX,ABS ヒユーズボツクス，ABS LABEL，FUSE BOX3	56030-0798	from US $1.74
92072	92072 92072-0745 BAND,HARNESS ハーネス BAND，HARNESS	92072-0745	from US $1.74
92072A	92072A 92072-1392 BAND BAND	92072-1392	from US $6.18
	replacement
92072A	92072A 92072-1414 BAND BAND	92072-1414	from US $1.74
92154	92154 92154-0551 BOLT,FLANGED,6X16 BOLT，FLANGED，6X16	92154-0551	from US $0.63
92171	92171 92171-0926 CLAMP CLAMP	92171-0926	from US $4.91
92172	92172 92172-0262 SCREW,TAPPING,5X10 SCREW，TAPPING，5X10	92172-0262	from US $0.63
92173	92173 92173-0861 CLAMP CLAMP	92173-0861	from US $1.43
92173A	92173A 92173-0970 CLAMP CLAMP，SNAPPER	92173-0970	from US $2.38
92173B	92173B 92173-1008 CLAMP,84MM 84MM CLAMP，84MM	92173-1008	from US $2.85
92173C	92173C 92173-1009 CLAMP,68MM 68MM CLAMP，68MM	92173-1009	from US $2.38
92173D	92173D 92173-1020 CLAMP CLAMP	92173-1020	from US $9.82
92173E	92173E 92173-1062 CLAMP,CABLE,28MM ケーブル，28MM CLAMP，CABLE，28MM	92173-1062	from US $1.74

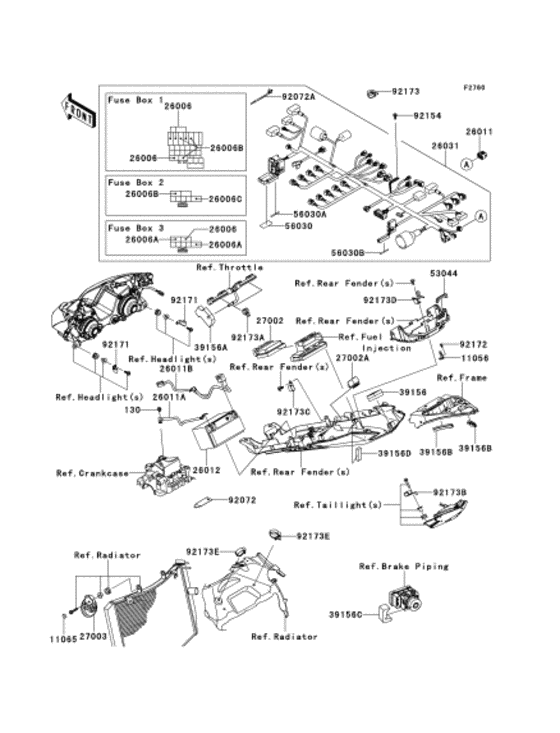

Chassis electrical equipment Diagram Kawasaki ZX636 Ninja ZX-6R ABS Lime Green (777) Southeast Asia 13841829-790859

Chassis electrical equipment Diagram Kawasaki ZX636 Ninja ZX-6R ABS Lime Green (777) Southeast Asia 13841829-790859
