Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 47031001000 Carburetor keihin pwk 28 2003 04	47031001000	US $420.04
2	2 54631245000 Starter piston cpl. 04	54631245000	US $91.65
7	7 54531607038 Idle jet 38 keihin 04	54531607038	US $12.22
7	7 54531607040 Idle jet 40 keihin 04	54531607040	US $11.83
7	7 54531607042 Idle jet 42 keihin 04	54531607042	US $12.16
7	7 54531607045 Idle jet 45 keihin 04	54531607045	US $11.95
7	7 54531607048 Idle jet 48 keihin 04	54531607048	US $11.63
7	7 54531607050 Idle jet 50 keihin 04	54531607050	US $11.48
8	8 57331008000 Arm pin float 04	57331008000	US $1.63
9	9 47031009000 Float cpl. pwk28 03 04	47031009000	US $47.86
10	10 47031010000 Float chamber gasket 04	47031010000	US $7.58
11	11 47031011000 Float chamber pwk28 03 04	47031011000	US $74.89
12	12 54531612100 Retaining plate for bleeder 04	54531612100	US $2.09
13	13 0770180230 O-ring 18,00x2,30 nbr 70 04	0770180230	US $2.02
14	14 54531699000 Plug m 18x1 04	54531699000	US $20.21
15	15 54531615000 Spring for adjustment screw 04	54531615000	US $2.75
17	17 54531617000 Adjustment screw 04	54531617000	US $7.60
18	18 54631118000 Spring 04	54631118000	US $9.66
19	19 54631219100 Adjustment screw m 5 04	54631219100	US $15.33
20	20 47031020000 Float needle cpl. 04	47031020000	US $26.40
21	21 47031021000 Needle jet 04	47031021000	US $34.05
22	22 47031022000 Clip for float valve 04	47031022000	—
	replacement
22	22 54531621000 Clamp 04	54531621000	US $3.18
23	23 54531623115 Main jet 115 keihin 04	54531623115	US $12.24
23	23 54531623118 Main jet 118 keihin 04	54531623118	US $12.02
23	23 54531623120 Main jet 120 keihin 04	54531623120	US $13.67
23	23 54531623122 Main jet 122 keihin 04	54531623122	US $13.50
23	23 54531623125 Main jet 125 keihin 04	54531623125	US $12.92
25	25 54531625000 Adjustment screw m 6x0,75 04	54531625000	US $7.23
26	26 52031126000 Hexagon nut m 6x0,75 din0439 04	52031126000	US $8.35
27	27 47031027000 Carburetor cover pwk28 03 04	47031027000	US $30.86
28	28 47031028000 Carburetor cover gasket pwk28 04	47031028000	US $5.56
29	29 54531629000 Clip for jet needle 04	54531629000	US $2.82
30	30 47031030000 Throttle valve spring 04	47031030000	US $10.12
31	31 47031031000 Spring cap 04	47031031000	US $6.38
34	34 47031034000 Jet needle n5hg keihin 04	47031034000	US $13.75
34	34 47031034100 Jet needle n5hf keihin 04	47031034100	US $14.25
34	34 47031034200 Jet needle n5hh keihin 04	47031034200	US $14.26
35	35 47031035000 Throttle valve 3,5 04	47031035000	US $200.46
37	37 52031137001 Pvc-hose 3x5mm 04	52031137001	US $6
38	38 31007007101 Pvc-hose 4x6mm 04	31007007101	US $2.38
40	40 0016040163 Hh collar screw m 4x16 ws=6 04	0016040163	US $0.66
	replacement
40	40 0016040133 Hh collar screw m 4x13 ws=6 04	0016040133	US $0.53
44	44 47031084000 Plastic-clip 04	47031084000	US $13.86
46	46 54531696000 Clamp 6 mm 04	54531696000	US $2.11

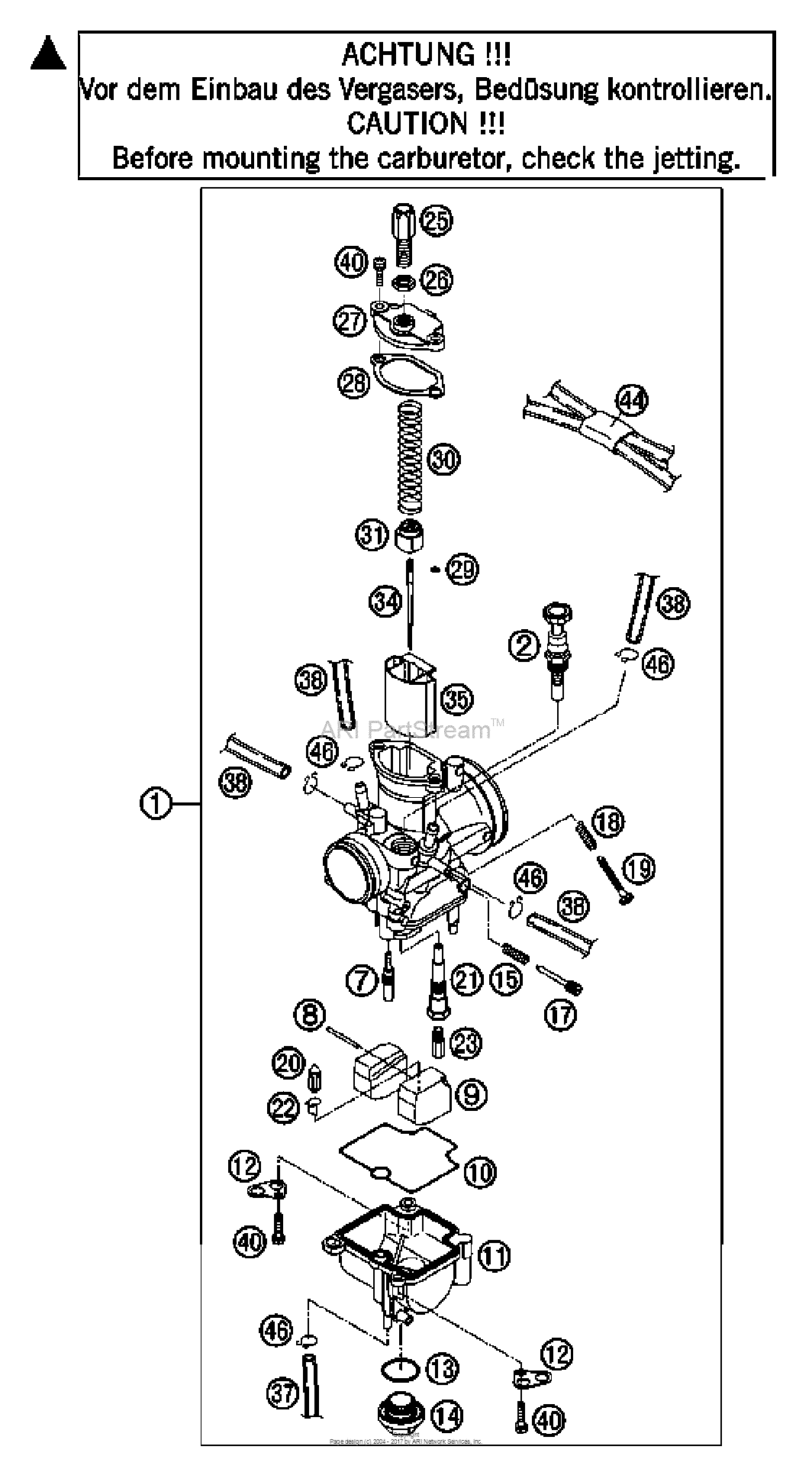

Carburetor Diagram KTM 105 105 SX US/EU 18073967-939109

Carburetor Diagram KTM 105 105 SX US/EU 18073967-939109
