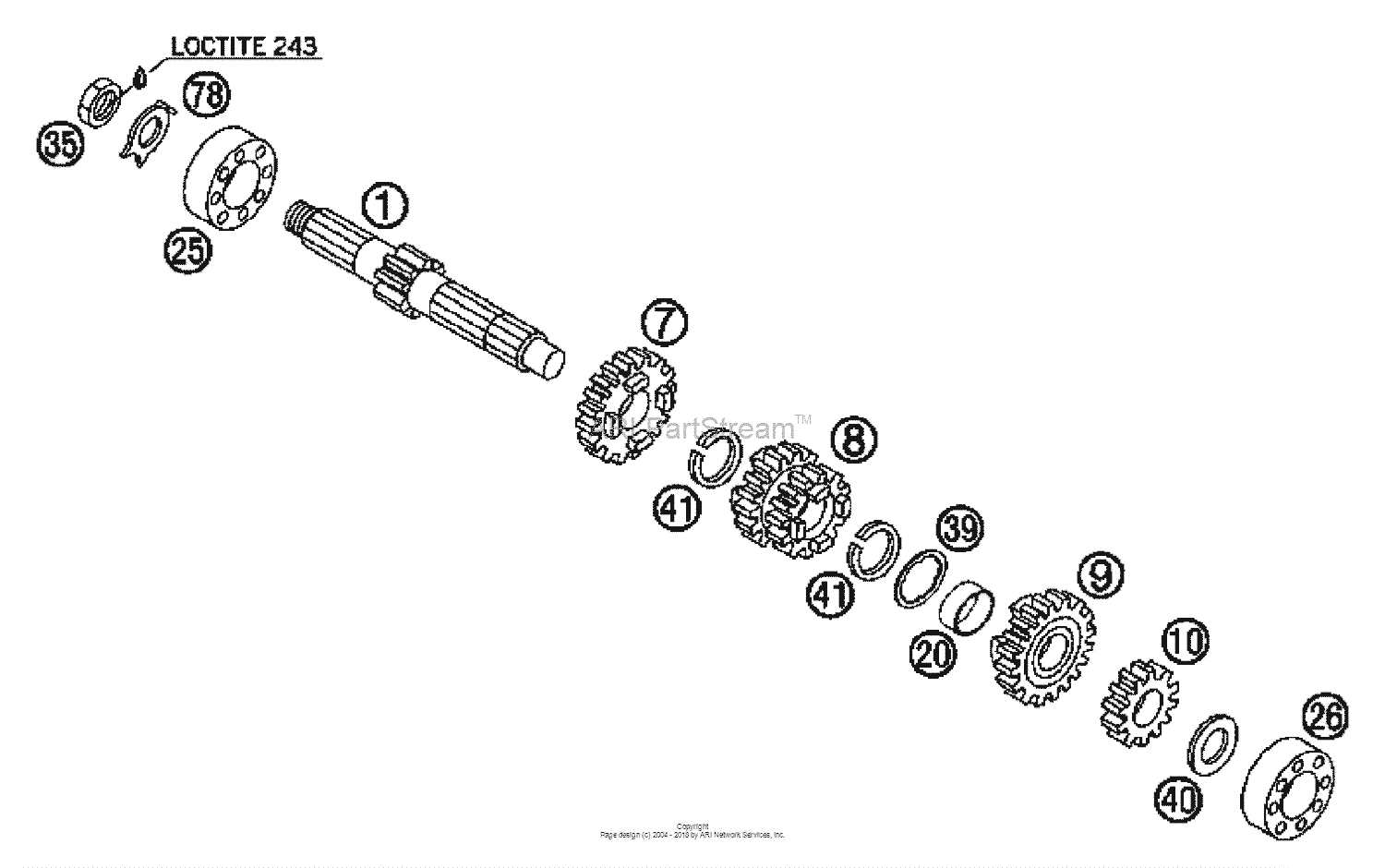

Transmission I Diagram KTM 105 105 SX
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 105
- Model
- 105 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47033001000 Main shaft 11-t 85 sx 20032003 |
47033001000 |
US $151.69 |
||
|
7
|
7
47033007000 Idler gear 5th g. 21-t 0303 |
47033007000 |
US $89.62 |
||
|
8
|
8
47033008000 Slid. gear 3rd/4th g. 16/19-t03 |
47033008000 |
US $96.88 |
||
|
9
|
9
47033009100 Idler gear 6th g. 20-t 0505 |
47033009100 |
US $86.75 |
||
|
10
|
10
47033010000 Solid gear 2nd g. 14-t 0303 |
47033010000 |
US $55.83 |
||
|
20
|
20
47033020000 Idler gear bushing 0505 |
47033020000 |
US $24.79 |
||
|
25
|
25
46033028000 Grooved ball bearing 20x42x1205 |
46033028000 |
US $38.90 |
||
|
26
|
26
47033026000 Ball bearing 16x35x805 |
47033026000 |
US $25.60 |
||
|
35
|
35
46030029000 Hh nut 14x1,25x7 ws=2205 |
46030029000 |
US $9.57 |
||
|
39
|
39
47033039000 Stop disk 0505 |
47033039000 |
US $4.17 |
||
|
40
|
40
47033041000 Stop disc 16x26x105 |
47033041000 |
US $1.45 |
||
|
41
|
41
47033096000 Axial circlip 19 sw05 |
47033096000 |
US $0.95 |
||
|
78
|
78
46030078000 Locking plate d=14mm05 |
46030078000 |
US $3.15 |
