	Description	OEM Part #	Price
1	1 05187D06 Fork 85/105 xc 2008 2008 Not Available	05187D06	US $1,814.89
29	29 59030029000 Hh nut m20x1,5 ws=27 right WS=27	59030029000	US $7.62
32	32 47001032014 Bot.triple clamp cpl. 85 sx 03 03	47001032014	—
34	34 47001034014 Top triple clamp 85 sx 2003 2003	47001034014	—
38	38 50301038000 Handlebar clamp d=22mm 2001 D=22MM 2001	50301038000	US $21.54
39	39 59001039000 Handlebar support 22mm 2t 2000 2000	59001039000	US $65.47
45	45 0912100250 Ah-Collar Screw M10X25 Isa45 2000	0912100250	—
	replacement
45	45 0032100256S Ah-collar screw m10x25 isa45 2000	0032100256S	US $5.12
50	50 0025050166 Hh collar screw m5x16 tx30 TX30	0025050166	US $2.60
52	52 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
55	55 0025080306 Hh collar screw m8x30 tx40 TX40	0025080306	US $3.89
79	79 49001086000 Covering cap TX40	49001086000	US $6.10
80	80 0770021300 O-ring 40,94x2,62 nbr70 TX40	0770021300	US $2.31
81	81 49001081000 Tapered roller bearing 32004x TX40	49001081000	US $38.74
85	85 5460108500004 Brake hose clamp orange 06 06	5460108500004	—
	replacement
85	85 54601085000X4 Break hose clip orange 06	54601085000X4	US $5.17
86	86 46001086000 Protection ring 20,1x39x5 06	46001086000	US $8.52
87	87 0770360030 O-ring 36,00x3,00 nbr 06	0770360030	US $1.60
90	90 0985050003 Self Locking Nut Din0985-M 5 06	0985050003	US $3.26
92	92 59001092050 Special Screw M6X12,5 Ws=8 WS=8	59001092050	US $2.35
94	94 4700109400004 Fork Protector L/s+R/s 85Sx 06 06	4700109400004	—
	replacement
94	94 47001094000X4 Fork protector l/s+r/s 85sx 06 06	47001094000X4	US $27.22

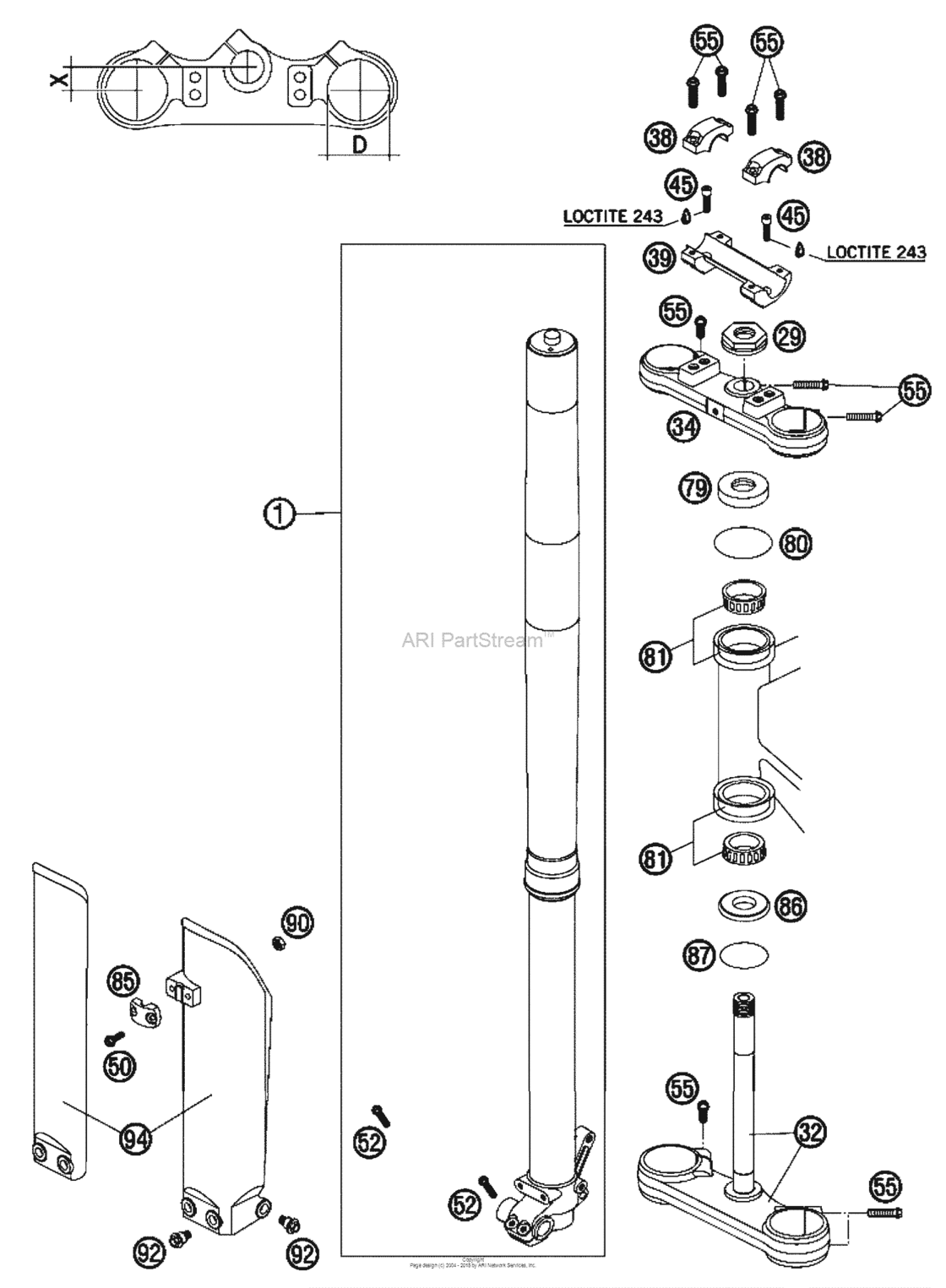

Front Fork Diagram KTM 105 105 XC U.S.A. 18074093-939117

Front Fork Diagram KTM 105 105 XC U.S.A. 18074093-939117
