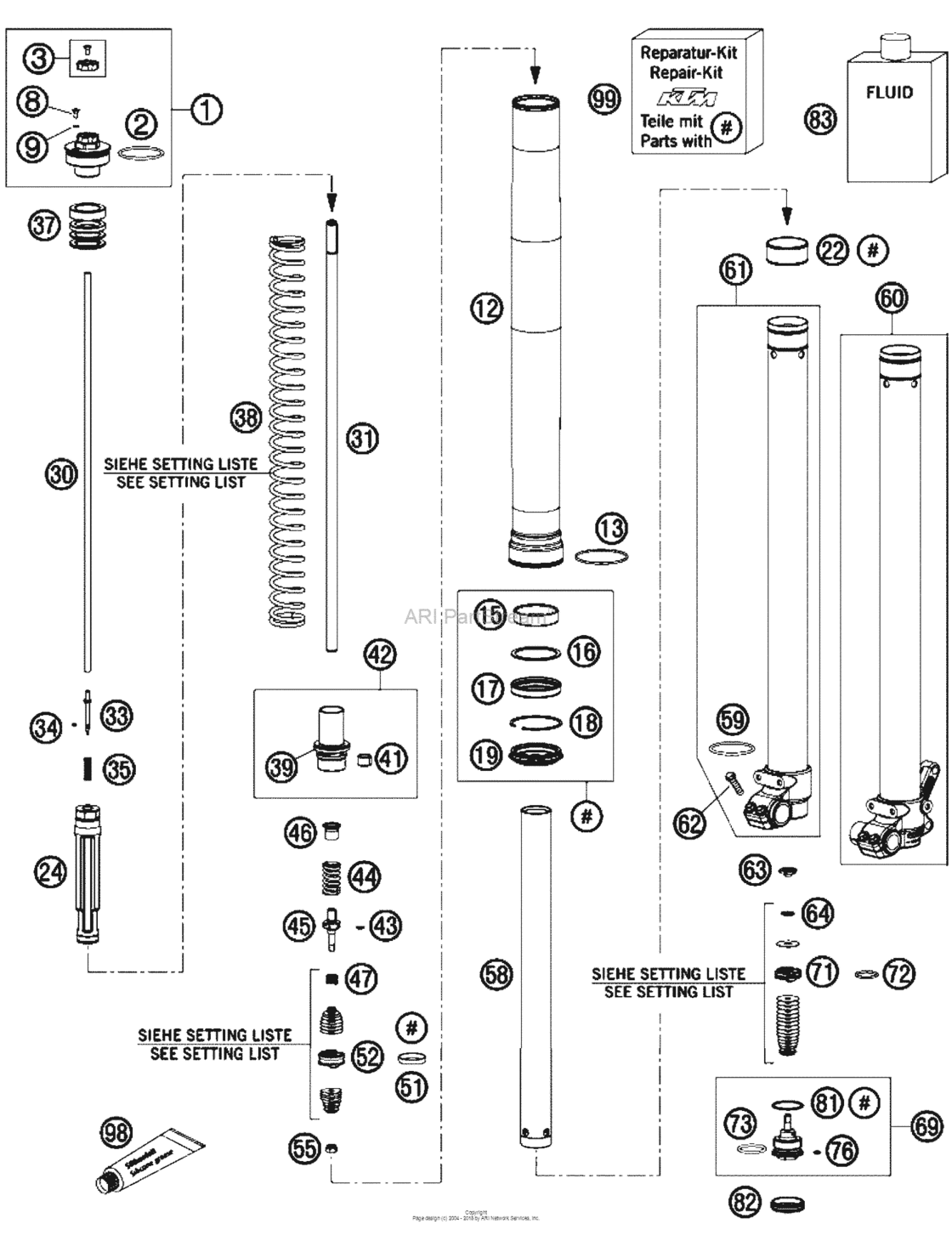

Front Fork Disassembled Diagram KTM 105 105 XC
- Year
- 2008
- Sales region
- U.S.A.
- Engine Capacity
- 105
- Model
- 105 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43570395S Screw cap m51x1,5 cpl.06 |
43570395S |
US $58.38 |
||
|
2
|
2
46811042 O-Ring 40,00X2,00 Wp06 |
46811042 |
US $2.89 |
||
|
3
|
3
48600564S Setting knob + screw06 |
48600564S |
US $33.61 |
||
|
8
|
8
48600481 Vent screw m4x806 |
48600481 |
US $2.33 |
||
|
9
|
9
48600046 O-ring nbr 3x1,506 |
48600046 |
US $2.47 |
||
|
12
|
12
43570254 Outer Tube L=510 D=49/53 BlackL=510 D=49/53 |
43570254 |
US $520.05 |
||
| replacement | |||||
|
12
|
12
43570254E Outer tube l=510 d=49/53 blackL=510 D=49/53 |
43570254E |
US $503.29 |
||
|
13
|
13
43570099 Guiding ring d=53mmD=53MM |
43570099 |
US $26.25 |
||
|
15
|
15
43570204 Du-bush 43x47x12 daidoD=53MM |
43570204 |
US $30.43 |
||
| replacement | |||||
|
15
|
15
43570618 Guide Bushing 43X47X12D=53MM |
43570618 |
US $9.08 |
||
|
16
|
16
43570092 Support ring 45 x 52,5 x 1,5D=53MM |
43570092 |
US $16.83 |
||
|
17
|
17
43570201 Oil Seal Ring 43 X 52,9 X 9,5D=53MM |
43570201 |
US $26.45 |
||
| replacement | |||||
|
17
|
17
43570623 Oil Seal Ring 43X52,9X11,4D=53MM |
43570623 |
US $21.03 |
||
|
18
|
18
43570008 Lock washer sb53D=53MM |
43570008 |
US $2.89 |
||
|
19
|
19
43570202 Dust Stripper 43 X 53,4 X 11,8D=53MM |
43570202 |
US $23.36 |
||
|
22
|
22
43570203 Du-bush 42x44x20D=53MM |
43570203 |
US $30.43 |
||
|
24
|
24
43570396S Stop l135mm d28,6mm d12mm cpl.D=53MM |
43570396S |
US $55.62 |
||
|
30
|
30
48600695 Adjustment tube l=442 mmL=442 MM |
48600695 |
US $10.57 |
||
|
31
|
31
48600694 Piston rod d=12mm l=476mmD=12MM L=476MM |
48600694 |
US $109.70 |
||
|
33
|
33
48600277 Adjuster needle 0707 |
48600277 |
US $9.33 |
||
|
34
|
34
48600298 O-ring 2x1,5 nbr07 |
48600298 |
US $4.28 |
||
|
35
|
35
48600444 Rebound spring c=4n/mmC=4N/MM |
48600444 |
US $3.52 |
||
|
37
|
37
43570133 Spacer 26x38x2,5C=4N/MM |
43570133 |
US $57.70 |
||
|
37
|
37
43570134 Spacer 26x38x5C=4N/MM |
43570134 |
US $48.94 |
||
|
37
|
37
43570135 Spacer 26x38x10C=4N/MM |
43570135 |
US $48.94 |
||
|
37
|
37
43570136 Spacer 26x38x1,5C=4N/MM |
43570136 |
US $48.94 |
||
|
38
|
38
95010031S Spring 3,2 n/mm set d=4,2mmD=4,2MM;(As required) |
95010031S |
US $223.13 |
||
|
38
|
38
95010032S Spring 3,4 n/mm set d=4,4mmD=4,4MM;(As required) |
95010032S |
US $201.69 |
||
|
38
|
38
95010033S Spring 3,6 n/mm set(As required) |
95010033S |
US $201.69 |
||
|
39
|
39
43570131 Interm. ring 26,2x38,5x3(As required) |
43570131 |
US $15.28 |
||
|
41
|
41
48600430 Du bush for piston rod(As required) |
48600430 |
US $5.53 |
||
|
42
|
42
48600600S1 Screw sleeve m29,3x1 l65 cpl.(As required) |
48600600S1 |
US $27.46 |
||
|
43
|
43
48600299 O-ring 6x1,2 nbr(As required) |
48600299 |
US $3.52 |
||
|
44
|
44
48600511 Rebound spring l=32 c=17L=32 C=17 |
48600511 |
US $7.62 |
||
| replacement | |||||
|
44
|
44
48600511S Rebound Spring L32 C17 CplL=32 C=17 |
48600511S |
US $4.01 |
||
|
45
|
45
48600513 Tap rebound 0707 |
48600513 |
US $32.69 |
||
|
46
|
46
48600525 Guiding bush rebound spring07 |
48600525 |
US $24.72 |
||
|
47
|
47
48600382 Shuttle valve spring c=0,4C=0,4 |
48600382 |
US $2.67 |
||
|
51
|
51
48600060 Piston ring 5x1x84C=0,4 |
48600060 |
US $6 |
||
|
52
|
52
48600042 Piston rebound d=27,7D=27,7 |
48600042 |
US $48.96 |
||
|
55
|
55
40540486 Nut m6x0,5 reboundD=27,7 |
40540486 |
US $5.20 |
||
|
58
|
58
48600353 Tube 29,3x1x370 d=8,5mm aluD=8,5MM |
48600353 |
US $148.44 |
||
|
59
|
59
43570023 O-ring nbr 41x2D=8,5MM |
43570023 |
US $3.69 |
||
|
60
|
60
43570214S1 Axle clamp l/s + tube cpl. 0808 |
43570214S1 |
US $641.63 |
||
|
61
|
61
43570213S1 Axle clamp r/s + tube cpl. 0808 |
43570213S1 |
US $641.63 |
||
| replacement | |||||
|
61
|
61
43570527S1 Axle Clamp R/s + Tube Cpl08 |
43570527S1 |
US $600.07 |
||
|
62
|
62
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
62
|
62
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
63
|
63
48600163 Check valve nut m6x0,5 d=2D=2 |
48600163 |
US $13.80 |
||
|
64
|
64
48600202 Spring check valve d=0,7D=0,7 |
48600202 |
US $2.28 |
||
|
69
|
69
48600586S
Tap compression cpl. 07
07 |
48600586S |
— | ||
| replacement | |||||
|
69
|
69
48600586E Tap Compression Cpl07 |
48600586E |
US $96.46 |
||
|
71
|
71
48600047 Piston compression d=27,9D=27,9 |
48600047 |
US $49.96 |
||
|
72
|
72
46811499 O-ring nbr 21x2D=27,9 |
46811499 |
US $1.48 |
||
|
73
|
73
35480320 O-ring nbr 24x2D=27,9 |
35480320 |
US $2.70 |
||
|
76
|
76
48600049 O-ring nbr 8x2D=27,9 |
48600049 |
US $3.67 |
||
|
81
|
81
48600004 Copper washer 29,5x33,5x1D=27,9 |
48600004 |
US $1.65 |
||
|
82
|
82
48600141 Rubber cap d=35mmD=35MM |
48600141 |
US $3.42 |
||
|
83
|
83
48600401S1 Fork Oil Sae4 5L2005 |
48600401S1 |
US $273.85 |
||
| replacement | |||||
|
83
|
83
48601166S1 Fork Oil Sae4 5L2005 |
48601166S1 |
US $218.08 |
||
|
98
|
98
T511 Silicone grease f. dust stri2005 |
T511 |
US $132.91 |
||
|
99
|
99
R510 Repair-kit gasket 4357 mxma 0303 |
R510 |
US $254.24 |
||
