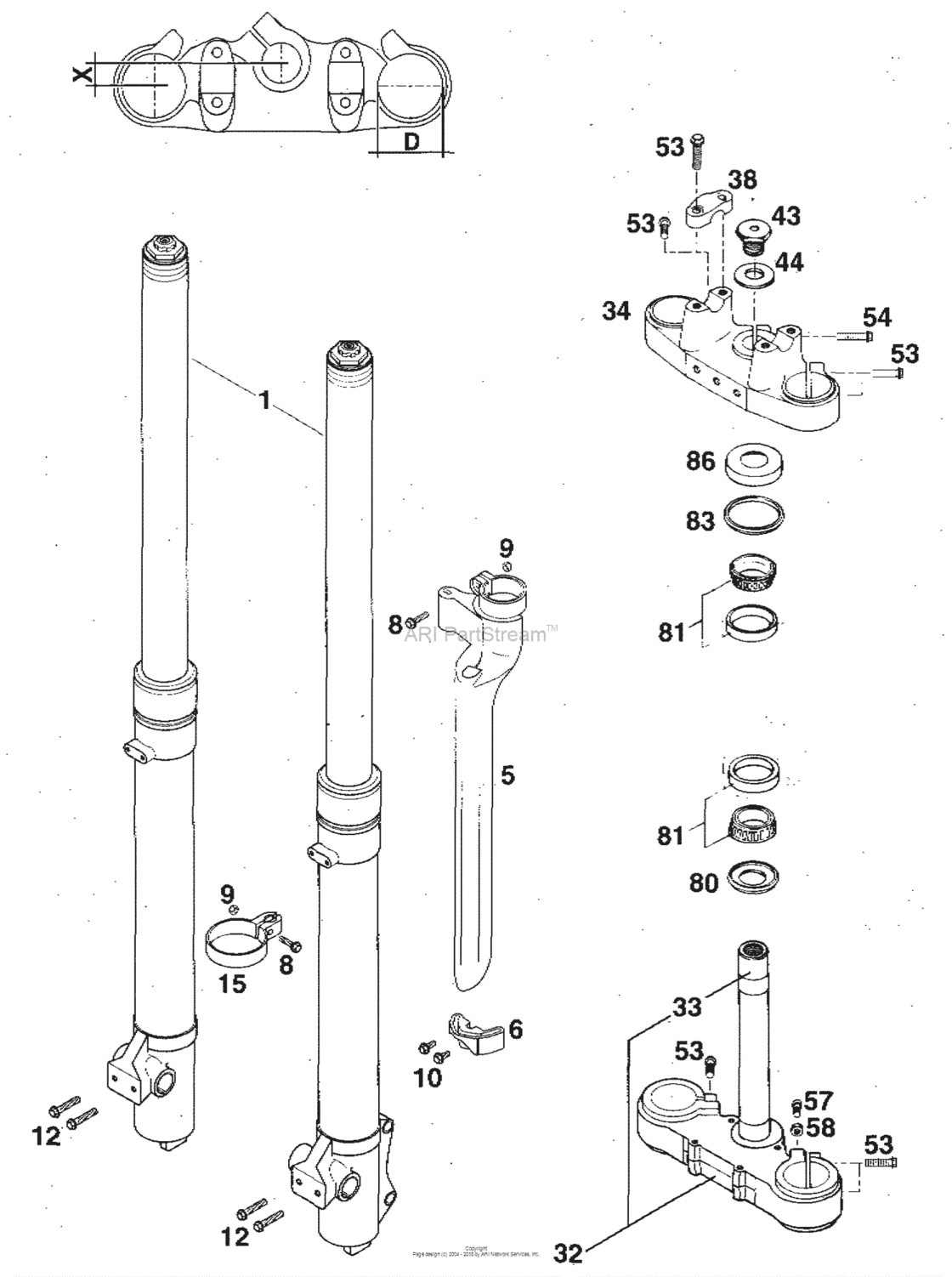

Front Fork Marrzocchi 45 Diagram KTM 125 125 EGS
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 EGS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
5460139000030 Fork protection guide r/s '9797 |
5460139000030 |
US $4.45 |
||
|
1
|
1
124729
Fork Legs Cpl
96 |
124729 |
— | ||
|
1
|
1
124730
Fork Legs Cpl
96 |
124730 |
— | ||
|
5
|
5
5460129100030 Fork protector l/s marzoc.'9797 |
5460129100030 |
US $13.80 |
||
|
5
|
5
5460139100030 Fork protector r/s marzocchi9797 |
5460139100030 |
US $13.80 |
||
|
6
|
6
5460129000030
Fork protection guide l/s '97
97 |
5460129000030 |
— | ||
|
8
|
8
0015050203
Hh Collar Screw M5X20 Tx30
WS=8 |
0015050203 |
— | ||
| replacement | |||||
|
8
|
8
0025050206 Hh collar screw m5x20 tx30WS=8 |
0025050206 |
US $1.33 |
||
|
9
|
9
0985050003 Self Locking Nut Din0985-M 5WS=8 |
0985050003 |
US $3.26 |
||
|
10
|
10
0015050123
Hh collar screw m 5x12 ws=8
WS=10 |
0015050123 |
— | ||
| replacement | |||||
|
10
|
10
0025050126 Hh collar screw m5x12 tx30WS=10 |
0025050126 |
US $3.38 |
||
|
12
|
12
520196
H H Collar Screw
WS=10 |
520196 |
— | ||
|
15
|
15
54601099000
Speedometer cable guide marzo.
WS=10 |
54601099000 |
— | ||
|
32
|
32
50201132044
Bot.fork plate x=18mm/d=45mm
WS=10 |
50201132044 |
— | ||
|
33
|
33
50101033100 Fork Tube L=24491 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=24491 |
54801133000 |
US $78.15 |
||
|
34
|
34
50201134000
Top fork plate x=18mm/d=45mm
91 |
50201134000 |
— | ||
|
38
|
38
54601038000
Handlebar Clamp
95 |
54601038000 |
— | ||
| replacement | |||||
|
38
|
38
50301038000 Handlebar clamp d=22mm 200195 |
50301038000 |
US $21.54 |
||
|
43
|
43
56401043000 Hh screw m20x1,595 |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
43
|
43
50301036000 Steer.head screw m20x1,5 ws=2795 |
50301036000 |
US $12.65 |
||
|
44
|
44
56401044000
Washer 21x38x3
95 |
56401044000 |
— | ||
|
53
|
53
0015080303
Hh Collar Screw M8X30 Tx40
WS=10 |
0015080303 |
— | ||
| replacement | |||||
|
53
|
53
0025080306 Hh collar screw m8x30 tx40WS=10 |
0025080306 |
US $3.89 |
||
|
54
|
54
0015080353 Hh Collar Screw M 8X35 Ws=10WS=10 |
0015080353 |
US $7.12 |
||
|
57
|
57
0933070203 Hh screw din0933-m 7x20WS=10 |
0933070203 |
US $1.58 |
||
|
58
|
58
0934070003 Hexagon nut din0934-m 7WS=10 |
0934070003 |
US $0.61 |
||
|
80
|
80
54601084100 O-Ring Support W. Sealing LipWS=10 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
80
|
80
77701084000 O-Ring Support W. Sealing LipWS=10 |
77701084000 |
US $21.15 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 06WS=10 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06WS=10 |
54201081100 |
US $53.18 |
||
|
83
|
83
54601184000 Stearing head gasket topWS=10 |
54601184000 |
US $7.74 |
||
|
86
|
86
54201086000 Steering Head CoverWS=10 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head CoverWS=10 |
78101086000 |
US $5.08 |
||
