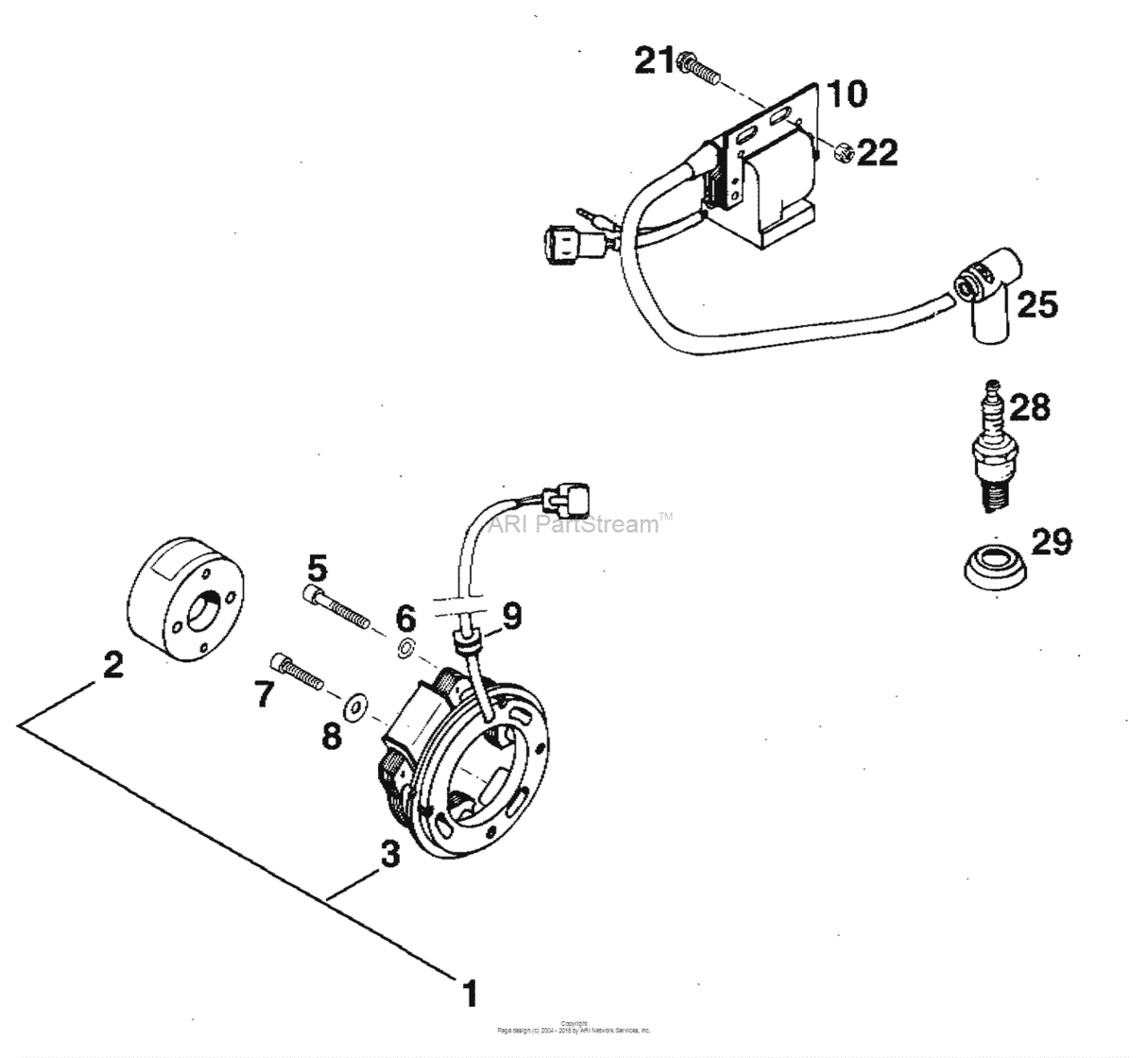

Ignition System Pvl Diagram KTM 125 125 EGS
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 EGS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50231402000
Ignition Cpl
94 |
50231402000 |
— | ||
| replacement | |||||
|
1
|
1
50231402051 Stator pvl 125 '9494 |
50231402051 |
US $170.77 |
||
|
2
|
2
50231402050 Rotor pvl 125 '94125'94 |
50231402050 |
US $224.81 |
||
|
3
|
3
50231402051 Stator pvl 125 '94125'94 |
50231402051 |
US $170.77 |
||
|
5
|
5
0912050353 Ah screw din912 m5x35125'94 |
0912050353 |
US $1.17 |
||
|
6
|
6
0125050003 Washer Din0125-A 5,3125'94 |
0125050003 |
US $2.18 |
||
|
7
|
7
0912050253 Ah screw din0912-m 5x25125'94 |
0912050253 |
US $0.61 |
||
|
8
|
8
0349000050 Washer din7349-5x15x2125'94 |
0349000050 |
US $0.65 |
||
|
9
|
9
51031004000
Cable guide
125'94 |
51031004000 |
— | ||
|
10
|
10
50231406000 Ignition modul pvl 96354021125'94 |
50231406000 |
US $468.91 |
||
|
21
|
21
0015060203
Hh Collar Screw M 6X20 Ws=8
SW=8 |
0015060203 |
— | ||
| replacement | |||||
|
21
|
21
0025060206 Hh collar screw m6x20 tx30SW=8 |
0025060206 |
US $1.97 |
||
|
22
|
22
0985060003 Self Lock. Nut Din0985-M 6SW=8 |
0985060003 |
US $2.60 |
||
|
25
|
25
54531010000 Spark Plug ProtectNGK |
54531010000 |
US $34.54 |
||
| replacement | |||||
|
25
|
25
47039090000 Spark plug cap ngk reinforc.04NGK |
47039090000 |
US $24.26 |
||
|
28
|
28
54331093210 Spark plug ngk br10egNGK |
54331093210 |
US $9.55 |
||
|
29
|
29
50231012000 Sealing cup for spark plugNGK |
50231012000 |
US $3.91 |
||
