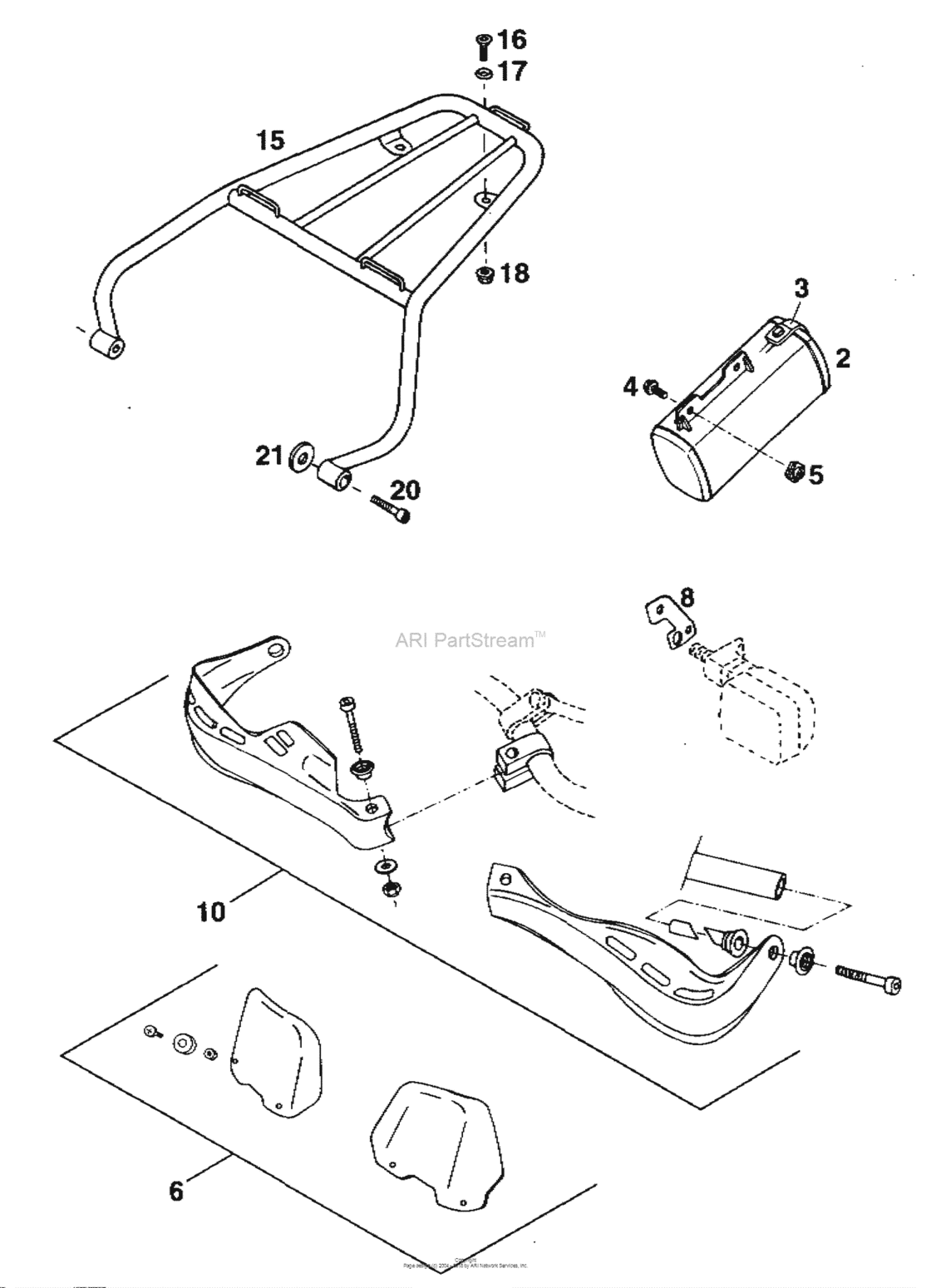

Accessory Diagram KTM 125 125 EXC
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
58012058000 Tool box cpl. '9292 |
58012058000 |
US $47.16 |
||
|
3
|
3
58012058050 Rubber for tool box '9292 |
58012058050 |
US $9.28 |
||
|
4
|
4
0014060203 Hh Collar Screw M 6X20 Ws=8SW=8 |
0014060203 |
US $3.26 |
||
|
5
|
5
50235033300
Snap-nut holder m6 kp142
SW=8 |
50235033300 |
— | ||
| replacement | |||||
|
5
|
5
54603048100 Range Change Metal Nut M6SW=8 |
54603048100 |
US $5.27 |
||
|
6
|
6
50202079050 Screen cpl.l+r/sSW=8 |
50202079050 |
US $58.33 |
||
|
8
|
8
58311021000
Flasher light support lc4'94
LC4'94 |
58311021000 |
— | ||
|
10
|
10
50202079044
Superseded By 951110
LC4'94 |
50202079044 |
— | ||
|
15
|
15
50212011100
Superseded By 51112010000
94 |
50212011100 |
— | ||
|
16
|
16
0991060203 Flat Head Din7991-M 6X2094 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
16
|
16
0991060202 Flat head din7991-m 6x2094 |
0991060202 |
US $3.26 |
||
|
17
|
17
40006006000 Washer 6mm94 |
40006006000 |
US $2.18 |
||
|
18
|
18
56509064000 Self Locking Nut M6 10.994 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
18
|
18
56509064100 Self Locking Nut M6 10.994 |
56509064100 |
US $1.04 |
||
|
20
|
20
0912060303 Ah screw din0912-m 6x3094 |
0912060303 |
US $1.60 |
||
|
21
|
21
50232050001 Steel washer 6,4x17x394 |
50232050001 |
US $4.86 |
||
