	Description	OEM Part #	Price
	59003041050 Footrest R/s ONLY FOR 400 EXC RACING	59003041050	—
	replacement
	47103041000 Footrest R/s ONLY FOR 400 EXC RACING	47103041000	US $43.49
	51203049000 Footrest Bracket Rear R/s 200 (Exc Sgp) ONLY FOR 400 EXC RACING	51203049000	—
	49003350000 Footrest rear r/s cpl. ONLY FOR 400 EXC RACING	49003350000	US $35.17
1	1 50303001300 Frame 125/200 Exc Eu/aus 2000 (With Lock Body, Silver) ONLY FOR 400 EXC RACING	50303001300	—
2	2 51203002044 Sub Frame 125 Exe Cpl.alu 2000 (200 Exc Sg) ONLY FOR 400 EXC RACING	51203002044	—
5	5 50303013000 Reinforcing bracket 125 '98 ONLY FOR 400 EXC RACING	50303013000	US $17.14
7	7 50307020000 Rubber buffer for tank '98 ONLY FOR 400 EXC RACING	50307020000	US $3.25
8	8 59001037000 Special screw m8x26 ws=10 ONLY FOR 400 EXC RACING	59001037000	US $2.09
9	9 0934080003 Hexagon Nut Din0934-M 8 ONLY FOR 400 EXC RACING	0934080003	US $3.26
12	12 54603013000 Engine brac.scr. m10x105 ws=13 ONLY FOR 400 EXC RACING	54603013000	US $9.74
13	13 54610052000 Sprocket screw-ah m8x20 ws=6 ONLY FOR 400 EXC RACING	54610052000	US $2.35
	replacement
13	13 0019080206 Counter-sunk screw isa45 m8x20 ONLY FOR 400 EXC RACING	0019080206	US $1.82
14	14 54510052100 Counter-Sunk Screw Isa45 M8X26 ONLY FOR 400 EXC RACING	54510052100	—
	replacement
14	14 0019080266S Counter-sunk screw isa45 m8x26 ONLY FOR 400 EXC RACING	0019080266S	US $2.23
15	15 56530079000 Collar screw m8x42 ws=13 10.9 ONLY FOR 400 EXC RACING	56530079000	—
	replacement
15	15 56530079000S Hh Collar Screw M8X44 Ws13 ONLY FOR 400 EXC RACING	56530079000S	US $1.60
16	16 54606004000 Plug 37mm ONLY FOR 400 EXC RACING	54606004000	US $1.89
18	18 54403135000 Plastic cap sfl10 ONLY FOR 400 EXC RACING	54403135000	US $1.31
19	19 36111021000 Plug ONLY FOR 400 EXC RACING	36111021000	US $0.61
21	21 0625006087 Grooved Ball Bear. 608 2Rs C3 ONLY FOR 400 EXC RACING	0625006087	US $19.19
22	22 0015080350 Hh Collar Screw M8X35 Tx40 ONLY FOR 400 EXC RACING	0015080350	—
	replacement
22	22 0025080356S Hh Collar Screw M8X35 Tx40 ONLY FOR 400 EXC RACING	0025080356S	US $2.72
23	23 74003021000 Bushing 8.2 x 12 x 6 ONLY FOR 400 EXC RACING	74003021000	US $2.14
24	24 52303053000 Chain roll d=30mm 125-380 '99 ONLY FOR 400 EXC RACING	52303053000	US $6.75
25	25 54310086200 Self Locking Nut M8 10.9 ONLY FOR 400 EXC RACING	54310086200	US $1.56
26	26 54310086100 Self locking nut m10 cu ws=14 ONLY FOR 400 EXC RACING	54310086100	US $2.55
30	30 42007049000 Plastic cap ONLY FOR 400 EXC RACING	42007049000	—
33	33 36003014000 Lock washer 8mm ONLY FOR 400 EXC RACING	36003014000	US $0.46
39	39 0015080303 Hh Collar Screw M8X30 Tx40 ONLY FOR 400 EXC RACING	0015080303	—
	replacement
39	39 0025080306 Hh collar screw m8x30 tx40 ONLY FOR 400 EXC RACING	0025080306	US $3.89
40	40 59003040050 Foot ped l/s exc silver 2000 ONLY FOR 400 EXC RACING	59003040050	—
	replacement
40	40 47103040000 Footrest L/s ONLY FOR 400 EXC RACING	47103040000	US $44.56
41	41 54603044000 Bolt for footrest 9,8 x 50 ONLY FOR 400 EXC RACING	54603044000	US $7.62
42	42 54603041000 Footrest Spring L/s & R/s ONLY FOR 400 EXC RACING	54603041000	US $3.52
43	43 0125100003 Washer Din0125-A10,5 ONLY FOR 400 EXC RACING	0125100003	US $1.19
44	44 0094032253 Pin din0094-3,2x25 steel ONLY FOR 400 EXC RACING	0094032253	US $1.12
	replacement
44	44 0094032250 Pin din0094-3,2x25 steel ONLY FOR 400 EXC RACING	0094032250	US $1.12
46	46 50303089000 Angle piece '97 ONLY FOR 400 EXC RACING	50303089000	US $4.52
47	47 55007016001 Pvc-hose 7x10 per meter ONLY FOR 400 EXC RACING	55007016001	US $5.98
50	50 54607061000 Sprocket cover ONLY FOR 400 EXC RACING	54607061000	US $15.44
53	53 54613038150 Bushing 6,5x8x11 ONLY FOR 400 EXC RACING	54613038150	US $3.11
55	55 0015060203 Hh Collar Screw M 6X20 Ws=8 ONLY FOR 400 EXC RACING	0015060203	—
	replacement
55	55 0025060206 Hh collar screw m6x20 tx30 ONLY FOR 400 EXC RACING	0025060206	US $1.97
56	56 50308053000 Bush For Spoiler 6X11X16X7,5 ONLY FOR 400 EXC RACING	50308053000	US $5.80
57	57 44011076200 Cable tie 200/3,6mm black ONLY FOR 400 EXC RACING	44011076200	US $0.39
58	58 0015060403 Hh Collar Screw M6X40 Tx30 ONLY FOR 400 EXC RACING	0015060403	—
	replacement
58	58 0025060406 Hh collar screw m6x40 tx30 ONLY FOR 400 EXC RACING	0025060406	US $2.23
60	60 51203048000 Footrest Bracket Rear L/s 200 (Exc Sgp) ONLY FOR 400 EXC RACING	51203048000	—
62	62 49003250000 Footrest rear l/s cpl. ONLY FOR 400 EXC RACING	49003250000	US $35.17
63	63 49009082000 Self locking nut m10 fk8 ONLY FOR 400 EXC RACING	49009082000	US $2.31
64	64 0107080203 Ah oval h.screw din0170-m 8x20 ONLY FOR 400 EXC RACING	0107080203	US $1.60

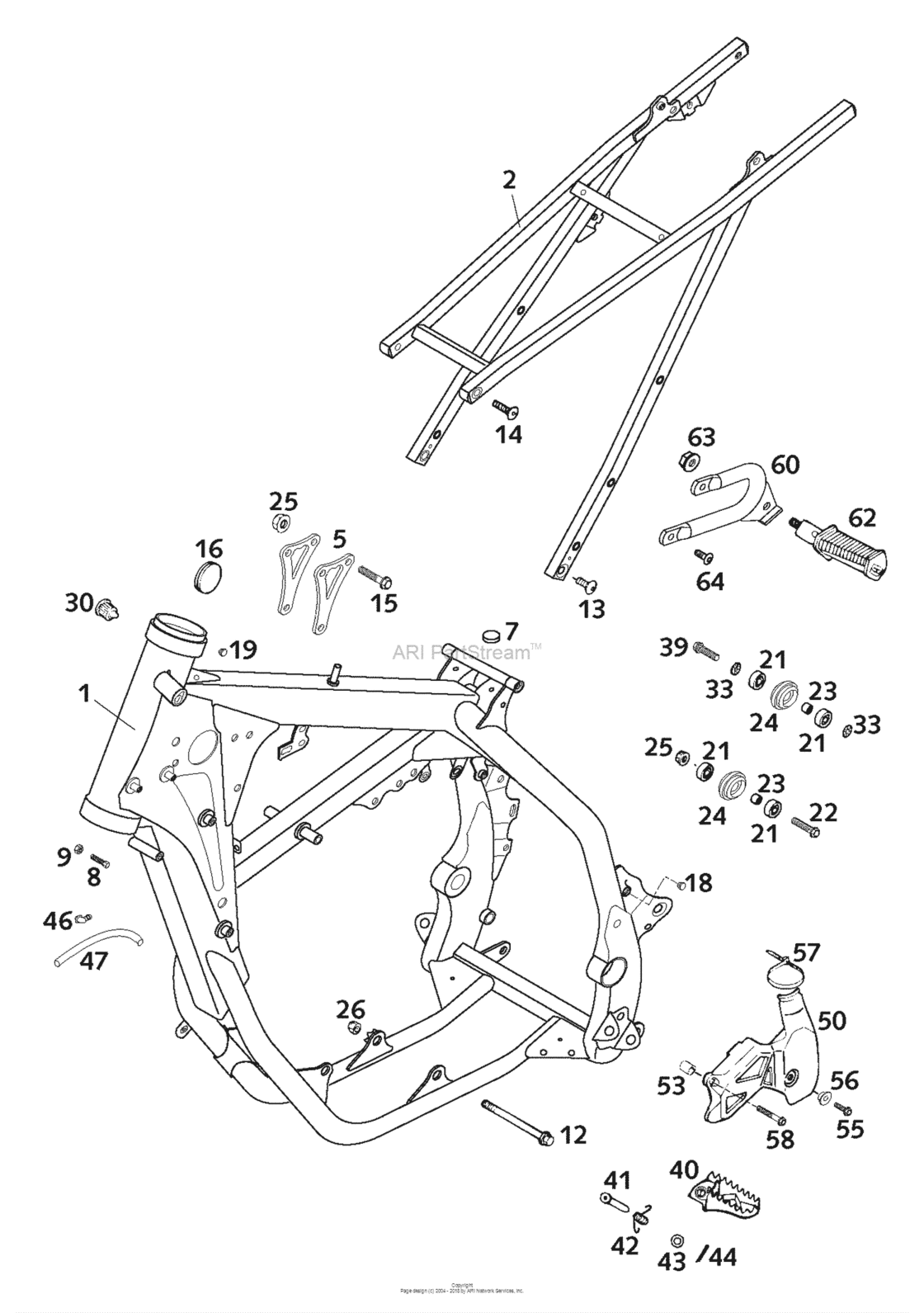

Frame, Sub Frame Diagram KTM 125 125 EXE US/EU 18075916-939196

Frame, Sub Frame Diagram KTM 125 125 EXE US/EU 18075916-939196
