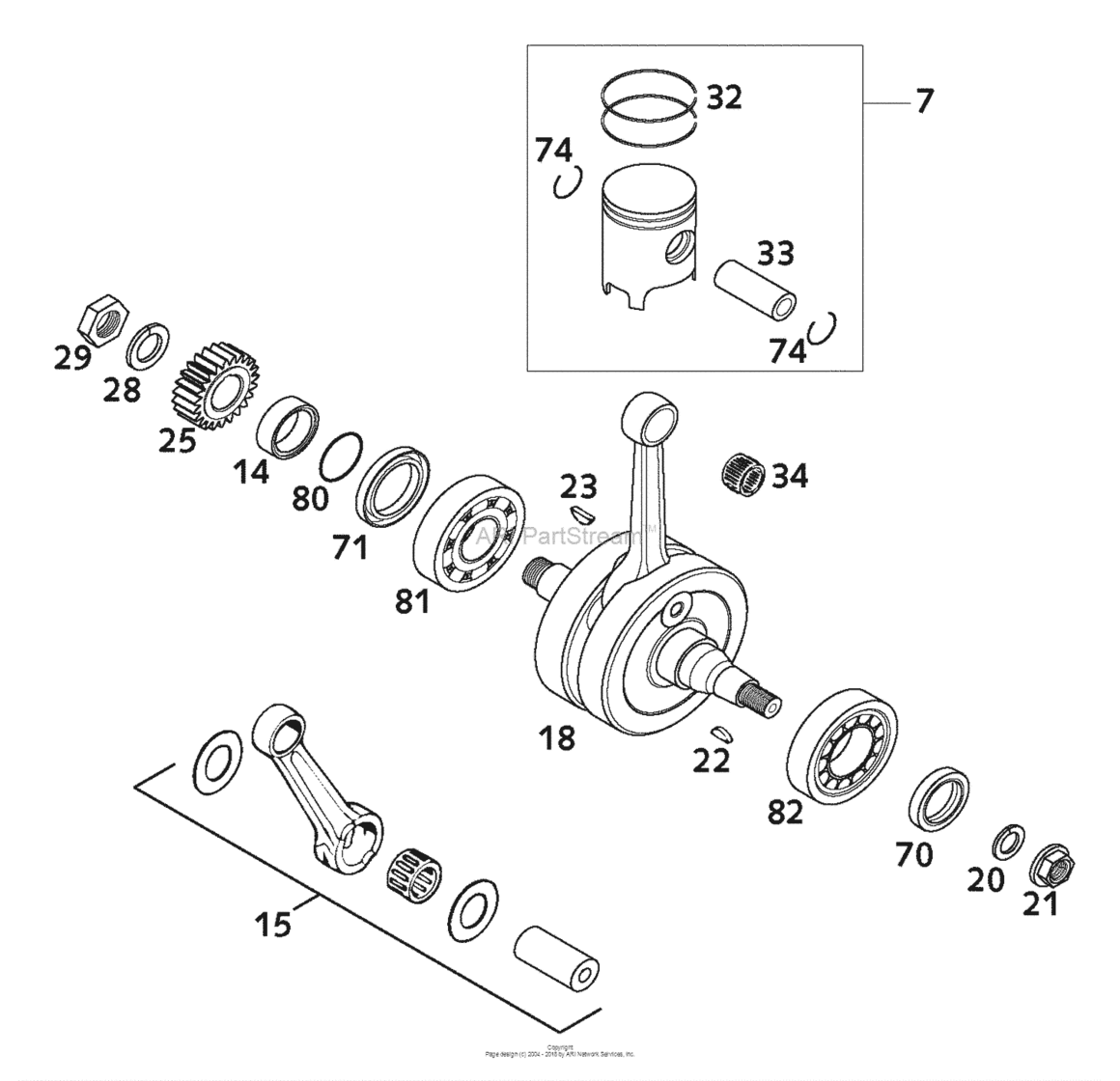

Crankshaft, Piston Diagram KTM 125 125 EXE
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 EXE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
50330007400I
Piston I Cpl. 125 I
ONLY FOR 400 EXC RACING |
50330007400I |
— | ||
| replacement | |||||
|
7
|
7
50330207100I
Piston I Cpl. 125 I
ONLY FOR 400 EXC RACING |
50330207100I |
— | ||
|
7
|
7
50330007400II
Piston I Cpl. 125 Ii
ONLY FOR 400 EXC RACING |
50330007400II |
— | ||
| replacement | |||||
|
7
|
7
50330207100II
Piston I Cpl. 125 Ii
ONLY FOR 400 EXC RACING |
50330207100II |
— | ||
|
14
|
14
54633014100
Spacer bushing 12mm
ONLY FOR 400 EXC RACING |
54633014100 |
— | ||
| replacement | |||||
|
14
|
14
76633030012 Spacer bushing 12mmONLY FOR 400 EXC RACING |
76633030012 |
US $15.16 |
||
|
15
|
15
50330015000
Con.rod Repair Kit 125'07
ONLY FOR 400 EXC RACING |
50330015000 |
— | ||
| replacement | |||||
|
15
|
15
50330015100 Con.rod repair kit 125'07ONLY FOR 400 EXC RACING |
50330015100 |
US $395.64 |
||
|
18
|
18
50330018100 Crankshaft Cpl. 125 Exc 2007ONLY FOR 400 EXC RACING |
50330018100 |
US $528.19 |
||
| replacement | |||||
|
18
|
18
50330018300 Crankshaft cpl. 125 exc 2007ONLY FOR 400 EXC RACING |
50330018300 |
US $495.45 |
||
|
20
|
20
50230029012 Locking ring vsk 12ONLY FOR 400 EXC RACING |
50230029012 |
US $2.19 |
||
|
21
|
21
49030021000 Collar nut m12x1 r/sONLY FOR 400 EXC RACING |
49030021000 |
US $10.57 |
||
|
22
|
22
0888030050 Woodruff Key Din6888-3X5X13ONLY FOR 400 EXC RACING |
0888030050 |
US $2.60 |
||
|
23
|
23
6946005 Woodruff Key 5X6,5 HardedONLY FOR 400 EXC RACING |
6946005 |
US $0.92 |
||
|
25
|
25
50332023023 Prim. pinion 23-t 125/200'98ONLY FOR 400 EXC RACING |
50332023023 |
US $84.42 |
||
|
28
|
28
50230029016 Locking ring vsk 16ONLY FOR 400 EXC RACING |
50230029016 |
US $2.19 |
||
|
29
|
29
50330029000 Hexagon nut m 16 x 1,5 - l/sONLY FOR 400 EXC RACING |
50330029000 |
US $10.69 |
||
| replacement | |||||
|
29
|
29
0009361600800S Hexagon nut m 16 x 1,5 - l/sONLY FOR 400 EXC RACING |
0009361600800S |
US $10.69 |
||
|
32
|
32
50330032500
Trapezoid Ring 125 2008
ONLY FOR 400 EXC RACING |
50330032500 |
— | ||
| replacement | |||||
|
32
|
32
50330032600 Trapezoid ring 125 2008ONLY FOR 400 EXC RACING |
50330032600 |
US $43.76 |
||
|
33
|
33
50330033500 Piston pin 15x45,2 125 2001ONLY FOR 400 EXC RACING |
50330033500 |
US $18.02 |
||
|
34
|
34
51030034000 Needle bearing kbk 15x19x20ONLY FOR 400 EXC RACING |
51030034000 |
US $28.44 |
||
|
70
|
70
0760253570 Shaft seal ring 25x35x7 btslONLY FOR 400 EXC RACING |
0760253570 |
US $18.89 |
||
|
71
|
71
0760324564 Shaft seal ring 32x45x6,5 btONLY FOR 400 EXC RACING |
0760324564 |
US $23.49 |
||
|
74
|
74
50330074500 Wire lock ring 15x1ONLY FOR 400 EXC RACING |
50330074500 |
US $0.92 |
||
|
80
|
80
0770250020 O-ring 25,00x2,00 nbr 70ONLY FOR 400 EXC RACING |
0770250020 |
US $2.26 |
||
|
81
|
81
0625063054 Ball Bearing 6305 Jr2 Cs36ONLY FOR 400 EXC RACING |
0625063054 |
US $47.57 |
||
| replacement | |||||
|
81
|
81
0625063055 Ball bearing 6305 jr2 cs36ONLY FOR 400 EXC RACING |
0625063055 |
US $47.40 |
||
|
82
|
82
50330082000 Cyl.roller Bear.nj206 Et2Xcs46ONLY FOR 400 EXC RACING |
50330082000 |
US $91.46 |
||
