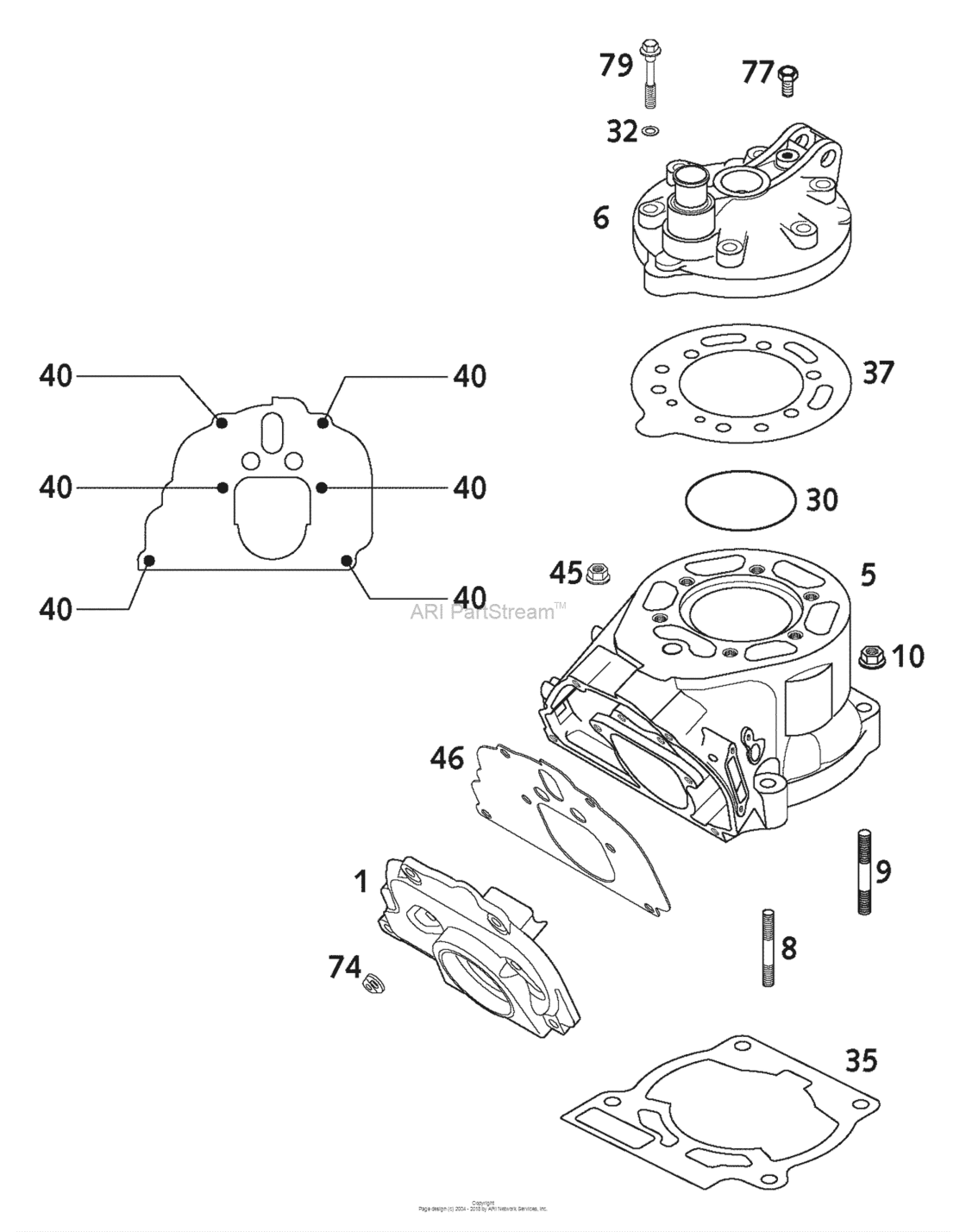

Cylinder Diagram KTM 125 125 EXE
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 EXE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50337001100 Intermediate flange 125 2000ONLY FOR 400 EXC RACING |
50337001100 |
US $116.55 |
||
|
5
|
5
51230005000
Cylinder 54Mm 125 Exe 2000
ONLY FOR 400 EXC RACING |
51230005000 |
— | ||
|
6
|
6
51230006000
Cylinder Head 125 Exe 2000
ONLY FOR 400 EXC RACING |
51230006000 |
— | ||
|
8
|
8
0835080273 Stud din0835-m 8x27ONLY FOR 400 EXC RACING |
0835080273 |
US $2.99 |
||
| replacement | |||||
|
8
|
8
0835080276 Stud din0835-m 8x27ONLY FOR 400 EXC RACING |
0835080276 |
US $3.30 |
||
|
9
|
9
0835100351 Stud din0835-m10x35ONLY FOR 400 EXC RACING |
0835100351 |
US $4.32 |
||
|
10
|
10
54630044000 Collar nut m10 ws=13ONLY FOR 400 EXC RACING |
54630044000 |
US $2.16 |
||
|
30
|
30
0770062020 O-ring 62,00x2,00 vitonONLY FOR 400 EXC RACING |
0770062020 |
US $10.47 |
||
|
32
|
32
50230032010 Cu-seal ring 7,3 x 12 x 0,5ONLY FOR 400 EXC RACING |
50230032010 |
US $2.23 |
||
| replacement | |||||
|
32
|
32
0603070121 Cu-seal ring din7603- 7,3x12x1ONLY FOR 400 EXC RACING |
0603070121 |
US $1.09 |
||
|
35
|
35
50330035007
Cylinder Base Gasket 0,20Mm
ONLY FOR 400 EXC RACING |
50330035007 |
— | ||
| replacement | |||||
|
35
|
35
50330035020 Cylinder base gasket 0,20mmONLY FOR 400 EXC RACING |
50330035020 |
US $5.41 |
||
|
35
|
35
50330035015 Cylinder Base Gasket 0,20MmONLY FOR 400 EXC RACING |
50330035015 |
US $5.03 |
||
| replacement | |||||
|
35
|
35
50330035020 Cylinder base gasket 0,20mmONLY FOR 400 EXC RACING |
50330035020 |
US $5.41 |
||
|
35
|
35
50330035020 Cylinder base gasket 0,20mmONLY FOR 400 EXC RACING |
50330035020 |
US $5.41 |
||
|
35
|
35
50330035025 Cylinder base gasket 0,25mmONLY FOR 400 EXC RACING |
50330035025 |
US $4.64 |
||
|
35
|
35
50330035040 Cylinder base gasket 0,40mmONLY FOR 400 EXC RACING |
50330035040 |
US $5.03 |
||
|
35
|
35
50330035050 Cylinder base gasket 0,50mmONLY FOR 400 EXC RACING |
50330035050 |
US $4.37 |
||
|
35
|
35
50330035075 Cylinder base gasket 0,75mmONLY FOR 400 EXC RACING |
50330035075 |
US $7.38 |
||
|
37
|
37
50330037000 Cyl.head gasket 1,1mm 125'98ONLY FOR 400 EXC RACING |
50330037000 |
US $15.73 |
||
|
40
|
40
0015050203
Hh Collar Screw M5X20 Tx30
ONLY FOR 400 EXC RACING |
0015050203 |
— | ||
| replacement | |||||
|
40
|
40
0025050206 Hh collar screw m5x20 tx30ONLY FOR 400 EXC RACING |
0025050206 |
US $1.33 |
||
|
45
|
45
50330045000 Hh collar nut m 8 ws=12ONLY FOR 400 EXC RACING |
50330045000 |
US $2.19 |
||
|
46
|
46
50337046100 Intermed.gasket 1,1mm 125 2000ONLY FOR 400 EXC RACING |
50337046100 |
US $13.86 |
||
|
74
|
74
51005074000 Retaining plateONLY FOR 400 EXC RACING |
51005074000 |
US $2.11 |
||
|
77
|
77
0933060103 Hh screw din0933-m 6x10ONLY FOR 400 EXC RACING |
0933060103 |
US $1.12 |
||
|
79
|
79
50030079000 Cyl. head bolt m 7x40 ws=10ONLY FOR 400 EXC RACING |
50030079000 |
US $8.70 |
||
