	Description	OEM Part #	Price
	58303103000 Foot rest bracket rear r/s '93 93	58303103000	—
	49003350000 Footrest rear r/s cpl. 96	49003350000	US $35.17
	54603140100 Foot Ped R/s 96	54603140100	US $48.47
	replacement
	5460314010019 Footrest right anthracite 99 96	5460314010019	US $41.68
1	1 51103001000 Frame 96	51103001000	—
2	2 51103002000 Sub Frame 96	51103002000	US $259.17
	replacement
2	2 51103002044 Subframe steel 125 lc2 '96 96	51103002044	—
3	3 54603003000 Foot Ped Bracket L 95	54603003000	—
4	4 0107080203 Ah oval h.screw din0170-m 8x20 93	0107080203	US $1.60
5	5 51103005000 Engine Brace 96	51103005000	—
6	6 58303002090 Plug 12 x 17 mm 96	58303002090	—
8	8 44003007000 Steering Head Lock 96	44003007000	—
	replacement
8	8 71003007000 Steering head lock cpl. zadi 96	71003007000	US $28.07
9	9 49003250000 Footrest rear l/s cpl. 96	49003250000	US $35.17
10	10 0934100003 Hexagon nut din0934-m10 96	0934100003	US $0.94
13	13 54610052000 Sprocket screw-ah m8x20 ws=6 96	54610052000	US $2.35
	replacement
13	13 0019080206 Counter-sunk screw isa45 m8x20 96	0019080206	US $1.82
14	14 54510052000 Counter-Sunk Screw Isa45 M8X26 96	54510052000	—
	replacement
14	14 0019080266S Counter-sunk screw isa45 m8x26 96	0019080266S	US $2.23
15	15 0015080453 Hh Collar Screw M 8X45 Ws=10 SW=10	0015080453	US $1.46
16	16 54606004000 Plug 37mm SW=10	54606004000	US $1.89
17	17 0127100003 Spring ring din0127-b10 SW=10	0127100003	US $0.29
18	18 54403135000 Plastic cap sfl10 SW=10	54403135000	US $1.31
19	19 51103013000 H H Screw SW=10	51103013000	—
20	20 50203053100 Chain Roll D=35Mm 125-380 '99 SW=10	50203053100	US $7.67
	replacement
20	20 52303053100 Chain Roll D=35Mm 125-380 '99 SW=10	52303053100	US $6.73
21	21 0625006087 Grooved Ball Bear. 608 2Rs C3 SW=10	0625006087	US $19.19
22	22 0015080353 Hh Collar Screw M 8X35 Ws=10 SW=10	0015080353	US $7.12
23	23 74003021000 Bushing 8.2 x 12 x 6 SW=10	74003021000	US $2.14
24	24 50203053000 Chain roll d=30mm SW=10	50203053000	US $7.36
25	25 54310086000 Self Locking Nut M8 10.9 SW=10	54310086000	—
	replacement
25	25 54310086200 Self Locking Nut M8 10.9 SW=10	54310086200	US $1.56
26	26 0015080753 H H Collar Screw SW=10	0015080753	—
27	27 54310086100 Self locking nut m10 cu ws=14 SW=14	54310086100	US $2.55
33	33 36003014000 Lock washer 8mm SW=14	36003014000	US $0.46
39	39 0015080303 Hh Collar Screw M8X30 Tx40 SW=10	0015080303	—
	replacement
39	39 0025080306 Hh collar screw m8x30 tx40 SW=10	0025080306	US $3.89
40	40 54603040100 Foot Ped L/s 96	54603040100	US $48.47
	replacement
40	40 5460304010019 Footrest left anthracite 99 96	5460304010019	—
41	41 54603044000 Bolt for footrest 9,8 x 50 96	54603044000	US $7.62
42	42 54603041000 Footrest Spring L/s & R/s 96	54603041000	US $3.52
43	43 0125100003 Washer Din0125-A10,5 96	0125100003	US $1.19
44	44 0094032253 Pin din0094-3,2x25 steel 96	0094032253	US $1.12
	replacement
44	44 0094032250 Pin din0094-3,2x25 steel 96	0094032250	US $1.12
50	50 51130010000 Bushing L/s 96	51130010000	—
51	51 51130110000 Bushing R/s 96	51130110000	—

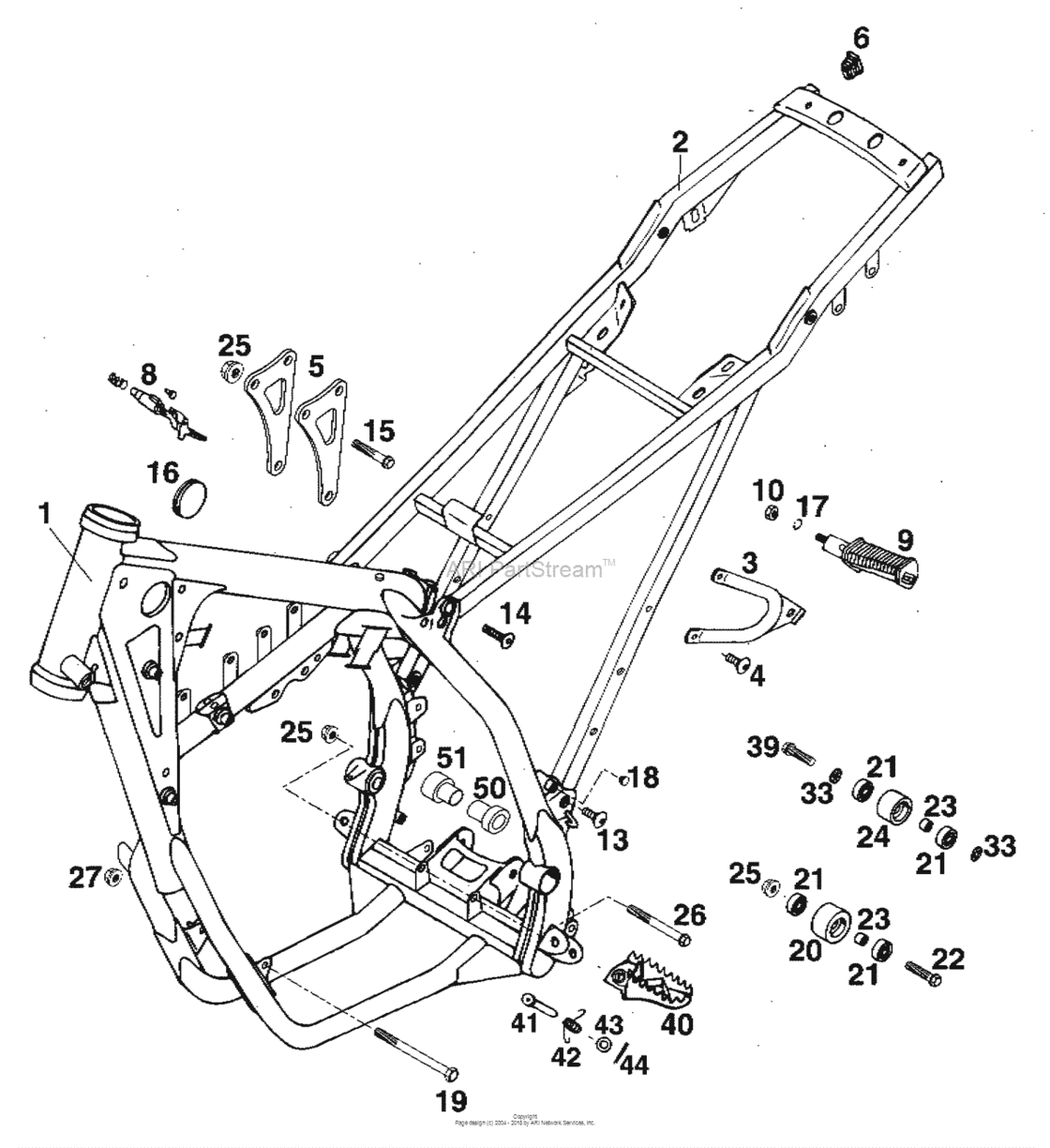

Frame, Sub Frame Diagram KTM 125 125 LC2 US/EU 18076023-939202

Frame, Sub Frame Diagram KTM 125 125 LC2 US/EU 18076023-939202
