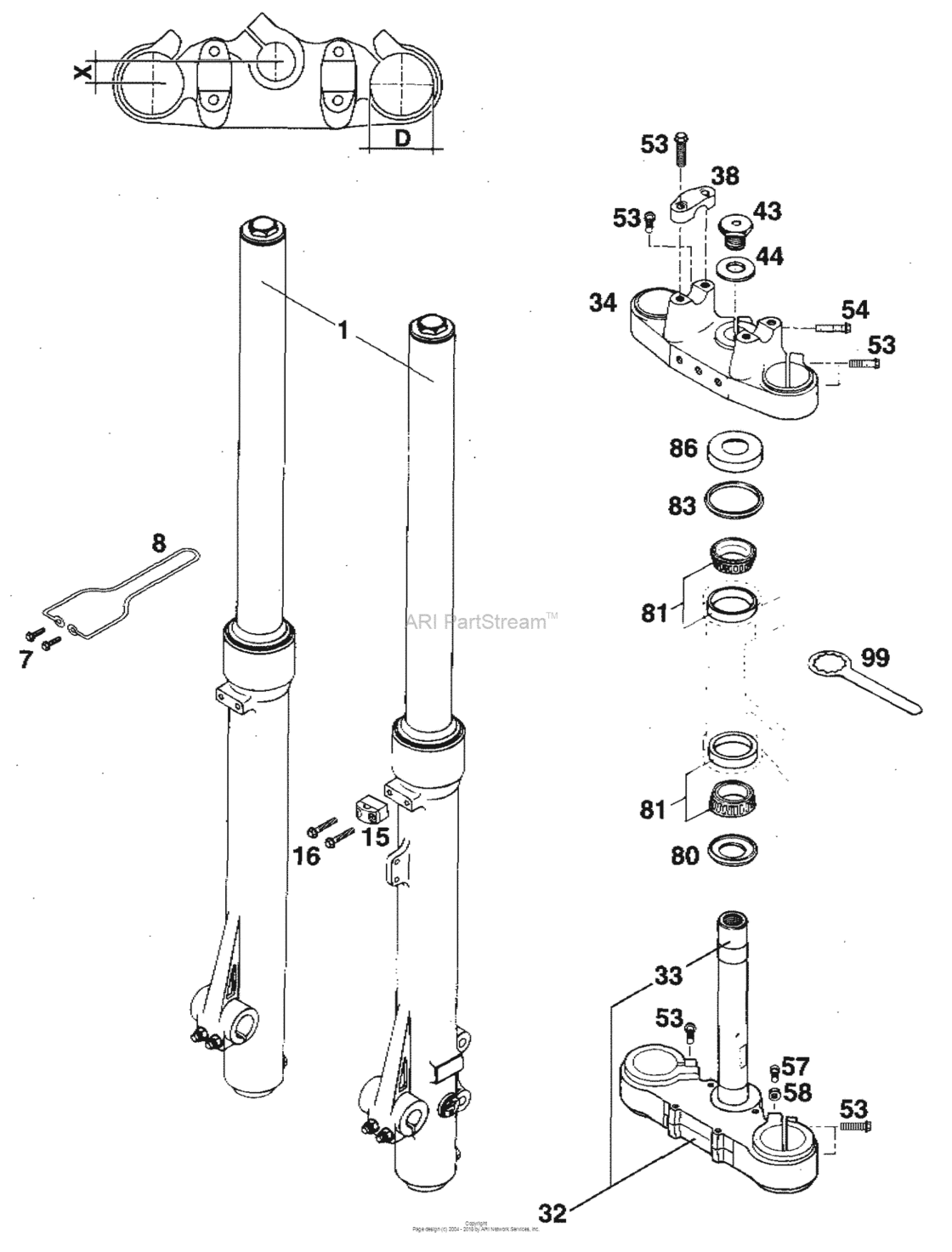

Front Fork Diagram KTM 125 125 LC2
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 LC2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51101000044
Fork Legs Cpl
96 |
51101000044 |
— | ||
|
7
|
7
0015050203
Hh Collar Screw M5X20 Tx30
SW=8 |
0015050203 |
— | ||
| replacement | |||||
|
7
|
7
0025050206 Hh collar screw m5x20 tx30SW=8 |
0025050206 |
US $1.33 |
||
|
8
|
8
51114056000
Speedo.cable-Guide
96 |
51114056000 |
— | ||
|
15
|
15
54601085000 Brake hose clamp marzocchi'9595 |
54601085000 |
US $3.35 |
||
|
16
|
16
0015050303 Hh collar screw m 5x30 ws=8SW=8 |
0015050303 |
US $1.22 |
||
|
32
|
32
51101032016
Bot.fork Plate Cpl
SW=8 |
51101032016 |
— | ||
|
33
|
33
50101033100 Fork Tube L=24491 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=24491 |
54801133000 |
US $78.15 |
||
|
34
|
34
51101034016
Top Fork Plate
91 |
51101034016 |
— | ||
|
38
|
38
54601038000
Handlebar Clamp
95 |
54601038000 |
— | ||
| replacement | |||||
|
38
|
38
50301038000 Handlebar clamp d=22mm 200195 |
50301038000 |
US $21.54 |
||
|
43
|
43
56401043000 Hh screw m20x1,595 |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
43
|
43
50301036000 Steer.head screw m20x1,5 ws=2795 |
50301036000 |
US $12.65 |
||
|
44
|
44
56401044000
Washer 21x38x3
95 |
56401044000 |
— | ||
|
53
|
53
0015080303
Hh Collar Screw M8X30 Tx40
SW=10 |
0015080303 |
— | ||
| replacement | |||||
|
53
|
53
0025080306 Hh collar screw m8x30 tx40SW=10 |
0025080306 |
US $3.89 |
||
|
54
|
54
0015080353 Hh Collar Screw M 8X35 Ws=10SW=10 |
0015080353 |
US $7.12 |
||
|
57
|
57
0933070203 Hh screw din0933-m 7x20SW=10 |
0933070203 |
US $1.58 |
||
|
58
|
58
0934070003 Hexagon nut din0934-m 7SW=10 |
0934070003 |
US $0.61 |
||
|
80
|
80
54601084100 O-Ring Support W. Sealing LipSW=10 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
80
|
80
77701084000 O-Ring Support W. Sealing LipSW=10 |
77701084000 |
US $21.15 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 06SW=10 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06SW=10 |
54201081100 |
US $53.18 |
||
|
83
|
83
54601184000 Stearing head gasket topSW=10 |
54601184000 |
US $7.74 |
||
|
86
|
86
54201086000 Steering Head CoverSW=10 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head CoverSW=10 |
78101086000 |
US $5.08 |
||
|
99
|
99
54212035000
Ring wrench ws=32
SW=10 |
54212035000 |
— | ||
