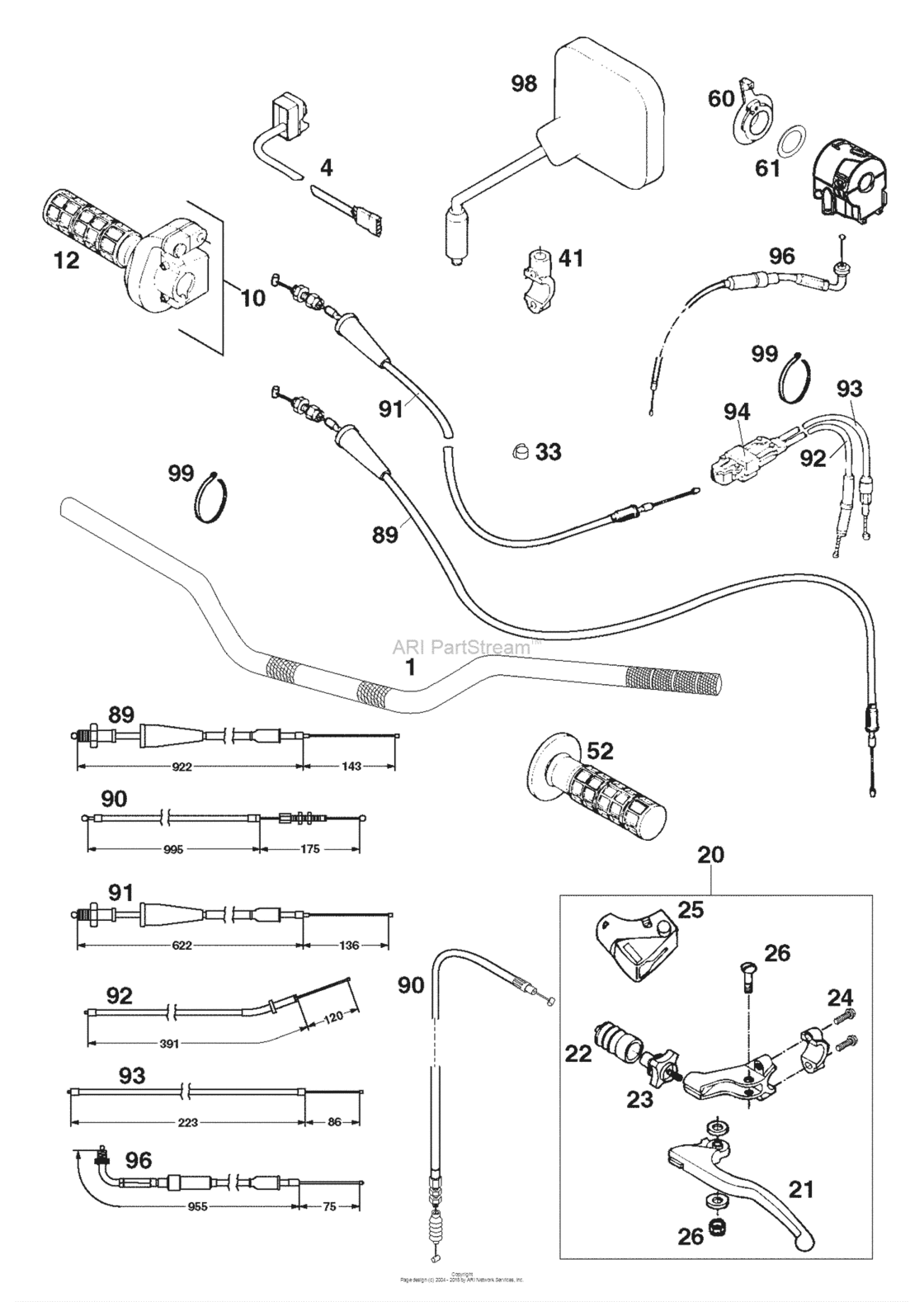

Handlebar, Controls Diagram KTM 125 125 LC2
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 LC2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58012140000 Rear mirror r/sWS=8 |
58012140000 |
US $42.67 |
||
|
|
44011076305 Cable tie 300/4,8mm blackWS=8 |
44011076305 |
US $0.36 |
||
|
1
|
1
58302001400 Alu-handlebar silver "4t" '97WS=8 |
58302001400 |
US $113.14 |
||
|
4
|
4
51111072000
Start-Stop Switch
WS=8 |
51111072000 |
— | ||
|
10
|
10
58302010000 Throttle Grip Cpl.domino '93WS=8 |
58302010000 |
US $118.37 |
||
|
12
|
12
58302003000
Gripp Set Full Waffle
WS=8 |
58302003000 |
— | ||
| replacement | |||||
|
12
|
12
58302021000 Gripp set full waffleWS=8 |
58302021000 |
US $28.88 |
||
|
20
|
20
54602040200
Clutch Lever Assy
WS=8 |
54602040200 |
— | ||
| replacement | |||||
|
20
|
20
54602040300
Clutch Lever Cpl. 250-380 '98
WS=8 |
54602040300 |
— | ||
|
21
|
21
54602055200 Clutch Lever LooseWS=8 |
54602055200 |
US $28.63 |
||
|
22
|
22
54602126000 Bellows clutch lever '91WS=8 |
54602126000 |
US $14.35 |
||
|
23
|
23
58302043000 Adjustment Screw Cpl.m7WS=8 |
58302043000 |
US $22.42 |
||
|
24
|
24
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
24
|
24
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
25
|
25
54602026200
Plastic Cover
WS=8 |
54602026200 |
— | ||
|
26
|
26
54602028200 Lever screw cpl.WS=8 |
54602028200 |
US $3.43 |
||
|
33
|
33
57013072000 Wiring holder 12mmWS=8 |
57013072000 |
US $3.50 |
||
|
41
|
41
58302044000 Clamp mirrow m10x1,25WS=8 |
58302044000 |
US $11.41 |
||
|
52
|
52
58302052000
Rubber Grip
WS=8 |
58302052000 |
— | ||
| replacement | |||||
|
52
|
52
58302021000 Gripp set full waffleWS=8 |
58302021000 |
US $28.88 |
||
|
60
|
60
58302050100 Choke lever domino '94WS=8 |
58302050100 |
US $9.04 |
||
|
61
|
61
0988253505 Thrust wash. din0988-25x35x0,5WS=8 |
0988253505 |
US $3.33 |
||
|
89
|
89
51102091100
Throttle Cable 125 Lc2 Long'97 Only For 80 Kmh Version
WS=8 |
51102091100 |
— | ||
|
90
|
90
51102090000
Clutch Cable
WS=8 |
51102090000 |
— | ||
|
91
|
91
51102091000
Throttle Cable
WS=8 |
51102091000 |
— | ||
|
92
|
92
51102086000
Oil Pump Cable
WS=8 |
51102086000 |
— | ||
|
93
|
93
51102087000
Carburetor Cable
WS=8 |
51102087000 |
— | ||
|
94
|
94
51102085000
Cable Distributor
WS=8 |
51102085000 |
— | ||
|
96
|
96
51102095000
Choke Cable
WS=8 |
51102095000 |
— | ||
|
98
|
98
58012040000 Rear mirror l/sWS=8 |
58012040000 |
US $41.60 |
||
|
99
|
99
44011076200 Cable tie 200/3,6mm blackWS=8 |
44011076200 |
US $0.39 |
||
