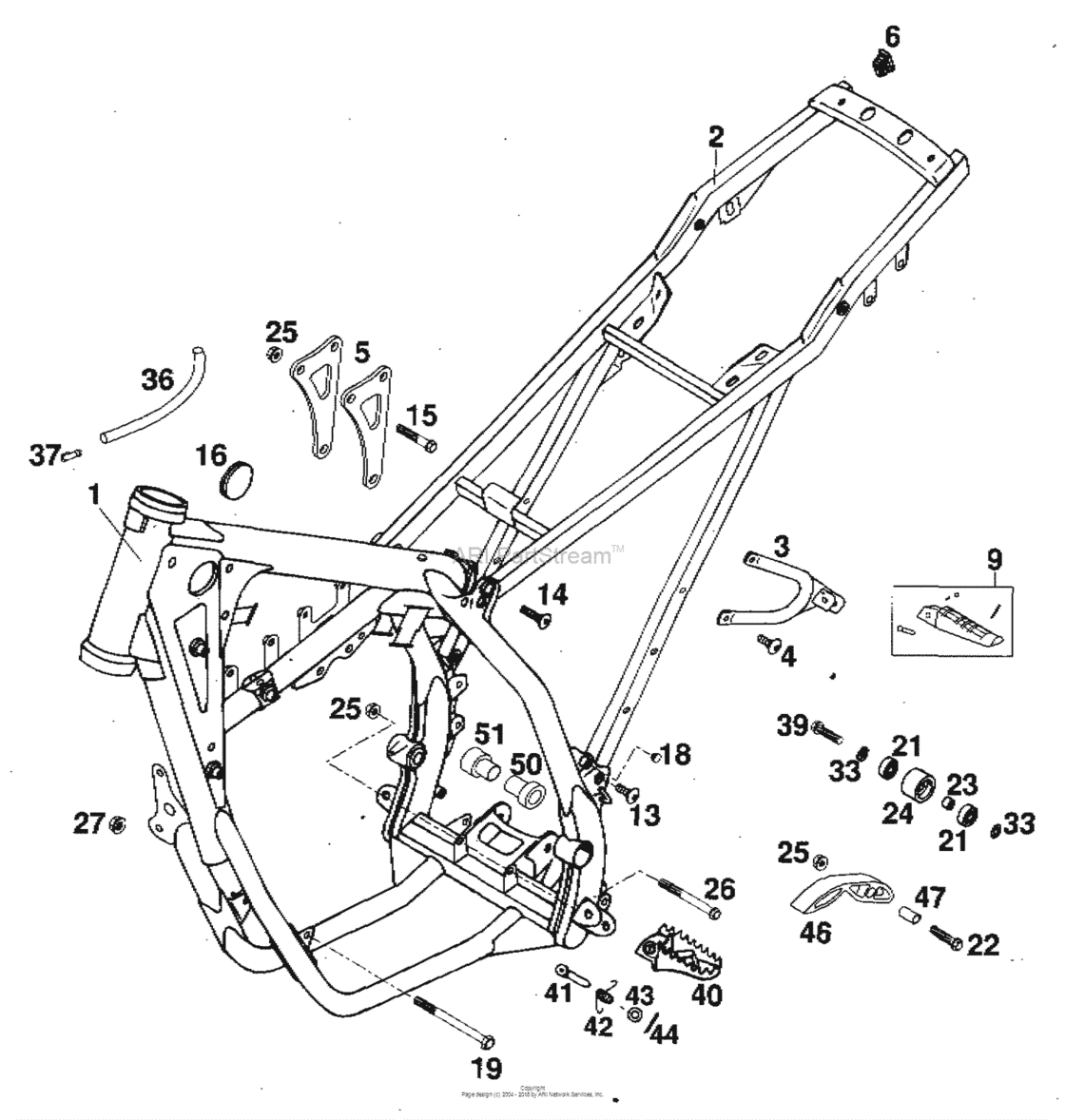

Frame, Sub Frame Diagram KTM 125 125 Sting
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 Sting
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
51103049000
Foot Rest Bracket Rear R/s
96 |
51103049000 |
— | ||
|
|
51103051000
Footrest rear r/s"r"sting,adv.
96 |
51103051000 |
— | ||
|
|
54603140100 Foot Ped R/s96 |
54603140100 |
US $48.47 |
||
| replacement | |||||
|
|
5460314010019 Footrest right anthracite 9996 |
5460314010019 |
US $41.68 |
||
|
1
|
1
51103001200
Frame 125 Sting
97 |
51103001200 |
— | ||
|
2
|
2
51103002000 Sub Frame96 |
51103002000 |
US $259.17 |
||
| replacement | |||||
|
2
|
2
51103002044
Subframe steel 125 lc2 '96
96 |
51103002044 |
— | ||
|
3
|
3
51103048000
Foot Rest Bracket Rear L/s
96 |
51103048000 |
— | ||
|
4
|
4
0107080203 Ah oval h.screw din0170-m 8x2096 |
0107080203 |
US $1.60 |
||
|
5
|
5
51103005000
Engine Brace
96 |
51103005000 |
— | ||
|
6
|
6
5B303002090
Plug 12X17 Mm
96 |
5B303002090 |
— | ||
|
9
|
9
51103050000
Footrest rear l/s"l"sting,adv.
96 |
51103050000 |
— | ||
|
13
|
13
54610052000 Sprocket screw-ah m8x20 ws=696 |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
13
|
13
0019080206 Counter-sunk screw isa45 m8x2096 |
0019080206 |
US $1.82 |
||
|
14
|
14
54510052000
Counter-Sunk Screw Isa45 M8X26
96 |
54510052000 |
— | ||
| replacement | |||||
|
14
|
14
0019080266S Counter-sunk screw isa45 m8x2696 |
0019080266S |
US $2.23 |
||
|
15
|
15
0015080453 Hh Collar Screw M 8X45 Ws=10WS= 10 |
0015080453 |
US $1.46 |
||
|
16
|
16
54606004000 Plug 37mmWS= 10 |
54606004000 |
US $1.89 |
||
|
18
|
18
54403135000 Plastic cap sfl10WS= 10 |
54403135000 |
US $1.31 |
||
|
19
|
19
0931101203
Hh screw din0931-m10x120
WS= 10 |
0931101203 |
— | ||
|
21
|
21
0625006087 Grooved Ball Bear. 608 2Rs C3WS= 10 |
0625006087 |
US $19.19 |
||
|
22
|
22
0015080353 Hh Collar Screw M 8X35 Ws=10WS= 10 |
0015080353 |
US $7.12 |
||
|
23
|
23
74003021000 Bushing 8.2 x 12 x 6WS= 10 |
74003021000 |
US $2.14 |
||
|
24
|
24
50203053000 Chain roll d=30mmWS= 10 |
50203053000 |
US $7.36 |
||
|
25
|
25
54310086000
Self Locking Nut M8 10.9
WS= 10 |
54310086000 |
— | ||
| replacement | |||||
|
25
|
25
54310086200 Self Locking Nut M8 10.9WS= 10 |
54310086200 |
US $1.56 |
||
|
26
|
26
0015080753
H H Collar Screw
WS= 10 |
0015080753 |
— | ||
|
27
|
27
54310086100 Self locking nut m10 cu ws=14WS=14 |
54310086100 |
US $2.55 |
||
|
33
|
33
36003014000 Lock washer 8mmWS=14 |
36003014000 |
US $0.46 |
||
|
36
|
36
55007016001 Pvc-hose 7x10 per meterWS=14 |
55007016001 |
US $5.98 |
||
|
37
|
37
50303089000 Angle piece '9797 |
50303089000 |
US $4.52 |
||
|
39
|
39
0015080303
Hh Collar Screw M8X30 Tx40
WS=10 |
0015080303 |
— | ||
| replacement | |||||
|
39
|
39
0025080306 Hh collar screw m8x30 tx40WS=10 |
0025080306 |
US $3.89 |
||
|
40
|
40
54603040100 Foot Ped L/s96 |
54603040100 |
US $48.47 |
||
| replacement | |||||
|
40
|
40
5460304010019
Footrest left anthracite 99
96 |
5460304010019 |
— | ||
|
41
|
41
54603044000 Bolt for footrest 9,8 x 5096 |
54603044000 |
US $7.62 |
||
|
42
|
42
54603041000 Footrest Spring L/s & R/s96 |
54603041000 |
US $3.52 |
||
|
43
|
43
0125100003 Washer Din0125-A10,596 |
0125100003 |
US $1.19 |
||
|
44
|
44
0094032253 Pin din0094-3,2x25 steel96 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
44
|
44
0094032250 Pin din0094-3,2x25 steel96 |
0094032250 |
US $1.12 |
||
|
46
|
46
51103053000 Chain sliding piece below '9797 |
51103053000 |
US $13.24 |
||
|
47
|
47
51103053051 Bushing 8,2x10x2097 |
51103053051 |
US $3.06 |
||
|
50
|
50
51130010000
Bushing L/s
96 |
51130010000 |
— | ||
|
51
|
51
51130110000
Bushing R/s
96 |
51130110000 |
— | ||
