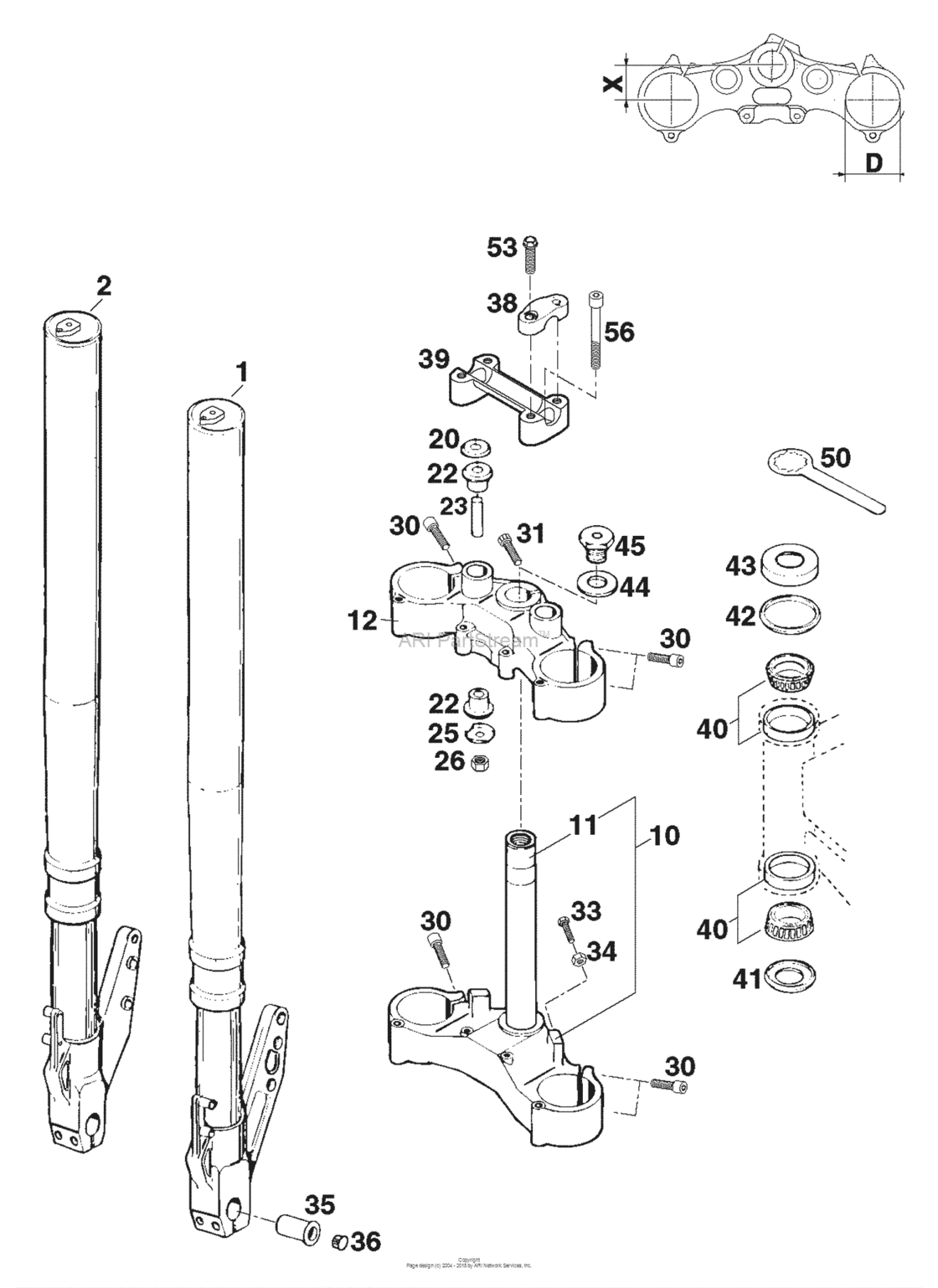

Front Fork White Power Diagram KTM 125 125 Sting
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 Sting
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51101001200
Fork Leg L/s In.618R337In. Wp'97
(As Required) |
51101001200 |
— | ||
|
2
|
2
51101002200
Fork Leg R/s In.618R337In. Wp'97
(As Required) |
51101002200 |
— | ||
|
10
|
10
58301032044 Bot.triple clamp x=35mm/d=54mm(As Required) |
58301032044 |
US $215.20 |
||
|
11
|
11
50101033100 Fork Tube L=244(As Required) |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
11
|
11
54801133000 FORK TUBE L=244(As Required) |
54801133000 |
US $78.15 |
||
|
12
|
12
58301034000
Top triple clmp x=35mm/d=54mm
(As Required) |
58301034000 |
— | ||
|
20
|
20
56401042000 Washer 10,5x32x2(As Required) |
56401042000 |
US $4.71 |
||
|
22
|
22
56401040000 Rubber bushing(As Required) |
56401040000 |
US $6.73 |
||
|
23
|
23
56401041100 Spacer tube 10,2x12x44(As Required) |
56401041100 |
US $5.25 |
||
|
25
|
25
56401142000 Washer 10,5x31(As Required) |
56401142000 |
US $3.49 |
||
|
26
|
26
0985100003 Self locking nut din0985-m10(As Required) |
0985100003 |
US $1.22 |
||
|
30
|
30
0912080353 Ah screw din0912-m 8x35(As Required) |
0912080353 |
US $1.65 |
||
|
31
|
31
0984080302
Ah screw din7984 m8x30
(As Required) |
0984080302 |
— | ||
|
33
|
33
0933070253 Hh screw din0933-m 7x25(As Required) |
0933070253 |
US $1.11 |
||
|
34
|
34
0934070003 Hexagon nut din0934-m 7(As Required) |
0934070003 |
US $0.61 |
||
|
35
|
35
58309082000 Axle nut m17 x 1,5 duke'94(As Required) |
58309082000 |
US $14.69 |
||
|
36
|
36
58301098000 Plastic cap 3/8" 2663(As Required) |
58301098000 |
US $1.41 |
||
|
38
|
38
54601038000
Handlebar Clamp
(As Required) |
54601038000 |
— | ||
| replacement | |||||
|
38
|
38
50301038000 Handlebar clamp d=22mm 2001(As Required) |
50301038000 |
US $21.54 |
||
|
39
|
39
58301039100 Handlebar support '95(As Required) |
58301039100 |
US $61.20 |
||
|
40
|
40
54201081000 Tapered Roller Bearing Cpl. 06(As Required) |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
40
|
40
54201081100 Tapered Roller Bearing Cpl. 06(As Required) |
54201081100 |
US $53.18 |
||
|
41
|
41
54601084100 O-Ring Support W. Sealing Lip(As Required) |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
41
|
41
77701084000 O-Ring Support W. Sealing Lip(As Required) |
77701084000 |
US $21.15 |
||
|
42
|
42
54601184000 Stearing head gasket top(As Required) |
54601184000 |
US $7.74 |
||
|
43
|
43
54201086000 Steering Head Cover(As Required) |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
43
|
43
78101086000 Steering Head Cover(As Required) |
78101086000 |
US $5.08 |
||
|
44
|
44
56401044000
Washer 21x38x3
(As Required) |
56401044000 |
— | ||
|
45
|
45
56401043000 Hh screw m20x1,5(As Required) |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
45
|
45
50301036000 Steer.head screw m20x1,5 ws=27(As Required) |
50301036000 |
US $12.65 |
||
|
50
|
50
54212035000
Ring wrench ws=32
(As Required) |
54212035000 |
— | ||
|
53
|
53
0015080303
Hh Collar Screw M8X30 Tx40
(As Required) |
0015080303 |
— | ||
| replacement | |||||
|
53
|
53
0025080306 Hh collar screw m8x30 tx40(As Required) |
0025080306 |
US $3.89 |
||
|
56
|
56
0984100702
Ah Screw Din6912-M10X70
(As Required) |
0984100702 |
— | ||
| replacement | |||||
|
56
|
56
0984100703 Ah screw din6912-m10x70(As Required) |
0984100703 |
US $6.92 |
||
