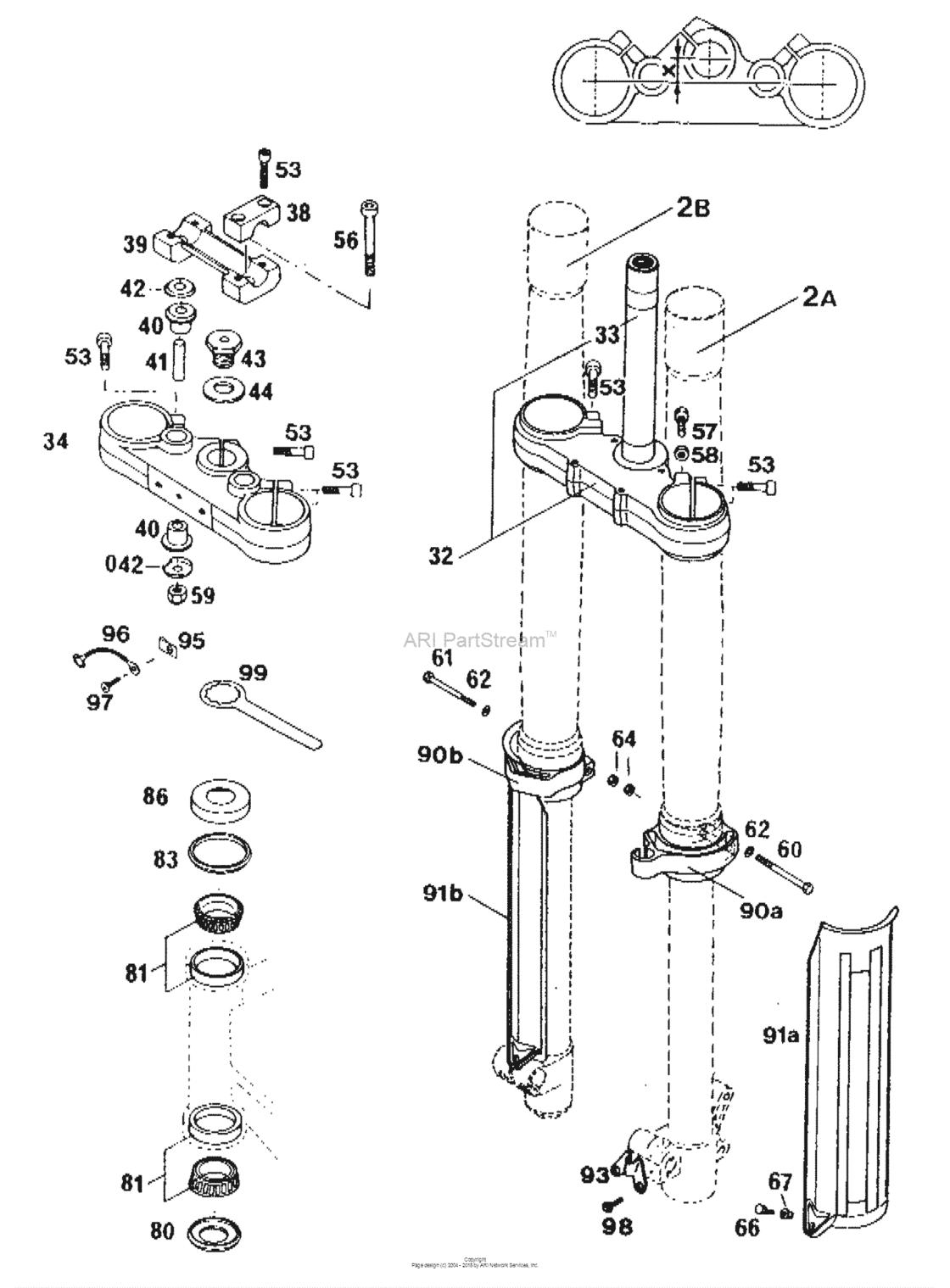

Front Fork Diagram KTM 125 125 SX
- Year
- 1994
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2A
|
2A
50201402600
Fork Leg L/s
93 |
50201402600 |
— | ||
|
2A
|
2A
50201402700
Fork leg l/s k1 e 94
93 |
50201402700 |
— | ||
|
2A
|
2A
50201402500
Fork leg l/s k1 ms 93
93 |
50201402500 |
— | ||
|
2A
|
2A
50201402300
Fork leg l/s k1 ge 93
93 |
50201402300 |
— | ||
|
2B
|
2B
50201502600
Fork Leg R/s
93 |
50201502600 |
— | ||
|
2B
|
2B
50201502700
Fork leg r/s k1 e 94
93 |
50201502700 |
— | ||
|
2B
|
2B
50201502500
Fork leg r/s k1 ms 93
93 |
50201502500 |
— | ||
|
2B
|
2B
50201502300
Fork leg r/s k1 ge 93
93 |
50201502300 |
— | ||
|
32
|
32
58001032744
Triple clamp bottom cpl. x=22
93 |
58001032744 |
— | ||
|
33
|
33
50101033100 Fork Tube L=24493 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=24493 |
54801133000 |
US $78.15 |
||
|
34
|
34
58001034700
Triple clamp top x=22mm/d=54m
93 |
58001034700 |
— | ||
|
38
|
38
56401038000 Handlebar Clamp D=22Mm 200193 |
56401038000 |
US $27.78 |
||
| replacement | |||||
|
38
|
38
50301038000 Handlebar clamp d=22mm 200193 |
50301038000 |
US $21.54 |
||
|
39
|
39
56401039000 Handlebar Support '9593 |
56401039000 |
US $76.02 |
||
| replacement | |||||
|
39
|
39
58301039100 Handlebar support '9593 |
58301039100 |
US $61.20 |
||
|
40
|
40
56401040000 Rubber bushing93 |
56401040000 |
US $6.73 |
||
|
41
|
41
56401041100 Spacer tube 10,2x12x4493 |
56401041100 |
US $5.25 |
||
|
42
|
42
56401042000 Washer 10,5x32x293 |
56401042000 |
US $4.71 |
||
|
042
|
042
56401142000 Washer 10,5x3193 |
56401142000 |
US $3.49 |
||
|
43
|
43
56401043000 Hh screw m20x1,593 |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
43
|
43
50301036000 Steer.head screw m20x1,5 ws=2793 |
50301036000 |
US $12.65 |
||
|
44
|
44
56401044000
Washer 21x38x3
93 |
56401044000 |
— | ||
|
53
|
53
0912080303 Ah Screw Din0912-M 8X3093 |
0912080303 |
US $1.50 |
||
|
56
|
56
0984100702
Ah Screw Din6912-M10X70
93 |
0984100702 |
— | ||
| replacement | |||||
|
56
|
56
0984100703 Ah screw din6912-m10x7093 |
0984100703 |
US $6.92 |
||
|
57
|
57
0912070203 Allen Head Screw(As required) |
0912070203 |
US $0.80 |
||
| replacement | |||||
|
57
|
57
0015070253
Hh Collar Screw M 7X25 Ws=8
(As required) |
0015070253 |
— | ||
|
57
|
57
0933070203 Hh screw din0933-m 7x20(As required) |
0933070203 |
US $1.58 |
||
|
58
|
58
0934070003 Hexagon nut din0934-m 7(As required) |
0934070003 |
US $0.61 |
||
|
59
|
59
0985100003 Self locking nut din0985-m10(As required) |
0985100003 |
US $1.22 |
||
|
60
|
60
0931050403 Hh Screw Din931 M5X40(As required) |
0931050403 |
US $2.18 |
||
|
61
|
61
0931050453 Hh Screw Din931 M5X45(As required) |
0931050453 |
US $3.26 |
||
|
62
|
62
0125050003 Washer Din0125-A 5,3(As required) |
0125050003 |
US $2.18 |
||
|
64
|
64
0985050003 Self Locking Nut Din0985-M 5(As required) |
0985050003 |
US $3.26 |
||
|
66
|
66
0933050163 Hh screw din0933-m 5x16(As required) |
0933050163 |
US $0.75 |
||
|
67
|
67
54601094100 Collar bushing f.sliding prot.(As required) |
54601094100 |
US $5.39 |
||
|
80
|
80
54601084100 O-Ring Support W. Sealing Lip(As required) |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
80
|
80
77701084000 O-Ring Support W. Sealing Lip(As required) |
77701084000 |
US $21.15 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 06(As required) |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06(As required) |
54201081100 |
US $53.18 |
||
|
83
|
83
54601184000 Stearing head gasket top(As required) |
54601184000 |
US $7.74 |
||
|
86
|
86
54201086000 Steering Head Cover(As required) |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head Cover(As required) |
78101086000 |
US $5.08 |
||
|
90A
|
90A
54601090000
Protector guide l/s white
(As required) |
54601090000 |
— | ||
|
90B
|
90B
54601190000
Protector guide r/s white
(As required) |
54601190000 |
— | ||
|
91A
|
91A
54601091000 Sliding protector l/s white(As required) |
54601091000 |
US $23.70 |
||
| replacement | |||||
|
91A
|
91A
5460109100030 Sliding protector l/s black(As required) |
5460109100030 |
US $19.14 |
||
|
91B
|
91B
54601191000
Sliding protector r/s white
(As required) |
54601191000 |
— | ||
|
93
|
93
50201090000
Clamp for brake hose '94
(As required) |
50201090000 |
— | ||
|
95
|
95
31005042000 Snap nut(As required) |
31005042000 |
US $1.50 |
||
|
96
|
96
57101008000
Ground cable
(As required) |
57101008000 |
— | ||
|
97
|
97
0981480193
Sheet met.scr.din7981 4,8x19
(As required) |
0981480193 |
— | ||
|
98
|
98
0015070253
Hh Collar Screw M 7X25 Ws=8
(As required) |
0015070253 |
— | ||
|
99
|
99
54212035000
Ring wrench ws=32
(As required) |
54212035000 |
— | ||
