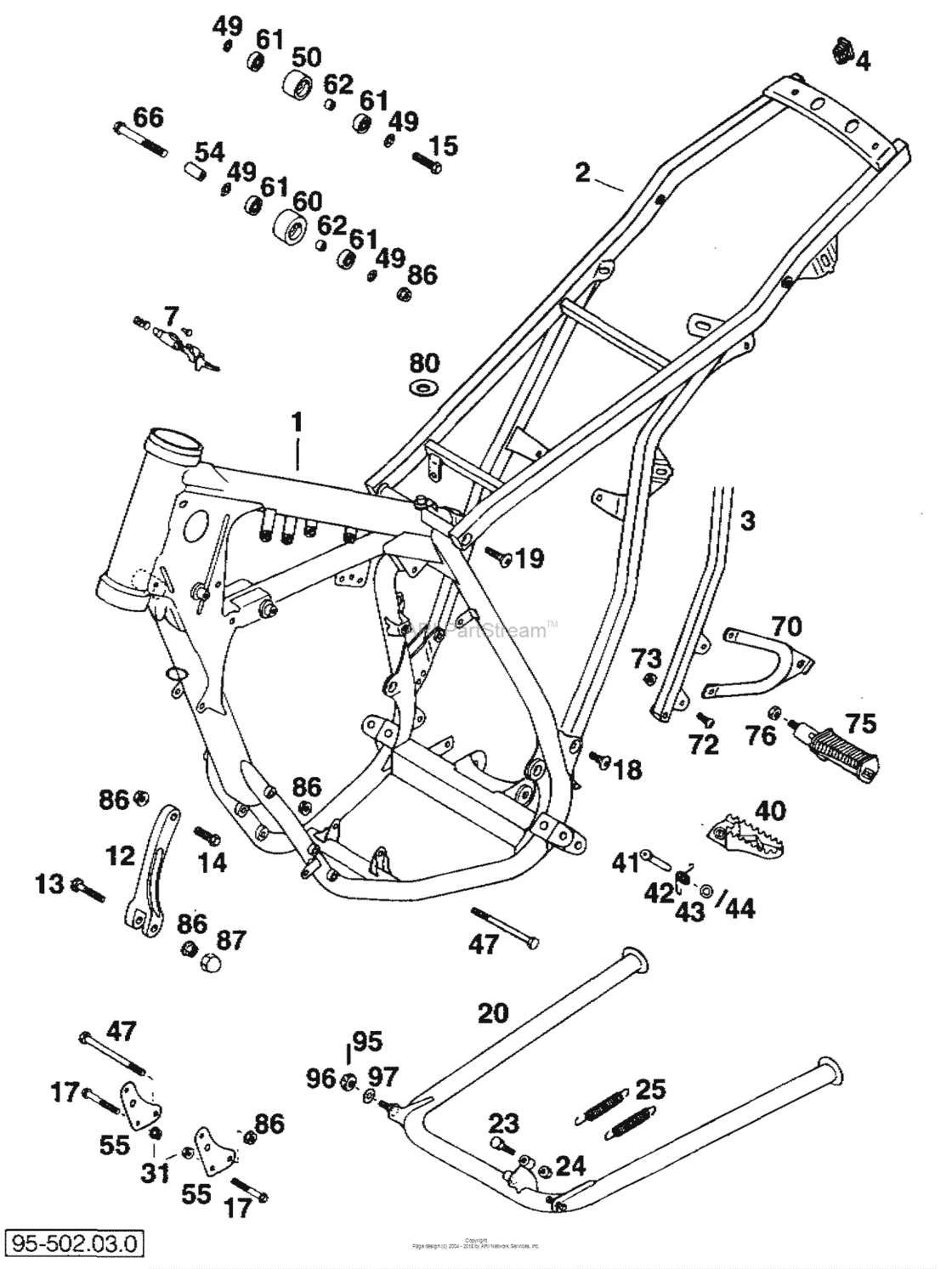

Frame, Sub Frame Diagram KTM 125 125 SX
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50203001900
Frame 125 sx '94
94 |
50203001900 |
— | ||
|
1
|
1
50203401900
Frame 125 exc/egs '94
94 |
50203401900 |
— | ||
|
2
|
2
50203002800
Sub frame alu sx
93 |
50203002800 |
— | ||
|
2
|
2
50203402900
Sub frame steel exc/egs '94
94 |
50203402900 |
— | ||
|
3
|
3
50203502900
Sub Frame
94 |
50203502900 |
— | ||
|
4
|
4
58303002090
Plug 12 x 17 mm
94 |
58303002090 |
— | ||
|
7
|
7
44003007000
Steering Head Lock
(As Required) |
44003007000 |
— | ||
| replacement | |||||
|
7
|
7
71003007000 Steering head lock cpl. zadi(As Required) |
71003007000 |
US $28.07 |
||
|
12
|
12
50203045700
Engine brace 125 '91
(As Required) |
50203045700 |
— | ||
|
13
|
13
0931080303
Hh screw din931 m8x30
(As Required) |
0931080303 |
— | ||
|
14
|
14
0015080253
H H Collar Screw
SW=10 |
0015080253 |
— | ||
| replacement | |||||
|
14
|
14
0025080256 Hh Collar Screw M8X25 Tx40SW=10 |
0025080256 |
US $4.10 |
||
|
15
|
15
0015080303
Hh Collar Screw M8X30 Tx40
SW=10 |
0015080303 |
— | ||
| replacement | |||||
|
15
|
15
0025080306 Hh collar screw m8x30 tx40SW=10 |
0025080306 |
US $3.89 |
||
|
17
|
17
0015060453
Hh collar screw m 6x45 ws=8
SW=8 |
0015060453 |
— | ||
| replacement | |||||
|
17
|
17
0025060456 Hh collar screw m6x45 tx30SW=8 |
0025060456 |
US $1.89 |
||
|
18
|
18
54610052000 Sprocket screw-ah m8x20 ws=6SW=8 |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
18
|
18
0019080206 Counter-sunk screw isa45 m8x20SW=8 |
0019080206 |
US $1.82 |
||
|
19
|
19
54510052000
Counter-Sunk Screw Isa45 M8X26
SW=8 |
54510052000 |
— | ||
| replacement | |||||
|
19
|
19
0019080266S Counter-sunk screw isa45 m8x26SW=8 |
0019080266S |
US $2.23 |
||
|
20
|
20
5020302210019
Centre stand 125 '93
93 |
5020302210019 |
— | ||
|
23
|
23
0933080253 Hh Screw Din0933-M 8X2593 |
0933080253 |
US $1.24 |
||
|
24
|
24
0934080003 Hexagon Nut Din0934-M 893 |
0934080003 |
US $3.26 |
||
|
25
|
25
10003021000 Stand spring short93 |
10003021000 |
US $6.17 |
||
|
31
|
31
56509064000 Self Locking Nut M6 10.993 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
31
|
31
56509064100 Self Locking Nut M6 10.993 |
56509064100 |
US $1.04 |
||
|
40
|
40
5460304000019 Foot rest l/s '9393 |
5460304000019 |
US $39.15 |
||
|
40
|
40
5460314000019
Footrest r/s '93
93 |
5460314000019 |
— | ||
|
41
|
41
54603044000 Bolt for footrest 9,8 x 5093 |
54603044000 |
US $7.62 |
||
|
42
|
42
54603041000 Footrest Spring L/s & R/s93 |
54603041000 |
US $3.52 |
||
|
43
|
43
0125100003 Washer Din0125-A10,593 |
0125100003 |
US $1.19 |
||
|
44
|
44
0094032253 Pin din0094-3,2x25 steel93 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
44
|
44
0094032250 Pin din0094-3,2x25 steel93 |
0094032250 |
US $1.12 |
||
|
47
|
47
0931080903
Hh screw din931 m8x90
93 |
0931080903 |
— | ||
|
49
|
49
36003014000 Lock washer 8mm93 |
36003014000 |
US $0.46 |
||
|
50
|
50
50203053000 Chain roll d=30mm93 |
50203053000 |
US $7.36 |
||
|
54
|
54
50203053101
Bushing 8x12x26 chain roll
93 |
50203053101 |
— | ||
|
55
|
55
50203055000
Engine support steel '87
87 |
50203055000 |
— | ||
|
60
|
60
50203053100 Chain Roll D=35Mm 125-380 '9987 |
50203053100 |
US $7.67 |
||
| replacement | |||||
|
60
|
60
52303053100 Chain Roll D=35Mm 125-380 '9987 |
52303053100 |
US $6.73 |
||
|
61
|
61
0625006087 Grooved Ball Bear. 608 2Rs C387 |
0625006087 |
US $19.19 |
||
|
62
|
62
74003021000 Bushing 8.2 x 12 x 687 |
74003021000 |
US $2.14 |
||
|
66
|
66
0015080703
Hh collar screw m8x70 sw10
SW=10 |
0015080703 |
— | ||
|
70
|
70
58303003000
Footrest bracket rear l/s
93 |
58303003000 |
— | ||
| replacement | |||||
|
70
|
70
5830300300030 FOOTRESTBRACKET REAR L/S BLACK93 |
5830300300030 |
US $98.69 |
||
|
70
|
70
58303103000
Foot rest bracket rear r/s '93
93 |
58303103000 |
— | ||
|
72
|
72
0107080203 Ah oval h.screw din0170-m 8x2093 |
0107080203 |
US $1.60 |
||
|
73
|
73
54310086000
Self Locking Nut M8 10.9
93 |
54310086000 |
— | ||
| replacement | |||||
|
73
|
73
54310086200 Self Locking Nut M8 10.993 |
54310086200 |
US $1.56 |
||
|
75
|
75
49003250000 Footrest rear l/s cpl.93 |
49003250000 |
US $35.17 |
||
|
75
|
75
49003350000 Footrest rear r/s cpl.93 |
49003350000 |
US $35.17 |
||
|
76
|
76
0934100003 Hexagon nut din0934-m1093 |
0934100003 |
US $0.94 |
||
|
80
|
80
51005067100 Insolate washer 12x28x393 |
51005067100 |
US $1.22 |
||
|
86
|
86
54310086000
Self Locking Nut M8 10.9
93 |
54310086000 |
— | ||
| replacement | |||||
|
86
|
86
54310086200 Self Locking Nut M8 10.993 |
54310086200 |
US $1.56 |
||
|
87
|
87
16001036013
Hex nut cover
93 |
16001036013 |
— | ||
|
95
|
95
0094020163 Pin din0094-2,0x1693 |
0094020163 |
US $1.31 |
||
|
96
|
96
0937080003
Castle nut m8
93 |
0937080003 |
— | ||
|
97
|
97
0125080003 Washer din0125-a 8,493 |
0125080003 |
US $2.02 |
||
