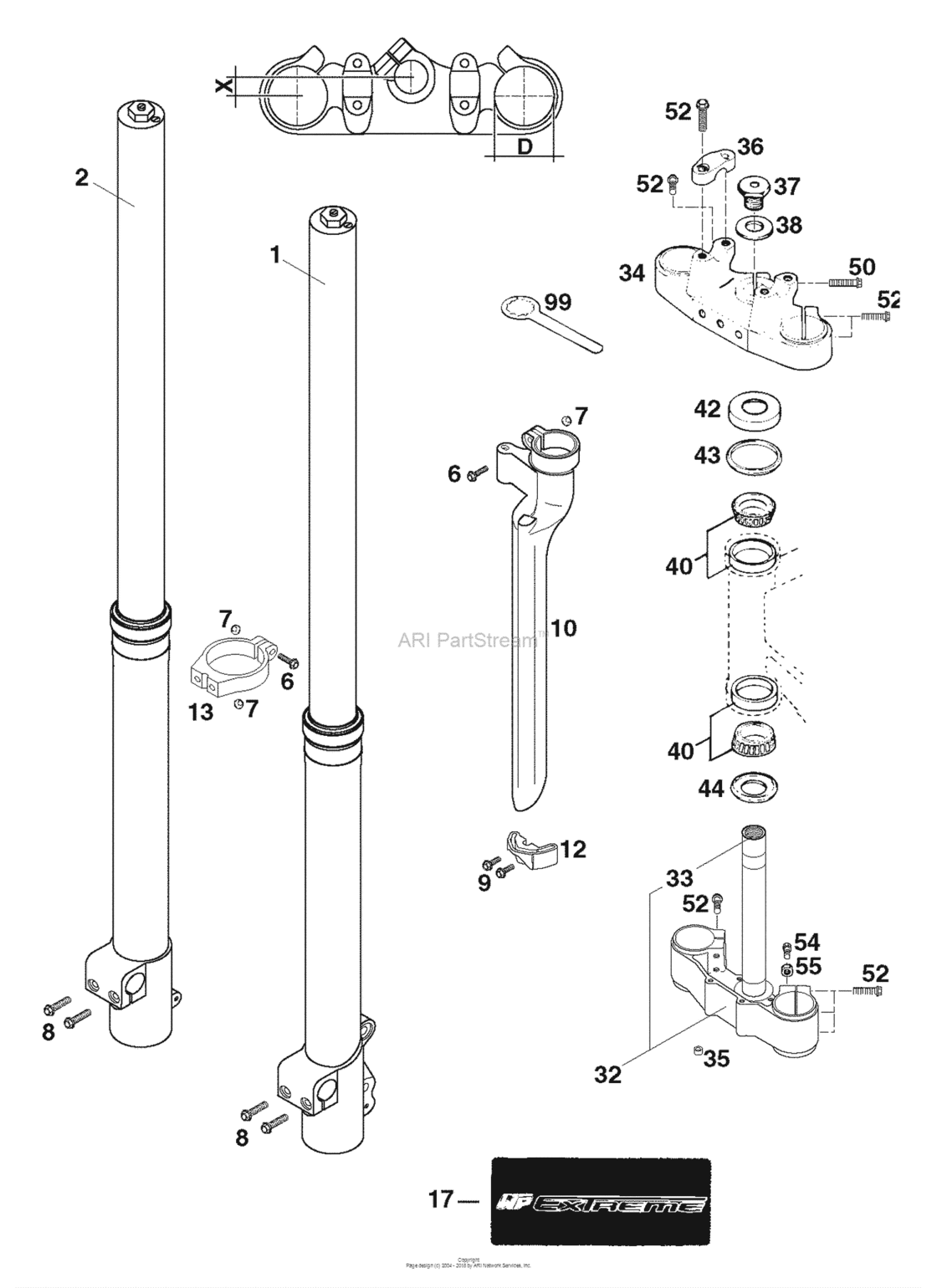

Front Fork White Power Diagram KTM 125 125 SX
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
50301093000
Fork protector r/s black '97
FOR SPOILER 6X11X16X7,5 |
50301093000 |
— | ||
|
|
5460139000030 Fork protection guide r/s '97FOR SPOILER 6X11X16X7,5 |
5460139000030 |
US $4.45 |
||
|
1
|
1
0918T767LS
Fork leg l/s wp 125 sx '99
FOR SPOILER 6X11X16X7,5 |
0918T767LS |
— | ||
|
2
|
2
0918T767RS
Fork Leg R/s Wp 125Sx '99
FOR SPOILER 6X11X16X7,5 |
0918T767RS |
— | ||
|
6
|
6
0015050203
Hh Collar Screw M5X20 Tx30
FOR SPOILER 6X11X16X7,5 |
0015050203 |
— | ||
| replacement | |||||
|
6
|
6
0025050206 Hh collar screw m5x20 tx30FOR SPOILER 6X11X16X7,5 |
0025050206 |
US $1.33 |
||
|
7
|
7
0985050003 Self Locking Nut Din0985-M 5FOR SPOILER 6X11X16X7,5 |
0985050003 |
US $3.26 |
||
|
8
|
8
0015080253
H H Collar Screw
FOR SPOILER 6X11X16X7,5 |
0015080253 |
— | ||
| replacement | |||||
|
8
|
8
0025080256 Hh Collar Screw M8X25 Tx40FOR SPOILER 6X11X16X7,5 |
0025080256 |
US $4.10 |
||
|
9
|
9
0015050163 Hh Collar Screw M 5X16 Ws=8FOR SPOILER 6X11X16X7,5 |
0015050163 |
US $1.31 |
||
|
10
|
10
50301092000
Fork protector l/s black '97
FOR SPOILER 6X11X16X7,5 |
50301092000 |
— | ||
|
12
|
12
5460129000030
Fork protection guide l/s '97
FOR SPOILER 6X11X16X7,5 |
5460129000030 |
— | ||
|
13
|
13
50301090250
Clamp protector guide '98
FOR SPOILER 6X11X16X7,5 |
50301090250 |
— | ||
|
17
|
17
50308093000 Decal "wp extreme"FOR SPOILER 6X11X16X7,5 |
50308093000 |
US $20.54 |
||
|
32
|
32
50301032014 Bottom triple clamp14mm/d=50mmFOR SPOILER 6X11X16X7,5 |
50301032014 |
US $254.08 |
||
|
33
|
33
50101033100 Fork Tube L=244FOR SPOILER 6X11X16X7,5 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=244FOR SPOILER 6X11X16X7,5 |
54801133000 |
US $78.15 |
||
|
34
|
34
50301034014 Top triple clamp x=14mm/d=50mmFOR SPOILER 6X11X16X7,5 |
50301034014 |
US $126.16 |
||
|
35
|
35
50301089000 Spacer bushing 6x10x5FOR SPOILER 6X11X16X7,5 |
50301089000 |
US $1.58 |
||
|
36
|
36
54601038000
Handlebar Clamp
FOR SPOILER 6X11X16X7,5 |
54601038000 |
— | ||
| replacement | |||||
|
36
|
36
50301038000 Handlebar clamp d=22mm 2001FOR SPOILER 6X11X16X7,5 |
50301038000 |
US $21.54 |
||
|
37
|
37
56401043000 Hh screw m20x1,5FOR SPOILER 6X11X16X7,5 |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
37
|
37
50301036000 Steer.head screw m20x1,5 ws=27FOR SPOILER 6X11X16X7,5 |
50301036000 |
US $12.65 |
||
|
38
|
38
56401044000
Washer 21x38x3
FOR SPOILER 6X11X16X7,5 |
56401044000 |
— | ||
|
40
|
40
54201081000 Tapered Roller Bearing Cpl. 06FOR SPOILER 6X11X16X7,5 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
40
|
40
54201081100 Tapered Roller Bearing Cpl. 06FOR SPOILER 6X11X16X7,5 |
54201081100 |
US $53.18 |
||
|
42
|
42
54201086000 Steering Head CoverFOR SPOILER 6X11X16X7,5 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
42
|
42
78101086000 Steering Head CoverFOR SPOILER 6X11X16X7,5 |
78101086000 |
US $5.08 |
||
|
43
|
43
54601184000 Stearing head gasket topFOR SPOILER 6X11X16X7,5 |
54601184000 |
US $7.74 |
||
|
44
|
44
54601084100 O-Ring Support W. Sealing LipFOR SPOILER 6X11X16X7,5 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
44
|
44
77701084000 O-Ring Support W. Sealing LipFOR SPOILER 6X11X16X7,5 |
77701084000 |
US $21.15 |
||
|
50
|
50
0015080403
Hh Collar Screw M8X40 Tx40
FOR SPOILER 6X11X16X7,5 |
0015080403 |
— | ||
| replacement | |||||
|
50
|
50
0025080406 Hh collar screw m8x40 tx40FOR SPOILER 6X11X16X7,5 |
0025080406 |
US $2.62 |
||
|
52
|
52
0015080303
Hh Collar Screw M8X30 Tx40
FOR SPOILER 6X11X16X7,5 |
0015080303 |
— | ||
| replacement | |||||
|
52
|
52
0025080306 Hh collar screw m8x30 tx40FOR SPOILER 6X11X16X7,5 |
0025080306 |
US $3.89 |
||
|
54
|
54
50301037000 Special screw m8x21 ws=13FOR SPOILER 6X11X16X7,5 |
50301037000 |
US $5.63 |
||
|
55
|
55
0934080003 Hexagon Nut Din0934-M 8FOR SPOILER 6X11X16X7,5 |
0934080003 |
US $3.26 |
||
|
99
|
99
54212035000
Ring wrench ws=32
FOR SPOILER 6X11X16X7,5 |
54212035000 |
— | ||
