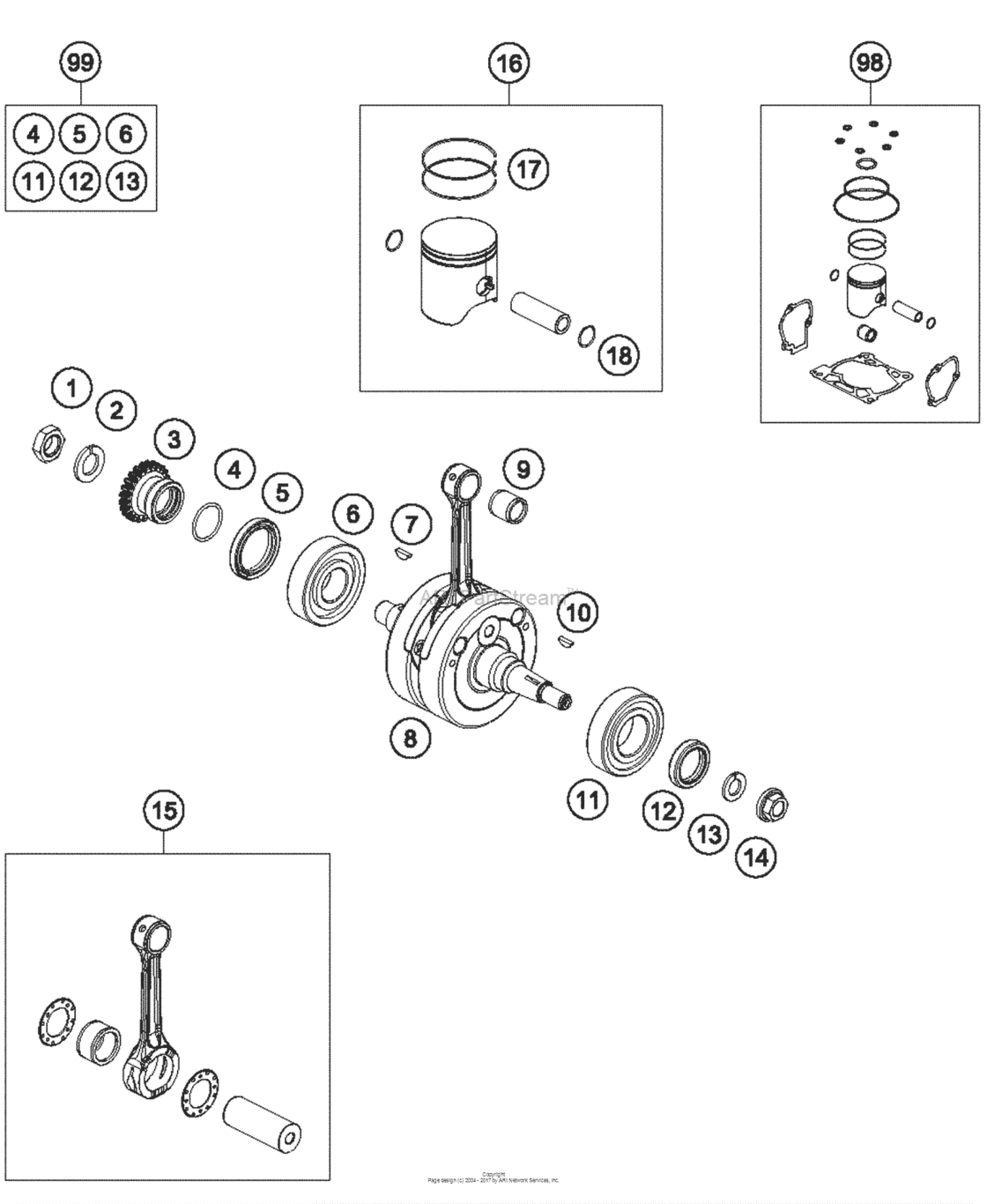

Crankshaft, Piston Diagram KTM 125 125 SX
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50330029000 Hexagon nut m 16 x 1,5 - l/s2016 |
50330029000 |
US $10.69 |
||
| replacement | |||||
|
1
|
1
0009361600800S Hexagon nut m 16 x 1,5 - l/s2016 |
0009361600800S |
US $10.69 |
||
|
2
|
2
50230029016 Locking ring vsk 162016 |
50230029016 |
US $2.19 |
||
|
3
|
3
50432023023 Primary Wheel 23T2016 |
50432023023 |
US $140.74 |
||
| replacement | |||||
|
3
|
3
50532023023 Primary Wheel 23T2016 |
50532023023 |
US $140.74 |
||
|
4
|
4
0770250020 O-ring 25,00x2,00 nbr 702016 |
0770250020 |
US $2.26 |
||
|
5
|
5
0760324564 Shaft seal ring 32x45x6,5 bt2016 |
0760324564 |
US $23.49 |
||
|
6
|
6
0625063055 Ball bearing 6305 jr2 cs362016 |
0625063055 |
US $47.40 |
||
|
7
|
7
0888040050 Woodruff key din6888 4x5x132016 |
0888040050 |
US $3.43 |
||
|
8
|
8
50430018000 Crankshaft2016 |
50430018000 |
US $655.72 |
||
|
9
|
9
51030034000 Needle bearing kbk 15x19x202016 |
51030034000 |
US $28.44 |
||
|
10
|
10
0888030050 Woodruff Key Din6888-3X5X132016 |
0888030050 |
US $2.60 |
||
|
11
|
11
50330082000 Cyl.roller Bear.nj206 Et2Xcs462016 |
50330082000 |
US $91.46 |
||
|
12
|
12
0760253570 Shaft seal ring 25x35x7 btsl2016 |
0760253570 |
US $18.89 |
||
|
13
|
13
50230029012 Locking ring vsk 122016 |
50230029012 |
US $2.19 |
||
|
14
|
14
49030021000 Collar nut m12x1 r/s2016 |
49030021000 |
US $10.57 |
||
|
15
|
15
50430015044 Con-Rod Repair Kit2016 |
50430015044 |
US $316.18 |
||
|
16
|
16
50430007033I
Piston Assy
As Required |
50430007033I |
— | ||
|
16
|
16
50430007033II
Piston Assy
As Required |
50430007033II |
— | ||
|
17
|
17
50430032044 Kolbenringsatz 125As Required |
50430032044 |
US $86.41 |
||
|
18
|
18
50330074500 Wire lock ring 15x1As Required |
50330074500 |
US $0.92 |
||
|
98
|
98
00050000245 Kolbenkit Gr. I2018, As Required |
00050000245 |
US $291.70 |
||
|
98
|
98
00050000246
Kolbenkit Gr. Ii
2018, As Required |
00050000246 |
— | ||
|
99
|
99
00050002300 Crankshaft Rep. Kit 125-200As Required |
00050002300 |
US $150.52 |
||
