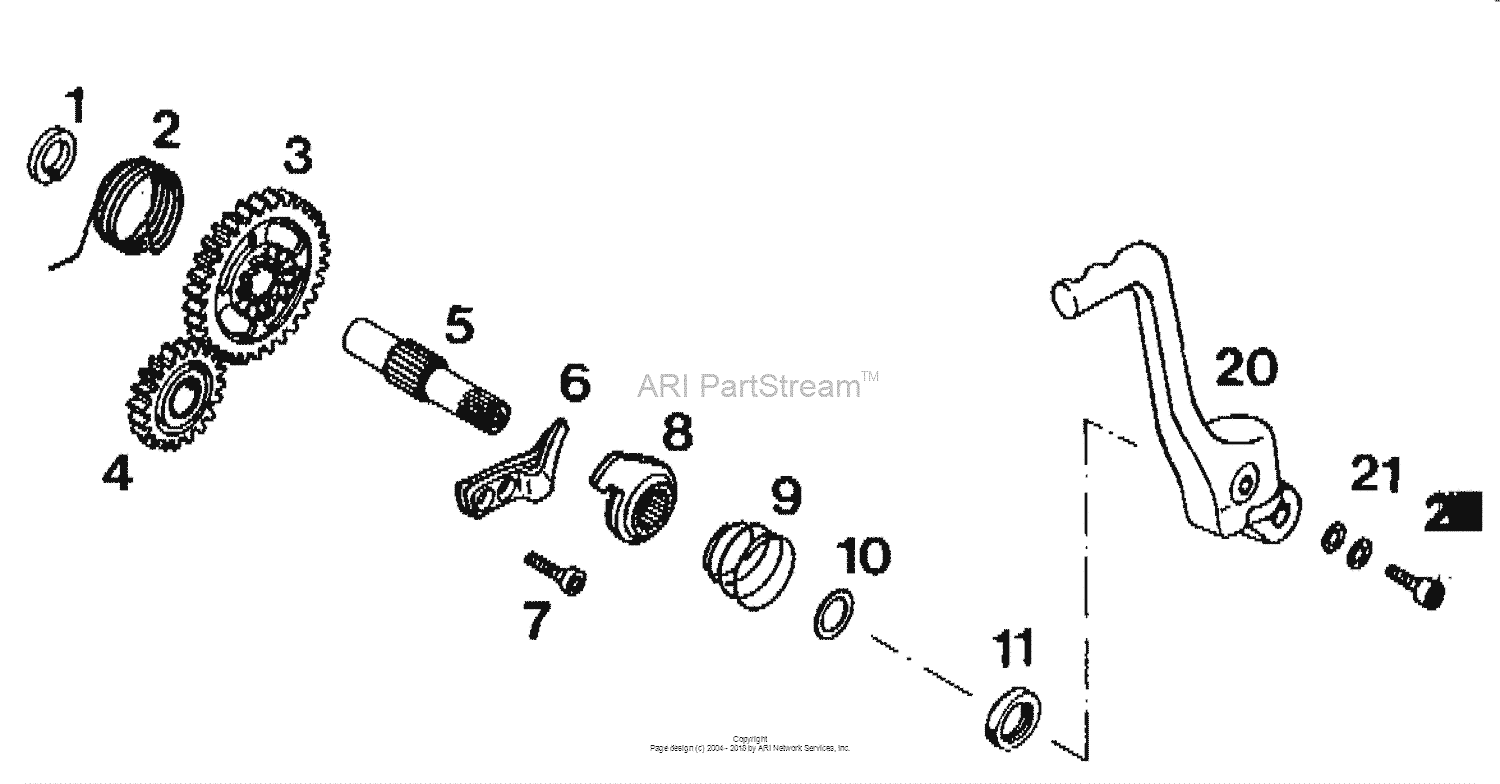

Kickstarter Diagram KTM 125 125 SX
- Year
- 1994
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49033026100
Inner clutch hub
(As Required) |
49033026100 |
— | ||
|
2
|
2
50233020100
Kickstarter spring '91
91 |
50233020100 |
— | ||
|
3
|
3
50233022500 Kickstarter gear 32-t91 |
50233022500 |
US $111.74 |
||
|
4
|
4
50133024000 Intermediate starting gear91 |
50133024000 |
US $255.82 |
||
|
5
|
5
49033021100 Kickstarter shaft91 |
49033021100 |
US $71.38 |
||
|
6
|
6
50233027100
Stop plate 7 mm
7 MM |
50233027100 |
— | ||
|
7
|
7
0984060203 Ah screw din6912-m 6x20 8.87 MM |
0984060203 |
US $1.55 |
||
|
8
|
8
50233023500
Ratchet gear 125 '88
7 MM |
50233023500 |
— | ||
|
9
|
9
49033028000
Ratchet Gear Spring
7 MM |
49033028000 |
— | ||
| replacement | |||||
|
9
|
9
46033056000 Ratchet gear spring7 MM |
46033056000 |
US $3.03 |
||
|
10
|
10
49033031000 Stop disk 14,3x20x17 MM |
49033031000 |
US $4.10 |
||
|
11
|
11
0760142460 Shaft seal ring 14x24x6 b7 MM |
0760142460 |
US $11.70 |
||
|
20
|
20
50233036244
Kickstarter cpl.125'92
7 MM |
50233036244 |
— | ||
|
21
|
21
50233041000 Pair of washers m 6 nordlock7 MM |
50233041000 |
US $3.25 |
||
|
22
|
22
0912060163 Ah Screw Din0912-M 6X167 MM |
0912060163 |
US $1.29 |
||
