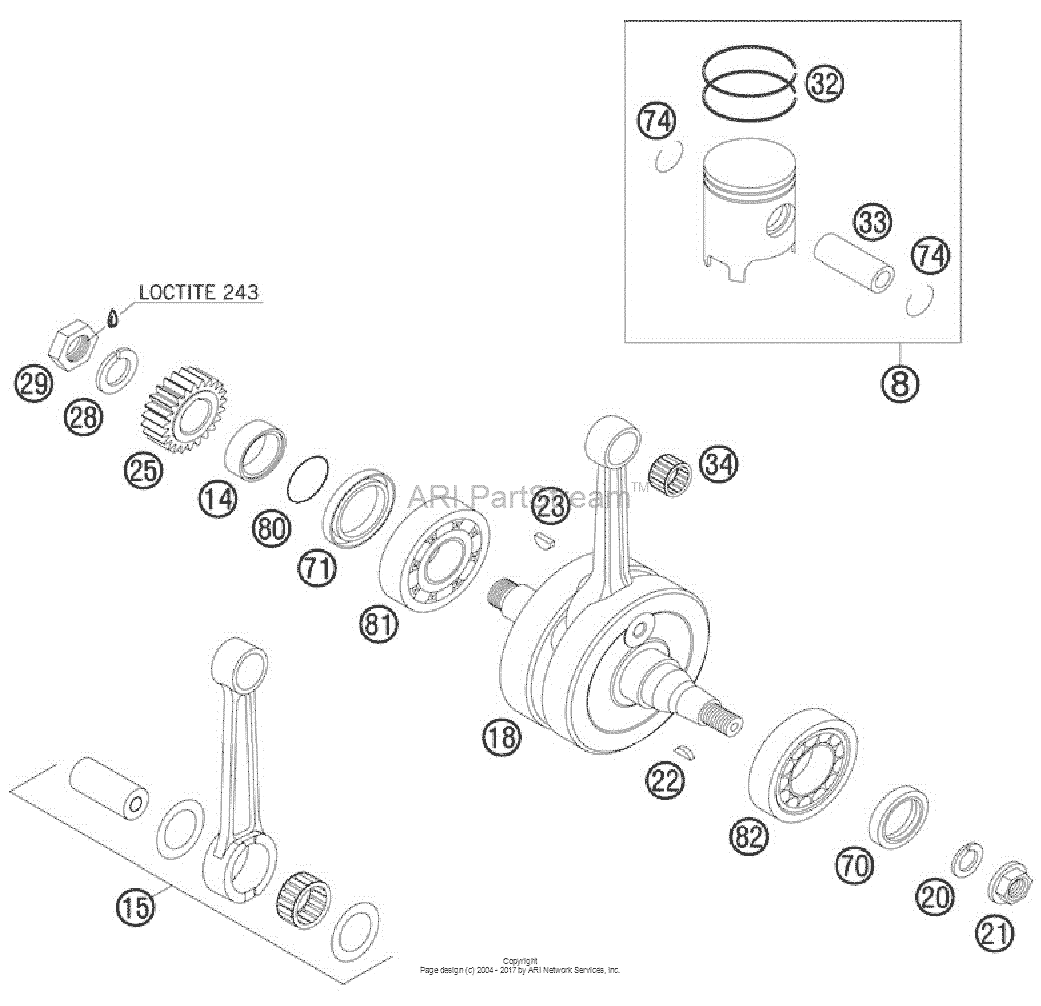

Crankshaft, Piston Diagram KTM 125 125 SX
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 125
- Model
- 125 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
50330207000I
Piston i cpl. 125 09
09 |
50330207000I |
— | ||
| replacement | |||||
|
8
|
8
50330207100I
Piston I Cpl. 125 I
09 |
50330207100I |
— | ||
|
8
|
8
50330207000II
Piston ii cpl. 125 09
09, (As Required) |
50330207000II |
— | ||
| replacement | |||||
|
8
|
8
50330207100II
Piston I Cpl. 125 Ii
09, (As Required) |
50330207100II |
— | ||
|
14
|
14
54633014100
Spacer bushing 12mm
09, (As Required) |
54633014100 |
— | ||
| replacement | |||||
|
14
|
14
76633030012 Spacer bushing 12mm09, (As Required) |
76633030012 |
US $15.16 |
||
|
15
|
15
50330015100 Con.rod repair kit 125'07'07 |
50330015100 |
US $395.64 |
||
|
18
|
18
50330018400 Crankshaft cpl. 125 sx 20072007 |
50330018400 |
US $560.34 |
||
|
20
|
20
50230029012 Locking ring vsk 122007 |
50230029012 |
US $2.19 |
||
|
21
|
21
49030021000 Collar nut m12x1 r/s2007 |
49030021000 |
US $10.57 |
||
|
22
|
22
0888030050 Woodruff Key Din6888-3X5X132007 |
0888030050 |
US $2.60 |
||
|
23
|
23
6946005 Woodruff Key 5X6,5 Harded2007 |
6946005 |
US $0.92 |
||
|
25
|
25
50332023123 Primary pinion 23-t 125/200 0606 |
50332023123 |
US $68.61 |
||
|
28
|
28
50230029016 Locking ring vsk 1606 |
50230029016 |
US $2.19 |
||
|
29
|
29
50330029000 Hexagon nut m 16 x 1,5 - l/s06 |
50330029000 |
US $10.69 |
||
| replacement | |||||
|
29
|
29
0009361600800S Hexagon nut m 16 x 1,5 - l/s06 |
0009361600800S |
US $10.69 |
||
|
32
|
32
50330032600 Trapezoid ring 125 20082008, (As Required) |
50330032600 |
US $43.76 |
||
|
33
|
33
50330033500 Piston pin 15x45,2 125 20012001 |
50330033500 |
US $18.02 |
||
|
34
|
34
51030034000 Needle bearing kbk 15x19x202001 |
51030034000 |
US $28.44 |
||
|
70
|
70
0760253570 Shaft seal ring 25x35x7 btsl2001 |
0760253570 |
US $18.89 |
||
|
71
|
71
0760324564 Shaft seal ring 32x45x6,5 bt2001 |
0760324564 |
US $23.49 |
||
|
74
|
74
50330074500 Wire lock ring 15x12001 |
50330074500 |
US $0.92 |
||
|
80
|
80
0770250020 O-ring 25,00x2,00 nbr 702001 |
0770250020 |
US $2.26 |
||
|
81
|
81
0625063055 Ball bearing 6305 jr2 cs362001 |
0625063055 |
US $47.40 |
||
|
82
|
82
50330082000 Cyl.roller Bear.nj206 Et2Xcs462001 |
50330082000 |
US $91.46 |
||
