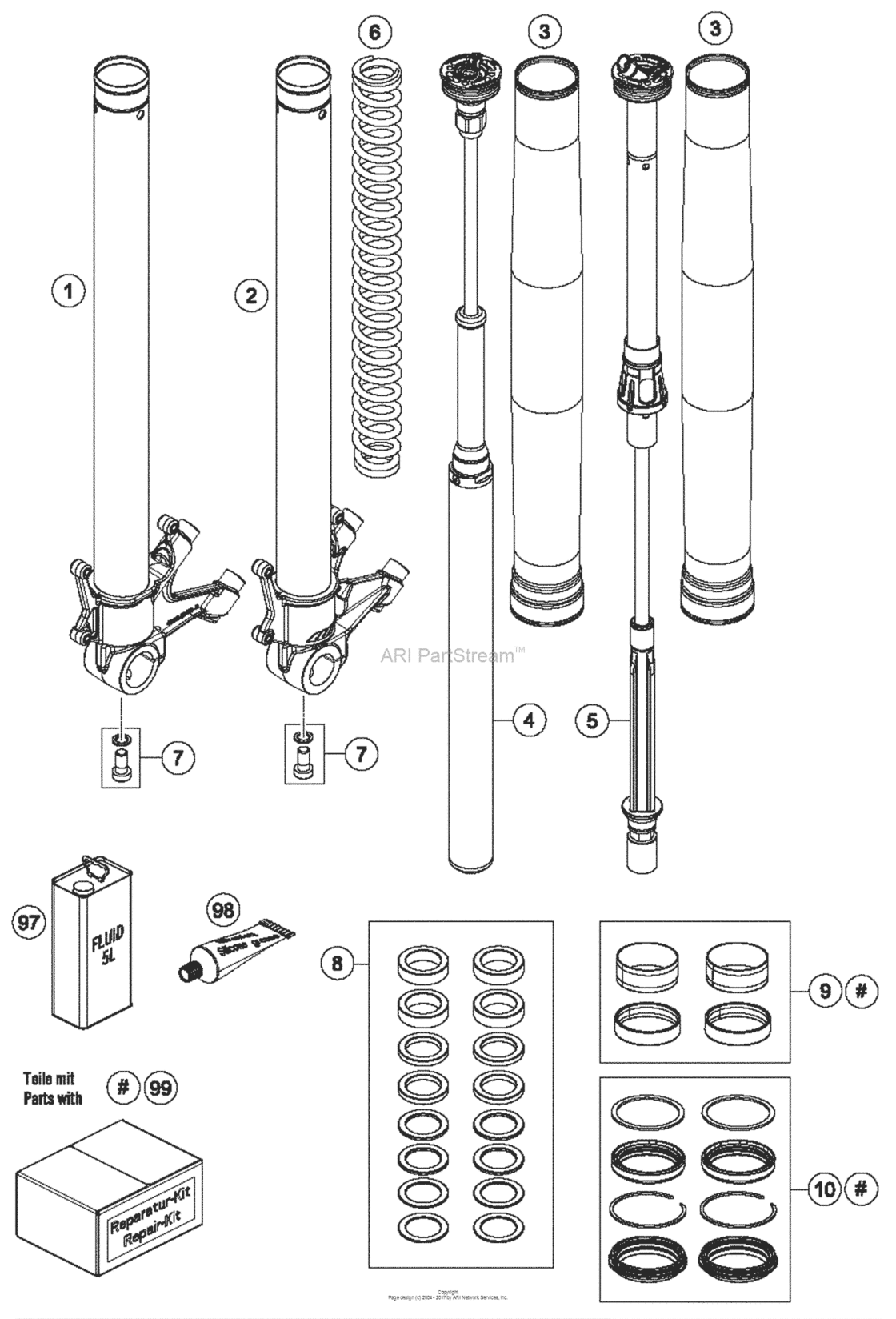

Front Fork Disassembled Diagram KTM 1290 1290 Adventure
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 1290
- Model
- 1290 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48601082S1 Axle Clamp W. Inner Tube R/sTX30 |
48601082S1 |
US $603.25 |
||
|
2
|
2
48601081S1 Axle Clamp W. Inner Tube L/sTX30 |
48601081S1 |
US $603.25 |
||
|
3
|
3
48601099 Outer Tube L=550 D54/d60 3LTX30 |
48601099 |
US $366.72 |
||
|
4
|
4
48SAF1O26R Cardridge Cpl. R/sTX30 |
48SAF1O26R |
US $864.16 |
||
| replacement | |||||
|
4
|
4
48SAF1Q26R Cardridge Cpl. R/sTX30 |
48SAF1Q26R |
US $950.57 |
||
|
5
|
5
48SAF1O26L Cardridge Cpl. L/sTX30 |
48SAF1O26L |
US $864.16 |
||
| replacement | |||||
|
5
|
5
48SAF1P26L Cardridge Cpl. L/sTX30 |
48SAF1P26L |
US $864.16 |
||
|
6
|
6
91410110
Fork Spring
TX30 |
91410110 |
— | ||
|
7
|
7
00501020S1 Ah Screw M10X20 SetTX30 |
00501020S1 |
US $11.31 |
||
|
8
|
8
R14054 Rep. Kit SpacerTX30 |
R14054 |
US $34.51 |
||
|
9
|
9
R14047 Rep. Kit Guide BushingsTX30 |
R14047 |
US $71.57 |
||
|
10
|
10
R14040 Gasket Kit CplTX30 |
R14040 |
US $73.10 |
||
| replacement | |||||
|
10
|
10
RP10048T Gasket Kit CplTX30 |
RP10048T |
US $85.99 |
||
|
97
|
97
48601166S1 Fork Oil Sae4 5LTX30 |
48601166S1 |
US $218.08 |
||
|
98
|
98
T511 Silicone grease f. dust striTX30 |
T511 |
US $132.91 |
||
|
99
|
99
R14037 Rep. Kit Adv2013 |
R14037 |
US $289.77 |
||
