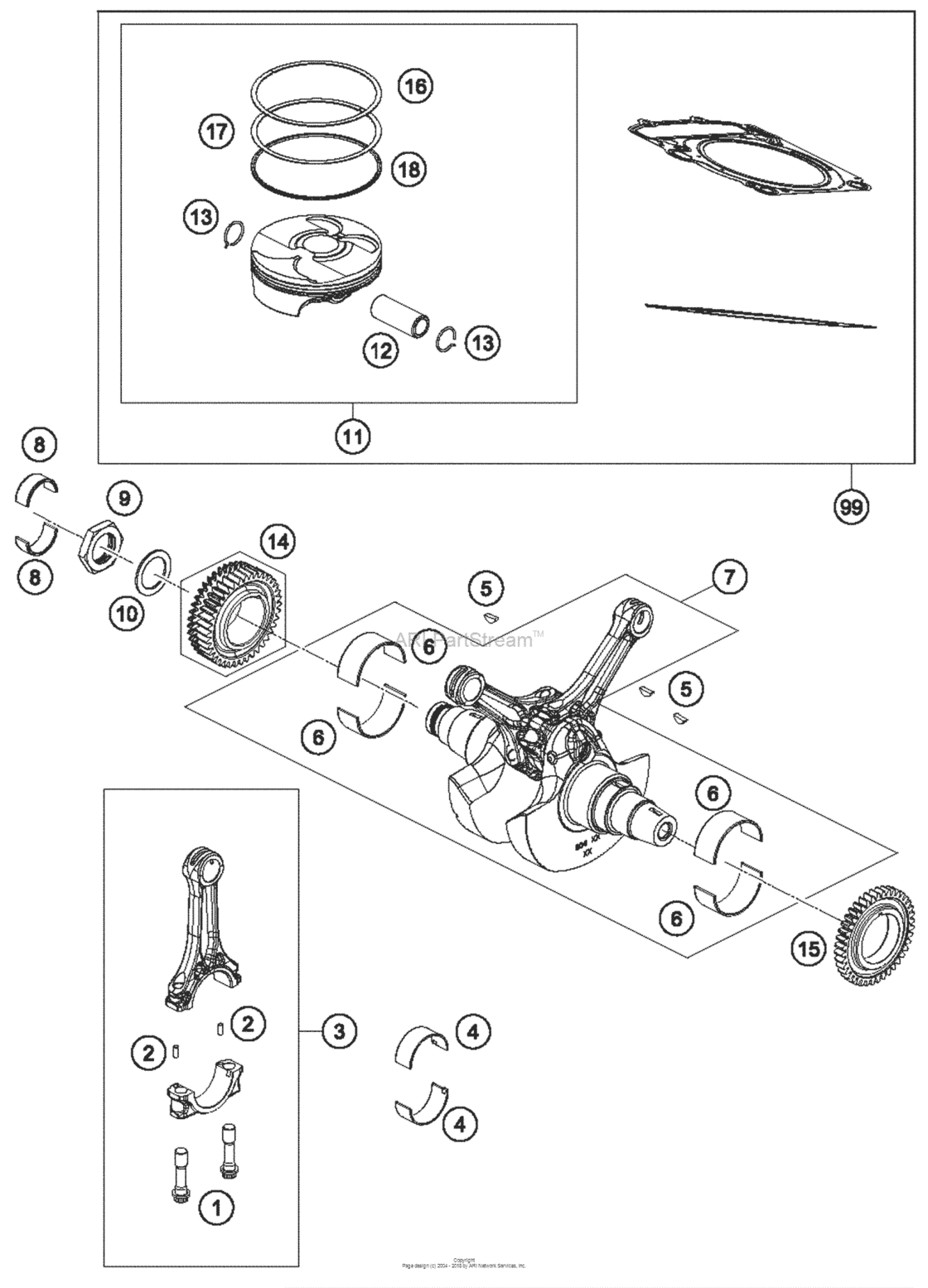

Crankshaft, Piston Diagram KTM 1290 1290 Adventure
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 1290
- Model
- 1290 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61230015100 Connecting Rod Screw Mj10X1TX30 |
61230015100 |
US $23.41 |
||
|
2
|
2
0402040980 Needle Rol.din5402 Nrb 4X9,8TX30 |
0402040980 |
US $1.77 |
||
|
3
|
3
61330013000 Connecting Rod CplTX30 |
61330013000 |
US $245.38 |
||
|
4
|
4
612300151101 Split bear. bush redAs Required |
612300151101 |
US $38.17 |
||
|
4
|
4
612300151102 Split bear. bush blueAs Required |
612300151102 |
US $39.25 |
||
|
4
|
4
612300151103 Split bear. bush yellowAs Required |
612300151103 |
US $30.24 |
||
|
5
|
5
0888040050 Woodruff key din6888 4x5x13As Required |
0888040050 |
US $3.43 |
||
|
6
|
6
612300820001 Split bear. bush red 08As Required |
612300820001 |
US $34.54 |
||
|
6
|
6
612300820002 Split bear. bush blue 08As Required |
612300820002 |
US $36.24 |
||
|
6
|
6
612300820003 Split bear. bush yellow 08As Required |
612300820003 |
US $39.98 |
||
|
7
|
7
60430018000 Crankshaft CplAs Required |
60430018000 |
US $1,470.13 |
||
|
8
|
8
60030026010 Bushing bowl 28x32x13 03As Required |
60030026010 |
US $15.35 |
||
|
9
|
9
60032009050 Hh-nut m33x1,5 l/s ws46 03As Required |
60032009050 |
US $14.91 |
||
|
10
|
10
60032009040 Washer 33,2x46x2 03As Required |
60032009040 |
US $2.50 |
||
|
11
|
11
61330007200I
Piston Cpl. D=108 Gr. I
As Required |
61330007200I |
— | ||
|
11
|
11
61330007200II
Piston Cpl. D=108 Gr. Ii
As Required |
61330007200II |
— | ||
|
12
|
12
61330033000 Piston PinAs Required |
61330033000 |
US $81.38 |
||
|
13
|
13
75030074000 Circlip lc4 07As Required |
75030074000 |
US $12.38 |
||
|
14
|
14
61330055000 Primary GearAs Required |
61330055000 |
US $181.63 |
||
| replacement | |||||
|
14
|
14
61230055000 Primary gearAs Required |
61230055000 |
US $81.43 |
||
|
15
|
15
61230056000 Drive wheel balancer shaft 08As Required |
61230056000 |
US $61.10 |
||
|
16
|
16
61330030000 Rectangular RingAs Required |
61330030000 |
US $46.48 |
||
|
17
|
17
61330031000 Tapered Comp. Piston RingAs Required |
61330031000 |
US $42.50 |
||
|
18
|
18
61330032100 Oil Scraper Ring D108As Required |
61330032100 |
US $74.53 |
||
|
