Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0912060255 Ah screw din0912-m 6x25 10.9 As Required	0912060255	US $0.65
2	2 61236099100 Valve cover gasket set As Required	61236099100	—
6	6 6123605210033 Valve cover front 09 As Required	6123605210033	US $31.47
7	7 60036052020 Collar screw m 6 ws=10 03 As Required	60036052020	US $2.09
8	8 61336075100 Spark Plug Shaft As Required	61336075100	US $16.64
9	9 0770298178 O-ring 29,87x1,78 viton As Required	0770298178	US $1.46
10	10 61236079000 Cylinder head screw 08 As Required	61236079000	US $15.79
11	11 61236079050 Washer 11,1x20x3 08 As Required	61236079050	US $5.34
12	12 61336044000 Intake Boot As Required	61336044000	US $35.34
13	13 61336048000 Hose Clamp Gemi 75 As Required	61336048000	US $14.20
15	15 60030063050 Oil jet 50 05 As Required	60030063050	US $7.92
16	16 61238091000 Oil Pressure Switch Bitron As Required	61238091000	US $25.72
17	17 0603061001 Cu-Seal Ring Din7603-6X10X1 As Required	0603061001	US $2.64
18	18 0025060106 Hh collar screw m6x10 tx30 TX30	0025060106	US $1.58
19	19 61330036085 Cylinder Head Gasket 0,85 TX30	61330036085	US $68.39
20	20 0770080015 O-ring 8,00x1,5 nbr 70 TX30	0770080015	US $0.44
21	21 0835080165 Stud m 8x16 10.9 TX30	0835080165	US $2.16
22	22 6043602000024 Cylinder Head Front Cpl TX30	6043602000024	US $839.41
23	23 0402050980 Needle roller din5402 5x9,8 TX30	0402050980	US $0.80
24	24 0984080305 Ah screw din7984-m 8x30 10.9 TX30	0984080305	US $0.58
25	25 61236026001 Valve guide exhaust 08 TX30	61236026001	US $51.41
26	26 61236025001 Valve giude intake 6mm TX30	61236025001	US $19.41
28	28 60011252000 Temperat.-sensor water lc8 02 TX30	60011252000	US $38.01
29	29 0125060003 Washer Din0125-A 6,4 TX30	0125060003	US $0.37
30	30 61230045000 Cap Nut M6 Stainless Steel TX30	61230045000	US $0.90
31	31 0770100020 O-ring 10,00x2,00 silcone TX30	0770100020	US $2.02
32	32 07700900151 O-Ring 9X1,5 V80 Sh TX30	07700900151	US $1.41
33	33 61235019100 Water connection cpl. TX30	61235019100	US $19.55
34	34 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
35	35 69005005100 Exhaust pipe flange gasket TX30	69005005100	US $17.65
36	36 77336056095 Screw plug TX30	77336056095	US $6.66
42	42 59036006090 Vent screw m6x10 cpl. TX30	59036006090	US $3.72
43	43 0770050012 O-ring 5,0x1,2 nbr 70 TX30	0770050012	US $0.85
45	45 61336074100 Insert Spark-Plug Shaft TX30	61336074100	US $19.87
46	46 60036023200 Vacuum Connection M6/0.75Mm TX30	60036023200	US $10.15
99	99 61330097000 Gasket Set Cylinder+Head F+R TX30	61330097000	US $345.63

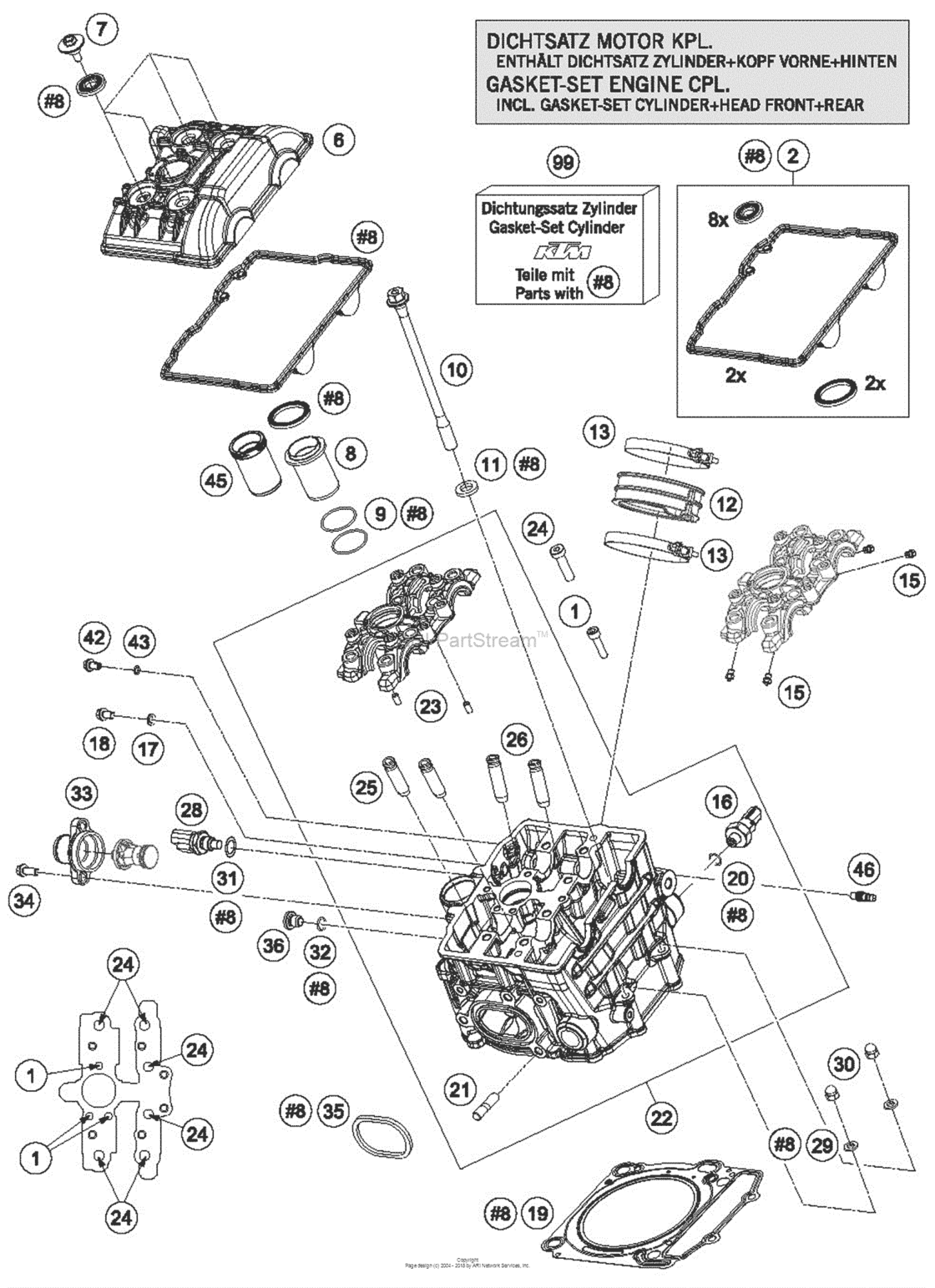

Cylinder Head Front Diagram KTM 1290 1290 Adventure US/EU 18077706-939287

Cylinder Head Front Diagram KTM 1290 1290 Adventure US/EU 18077706-939287
