Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 76039006000 Stick Coil TX40	76039006000	US $86.55
2	2 60439093000 Spark Plug M12X1.25 TX40	60439093000	US $69.21
3	3 60439094000 Spark Plug M10X1 TX40	60439094000	US $84.49
4	4 60339035000 Special Screw M5X16 TX40	60339035000	US $3.43
5	5 59039034000 Pulser coil kokusan 4k3-a/b TX40	59039034000	US $114.99
8	8 60439005000 Rotor Cpl TX40	60439005000	US $601.68
9	9 60039040020 Cable support generator 03 TX40	60039040020	US $2.62
10	10 0025060256 Hh collar screw m6x25 tx30 TX30	0025060256	US $2.45
11	11 61230040000 Ignition cover gasket 08 TX30	61230040000	US $29.14
	replacement
11	11 61230040100 Gasket Generatorcover TX30	61230040100	US $35.34
12	12 49030090000 Dowel 9,8 x 7 x 10 TX30	49030090000	US $5.54
	replacement
12	12 49030090100 Dowel 9,8 X7X10 TX30	49030090100	US $2.60
13	13 60339004000 Stator TX30	60339004000	US $241.38
14	14 6023010214441 Ignition Cover With Bearings TX30	6023010214441	US $208.61
15	15 07700240251 O-ring 24x2,5 viton TX30	07700240251	US $3.96
16	16 6003009400030 Screw plug m24x1,5 pa 6.6 TX30	6003009400030	US $3.16
18	18 60339003000 Special Screw M12X1,5 Ws15 TX30	60339003000	US $24.82
20	20 0025060306 Hh collar screw m6x30 tx30 TX30	0025060306	US $3.96
21	21 0025060356 Hh collar screw m6x35 tx30 TX30	0025060356	US $6.15

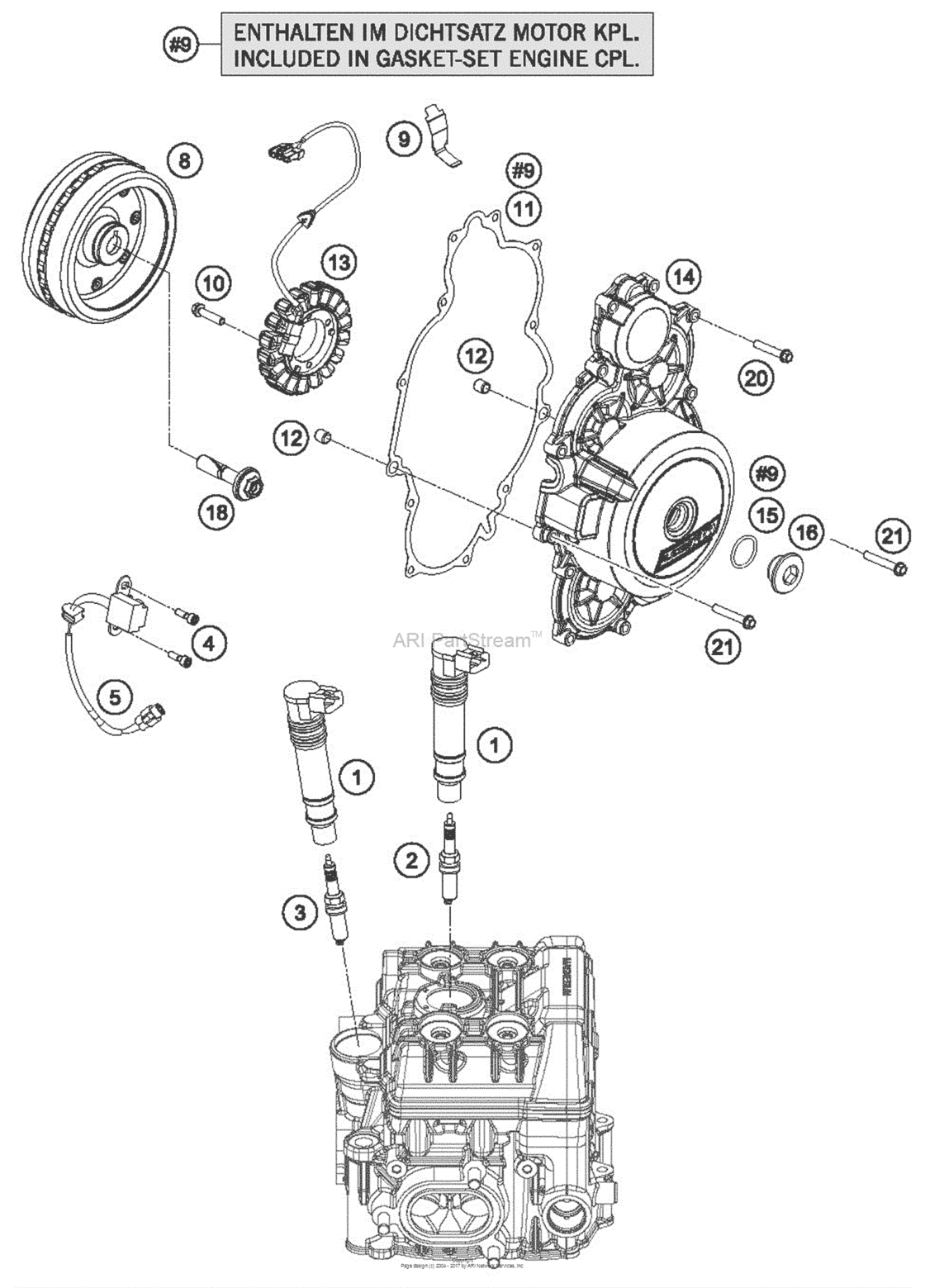

Ignition System Diagram KTM 1290 1290 Adventure US/EU 18077710-939287
