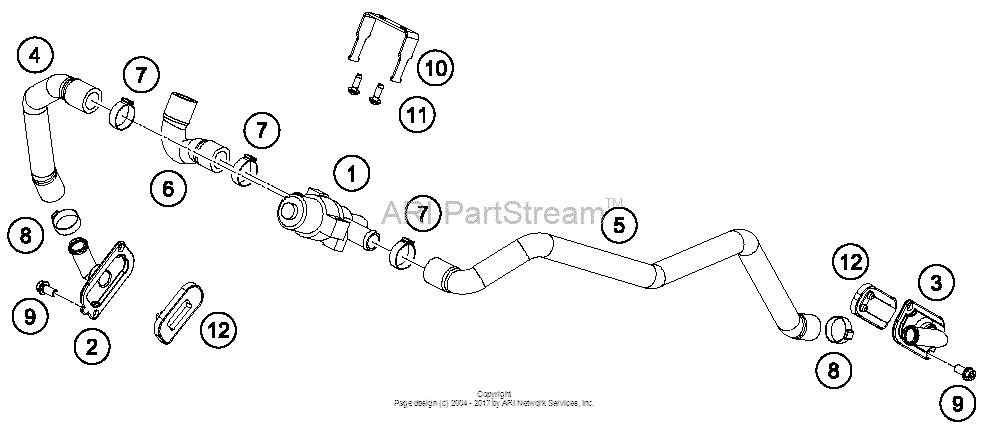

Secondary Air System Sas Diagram KTM 1290 1290 Adventure
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 1290
- Model
- 1290 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61005026000 Control valve sas 05As Required |
61005026000 |
US $139.20 |
||
|
2
|
2
61205122000 Sas-FlangeAs Required |
61205122000 |
US $11.39 |
||
|
3
|
3
61205032000 Sls-flangeAs Required |
61205032000 |
US $15.62 |
||
|
4
|
4
61305035021 Sas Hose Cylinder FrontAs Required |
61305035021 |
US $17.10 |
||
|
5
|
5
61305035022 Sas Hose Cylinder RearAs Required |
61305035022 |
US $28.20 |
||
|
6
|
6
61305035023 Sas Hose - AirboxAs Required |
61305035023 |
US $14.08 |
||
|
7
|
7
00050226706 Variable one-ear clamp 22,6mmAs Required |
00050226706 |
US $2.09 |
||
|
8
|
8
00050220706 Variable One-Ear Clamp 22,0MmAs Required |
00050220706 |
US $1.87 |
||
|
9
|
9
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
||
|
10
|
10
61305031000 Retaining Bracket SlsTX30 |
61305031000 |
US $23.26 |
||
|
11
|
11
0081050161 Ejot pt screw k50x16 1451TX30 |
0081050161 |
US $0.66 |
||
|
12
|
12
60005026000 Sls-valve 03TX30 |
60005026000 |
US $20.60 |
