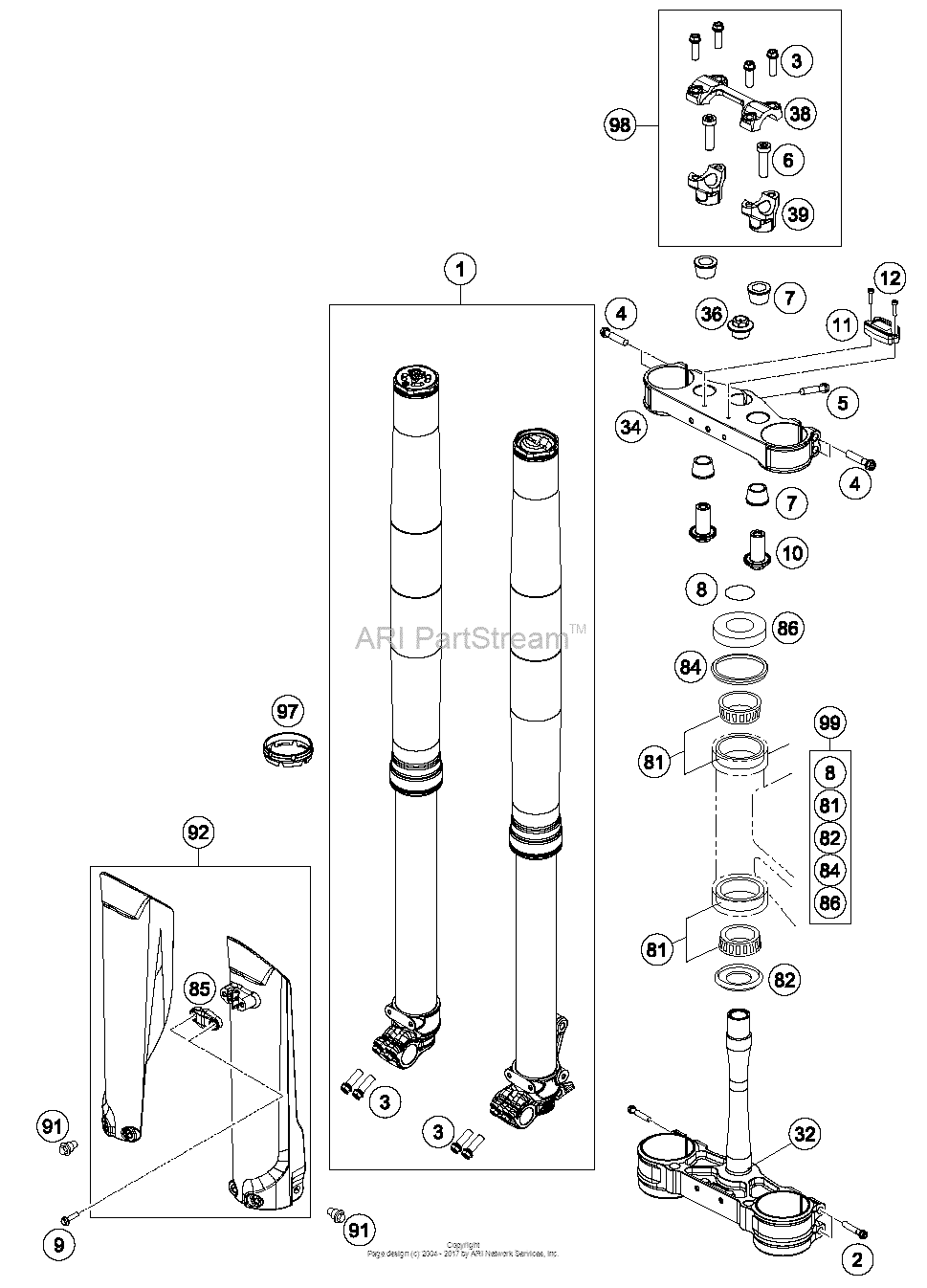

Front Fork, Triple Clamp Diagram KTM 150 150 SX
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34188Q0101 Fork 125 Sx 17TX40 |
34188Q0101 |
US $3,290.25 |
||
|
2
|
2
0025080506 Hh collar screw m8x50 tx40TX40 |
0025080506 |
US $2.06 |
||
|
3
|
3
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
4
|
4
0025080406 Hh collar screw m8x40 tx40TX40 |
0025080406 |
US $2.62 |
||
|
5
|
5
0015080256S Hh collar screw m8x25 ws=10 06TX40 |
0015080256S |
US $2.11 |
||
|
6
|
6
0032100356S Ah-Collar Screw M10X35 Isa45TX40 |
0032100356S |
US $3.57 |
||
|
7
|
7
83001040000 Rubber bushTX40 |
83001040000 |
US $3.83 |
||
|
8
|
8
0770025035 O-ring 25x3,55 nbr70 05TX40 |
0770025035 |
US $0.53 |
||
|
9
|
9
0017060206 Screw F. Plastic K60X20Al Sw6TX40 |
0017060206 |
US $2.89 |
||
|
10
|
10
79001037034 Handlebar Support Lower PartTX40 |
79001037034 |
US $55.45 |
||
|
11
|
11
78112020050 Hour MeterTX40 |
78112020050 |
US $90.25 |
||
|
12
|
12
0912040163 Ah screw din0912-m 4x16TX40 |
0912040163 |
US $1 |
||
|
32
|
32
7900103202230 Lower Triple Clamp Cpl. 16TX40 |
7900103202230 |
US $438.14 |
||
|
34
|
34
7900113402230 Upper Triple Clamp X=22Mm2017 |
7900113402230 |
US $227.31 |
||
|
36
|
36
70009082000 Axlescrew M20X1.52017 |
70009082000 |
US $10.85 |
||
|
38
|
38
79001038000 Handlebar Clamp 28Mm2017 |
79001038000 |
US $64.21 |
||
|
39
|
39
79001039136 Handlebar Support D28Mm-H36Mm2017 |
79001039136 |
US $56.66 |
||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 062017 |
54201081100 |
US $53.18 |
||
|
82
|
82
77701084000 O-Ring Support W. Sealing Lip2017 |
77701084000 |
US $21.15 |
||
|
84
|
84
54601184000 Stearing head gasket top2017 |
54601184000 |
US $7.74 |
||
|
85
|
85
77701085100EB Clamp For Brakehose2017 |
77701085100EB |
US $3.91 |
||
|
86
|
86
78101086000 Steering Head Cover2017 |
78101086000 |
US $5.08 |
||
|
91
|
91
59001092050 Special Screw M6X12,5 Ws=82017 |
59001092050 |
US $2.35 |
||
|
92
|
92
77701094100EB Fork Protection Set2017 |
77701094100EB |
US $37.49 |
||
|
97
|
97
48600698 Fork protection ring 082017 |
48600698 |
US $9.57 |
||
|
98
|
98
00050000929 Handlebar Support Kit D28/h36As Required |
00050000929 |
US $136.71 |
||
|
99
|
99
00050000930 Stearing Head Rep. Kit 06-1506-15, As Required |
00050000930 |
US $98.18 |
